40PUA12-CAD

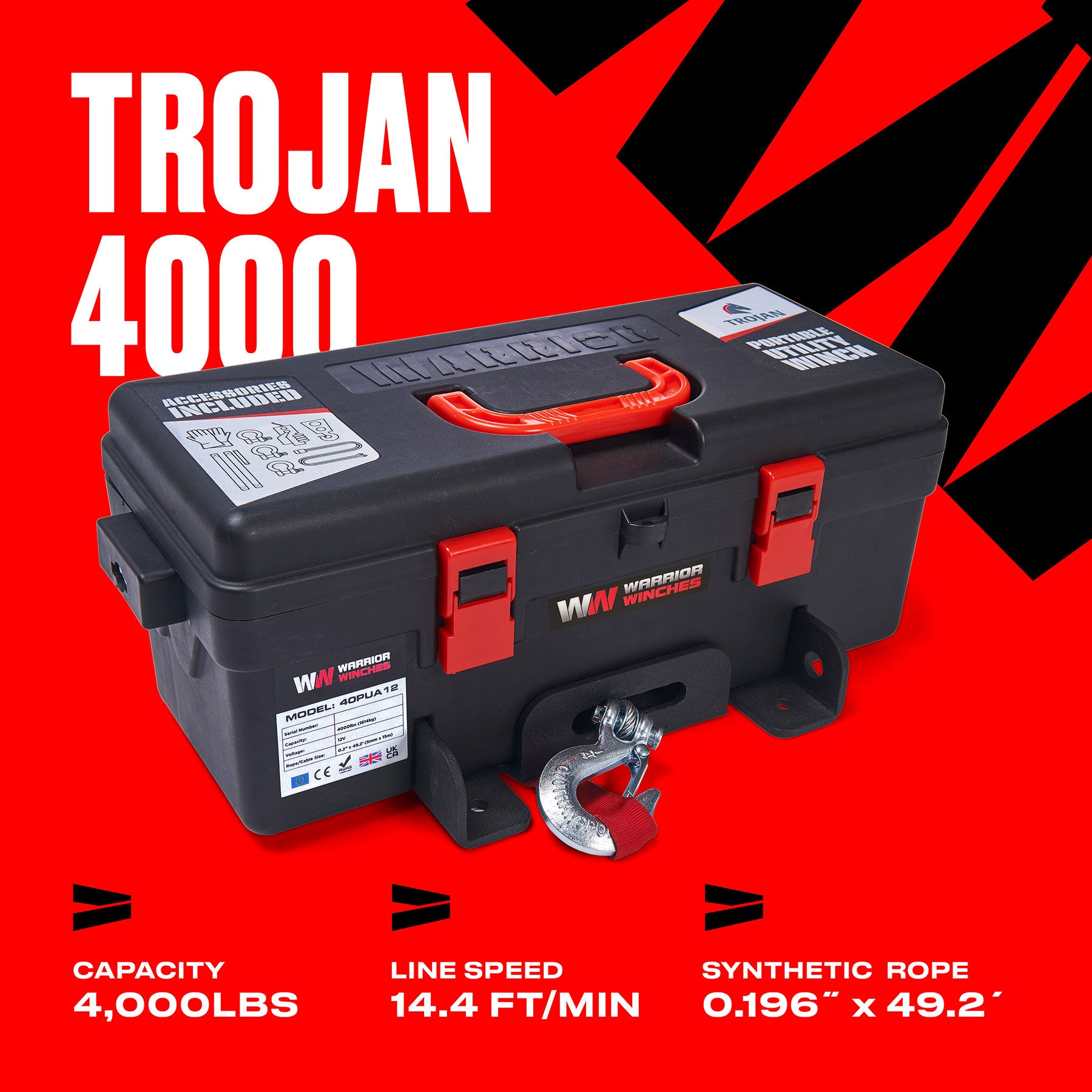

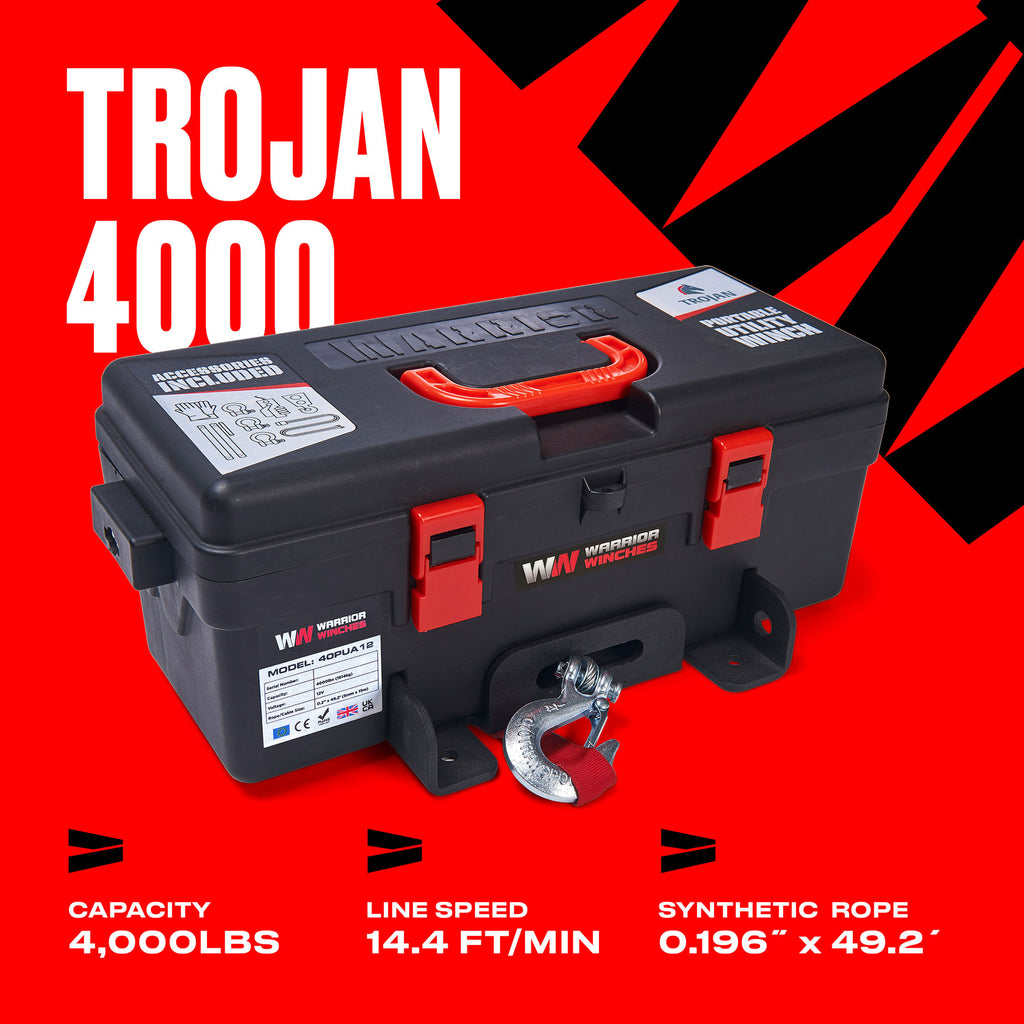

Trojan 4,000lb 12v Portable Utility Winch - Synthetic Rope

Sale price$399.99
Sold out

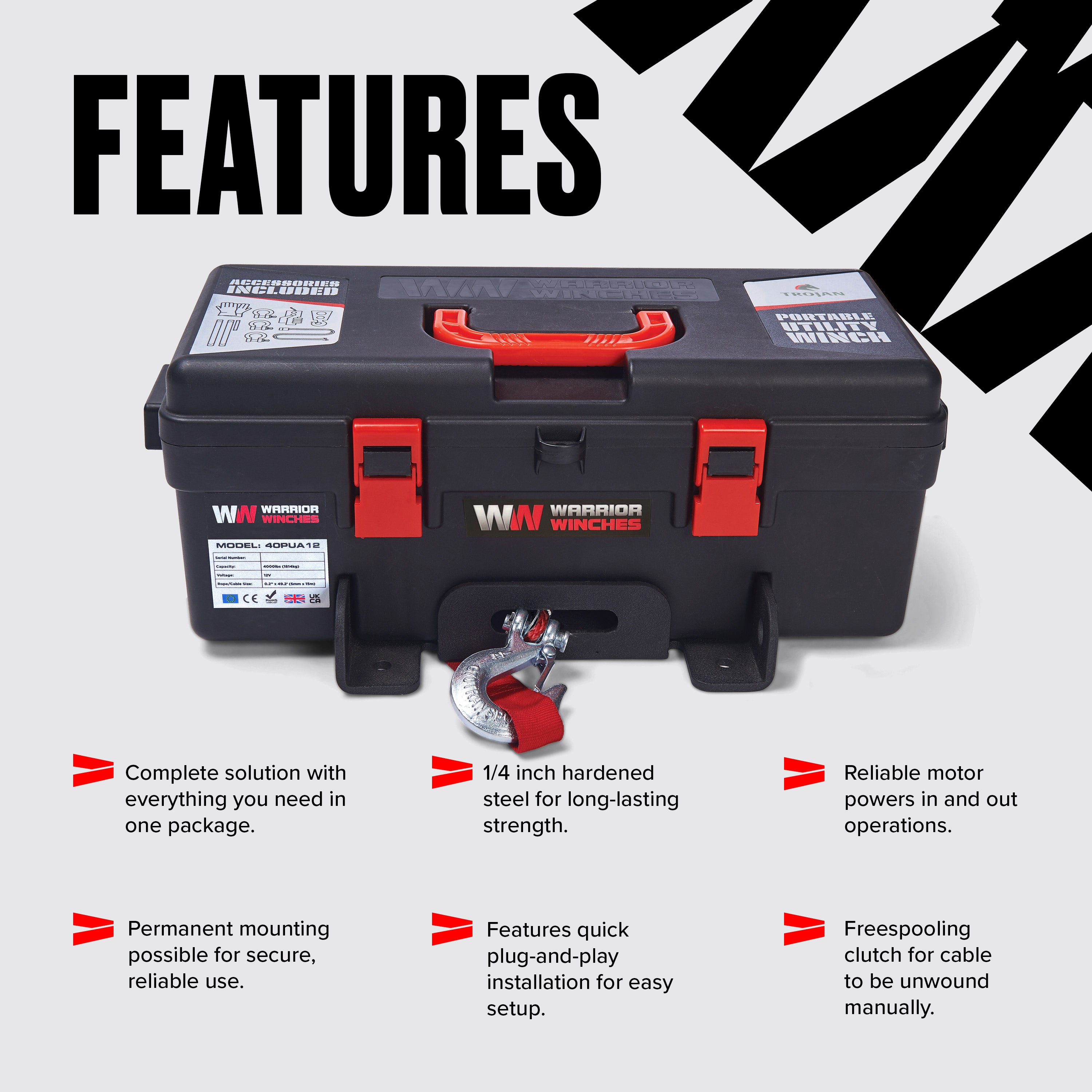

Features

  • Complete Winching Solution: All-in-one package for convenience and ease of use.
  • Durable Hardened Steel Plate: Built with 1/4-inch thick steel for added strength and protection.

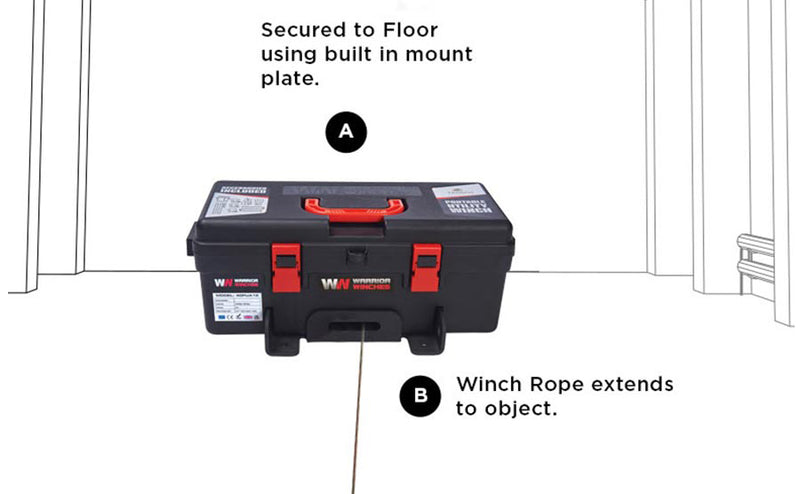

  • Permanent Mounting: Can be securely mounted for long-term use.
  • Plug and Play Functionality: Quick and easy setup with minimal installation required.
  • 4000 lb Pulling Power: Delivers reliable and powerful performance for tough jobs.

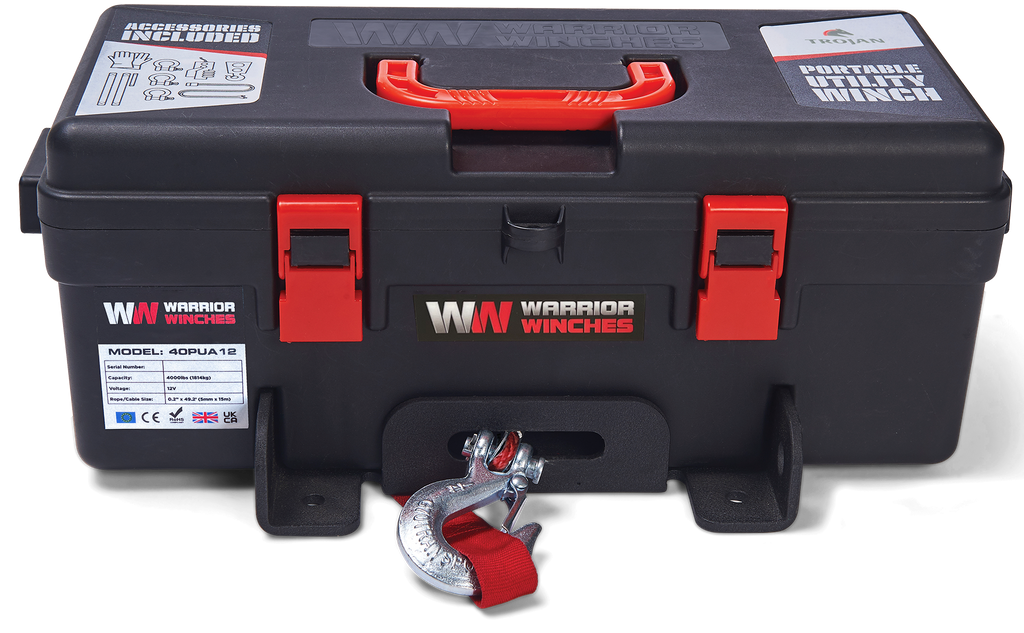

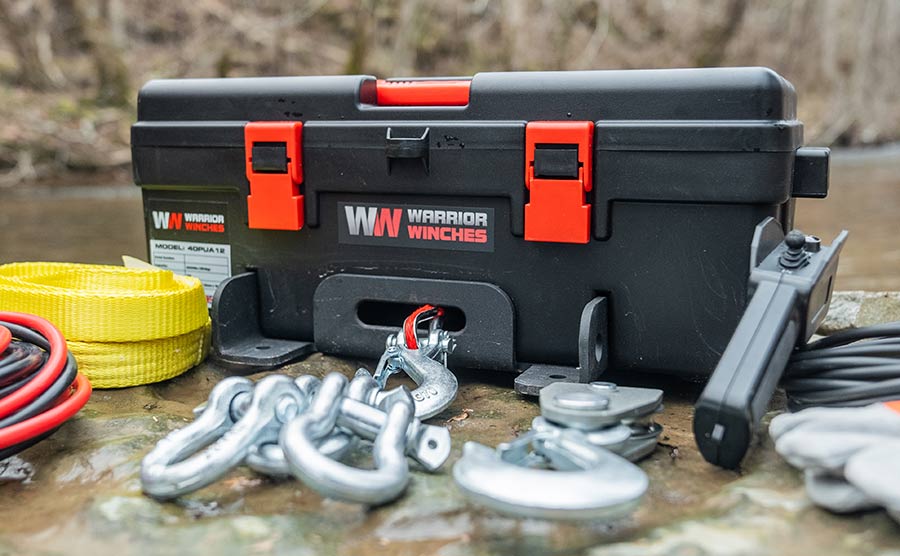

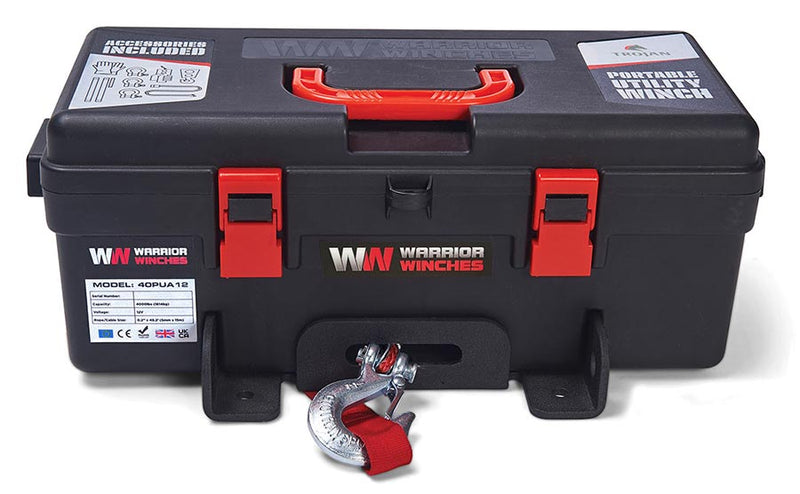

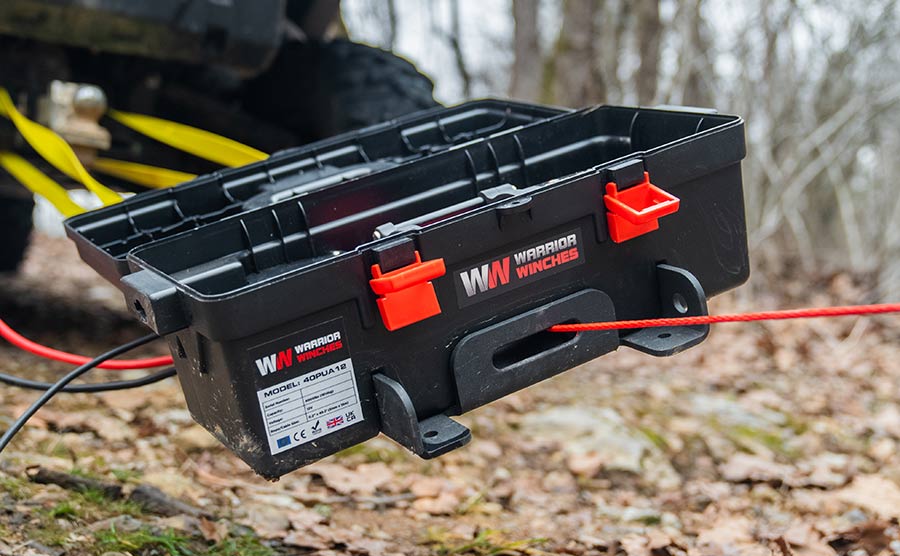

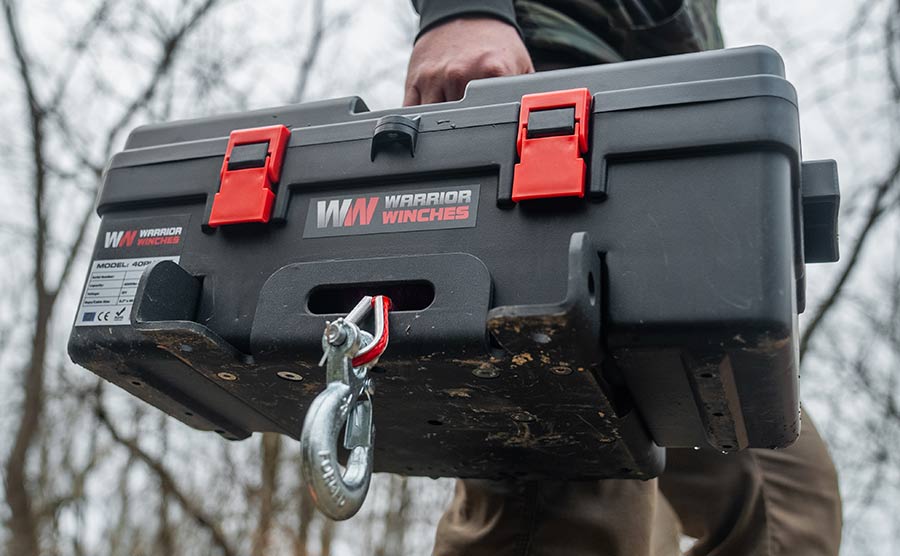

Trojan Portable Utility Winch: Heavy-Duty Power, Anytime, Anywhere

When you need serious pulling power in a portable, hassle-free package, the Trojan Portable Utility Winch delivers. With a 4,000 lb rated line pull, this all-in-one winch kit is built for strength, convenience, and versatility—perfect for recovery, hauling, and everyday tough jobs.

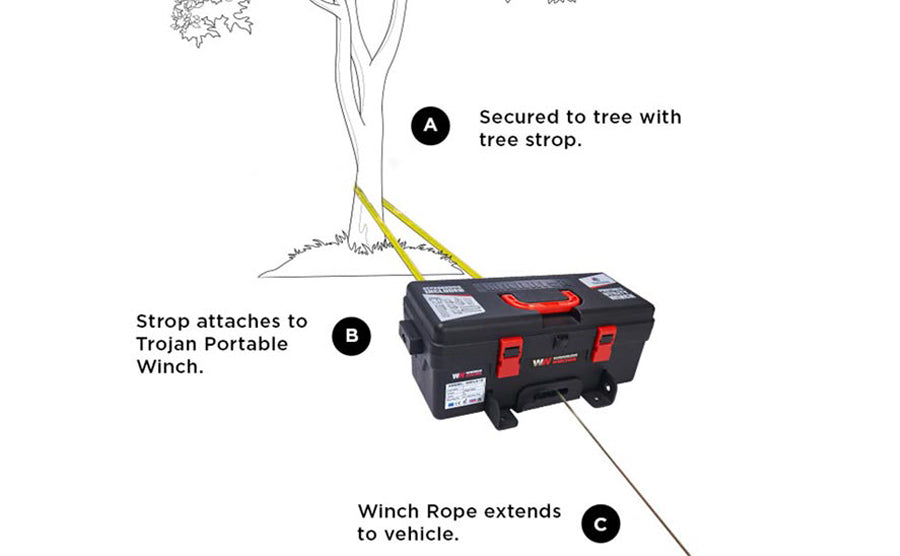

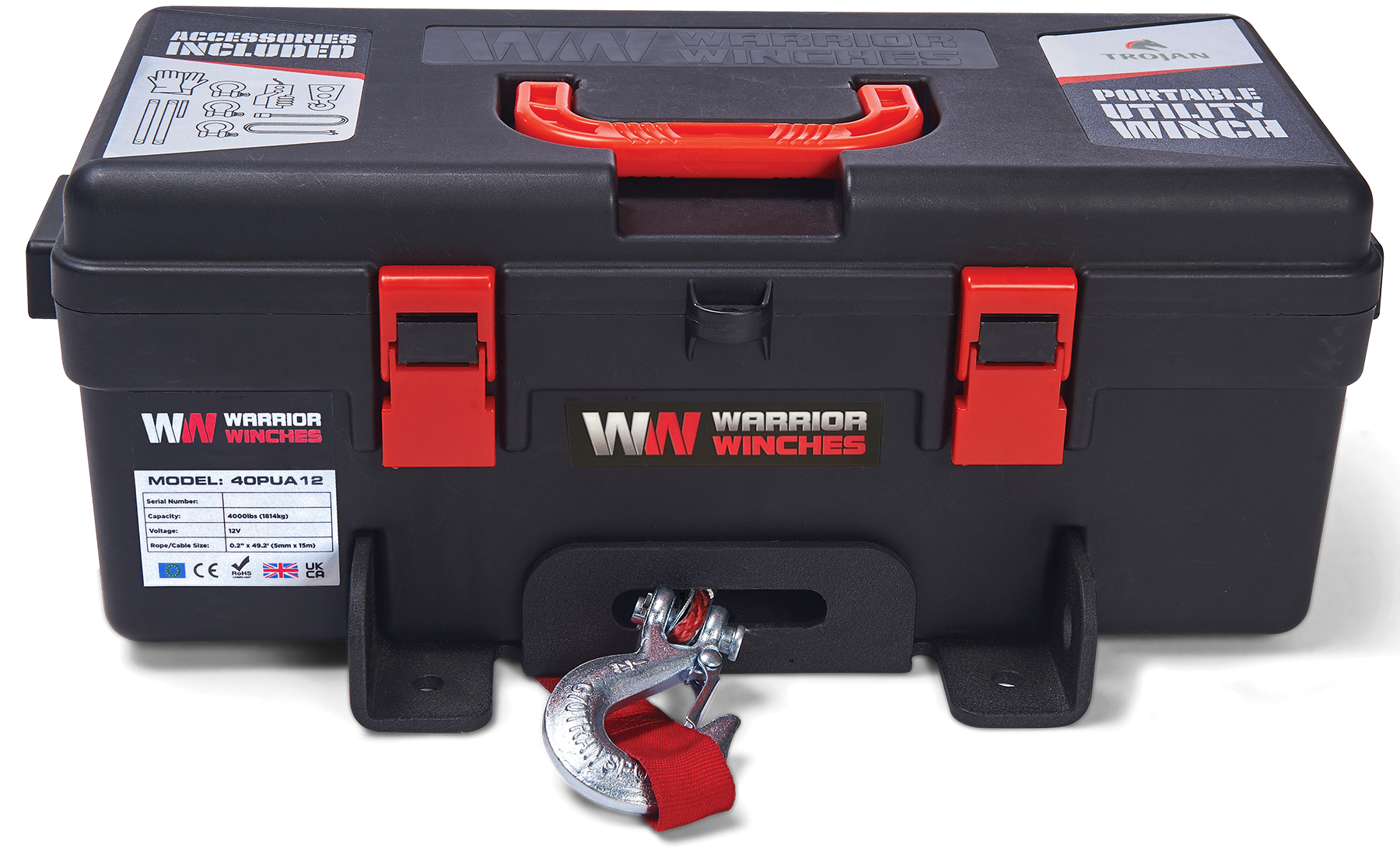

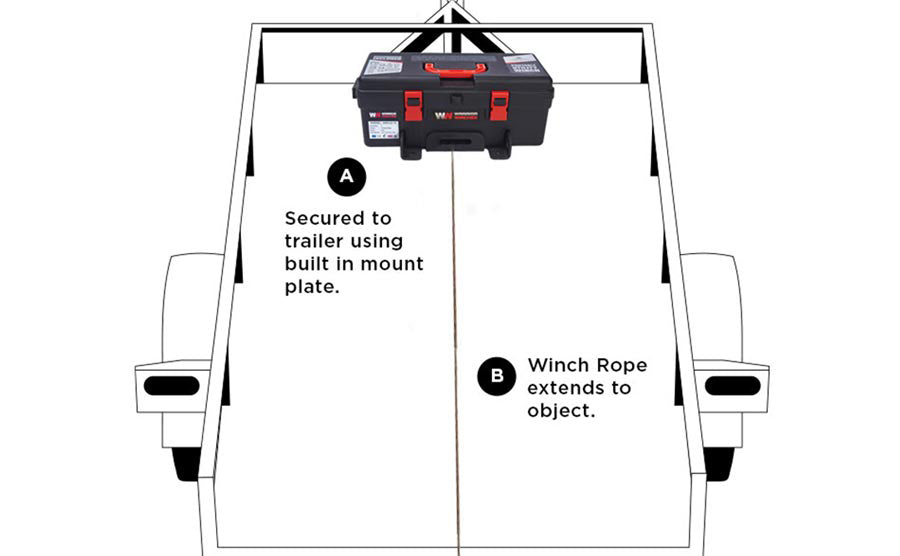

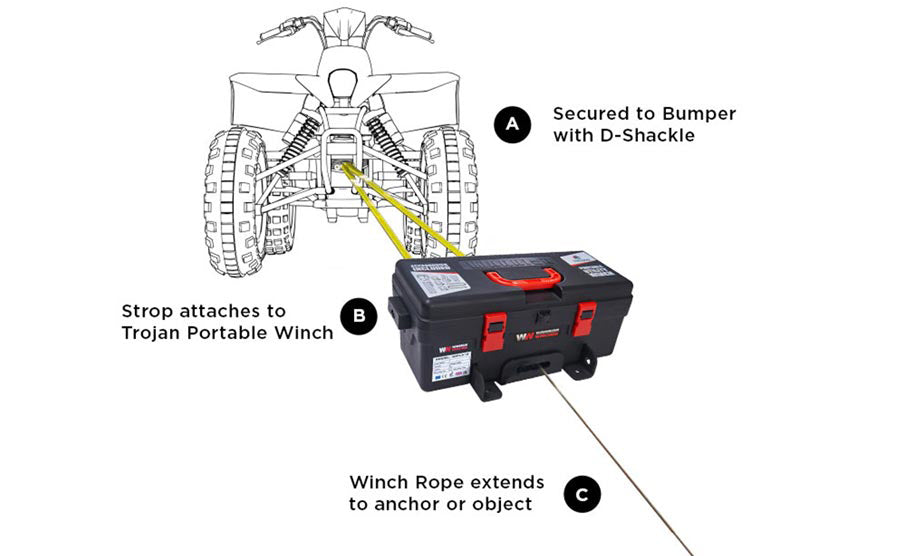

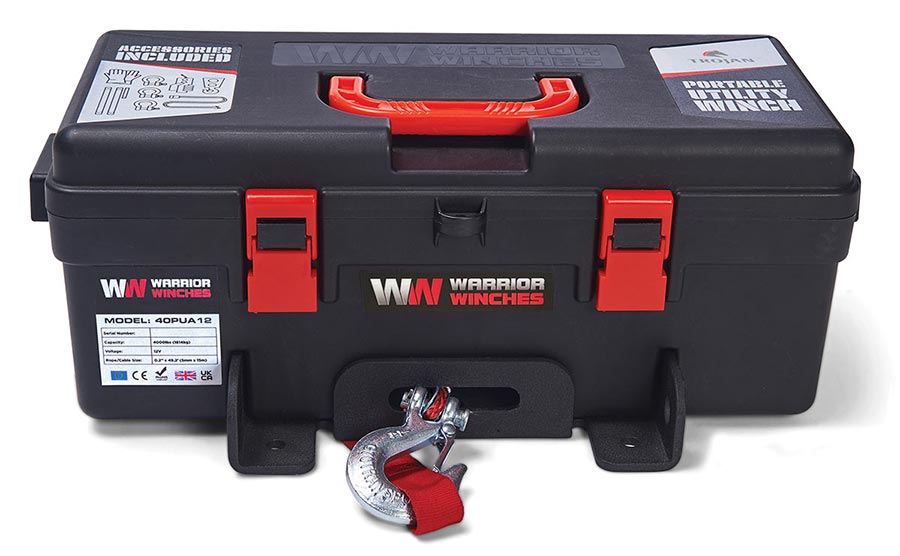

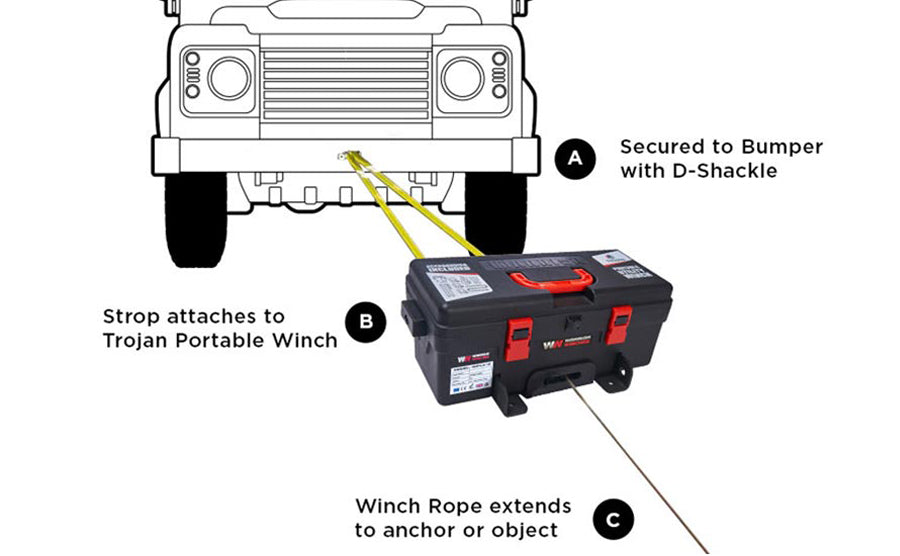

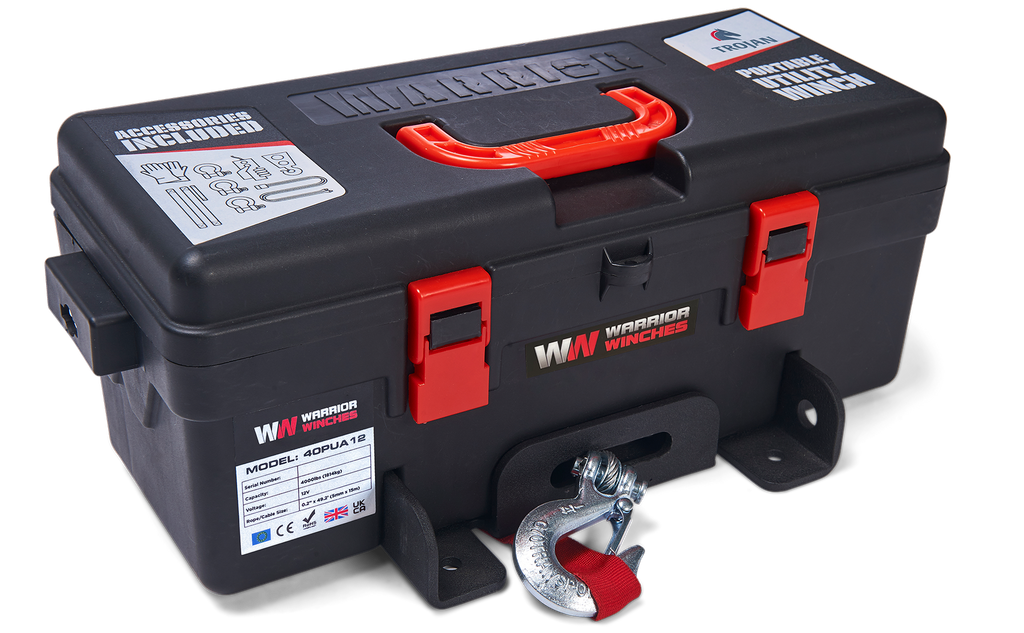

Housed in a rugged, easy-to-carry composite toolbox and mounted on a durable powder-coated platform, the Trojan is ready when you are. No installation? No problem. This winch requires no mounting or setup, so you can take it anywhere and get to work fast. Need a more permanent solution? It can also be securely mounted to a trailer or worksite for dependable, everyday use.

Easy to store, transport, and deploy, the Trojan Portable Utility Winch gives you power on demand—whenever and wherever you need it. No limits. No hassle. Just pure performance.

Rated Line Pull4000 lbs
Motor Type12v: Input: 2.4kW / 3.2hp; Output: 1kW / 1.3hp
ClutchManual
Gearing166:1
Gearing SystemPlanetary
Braking ActionAuto in the drum
Drum Size (Diameter x Length)1.98 x 3.23 in
ControlsWired Remote
Cable MaterialSynthetic
Cable Size (Diameter x Length)49.22ft x 0.2 in
FairleadBuilt In

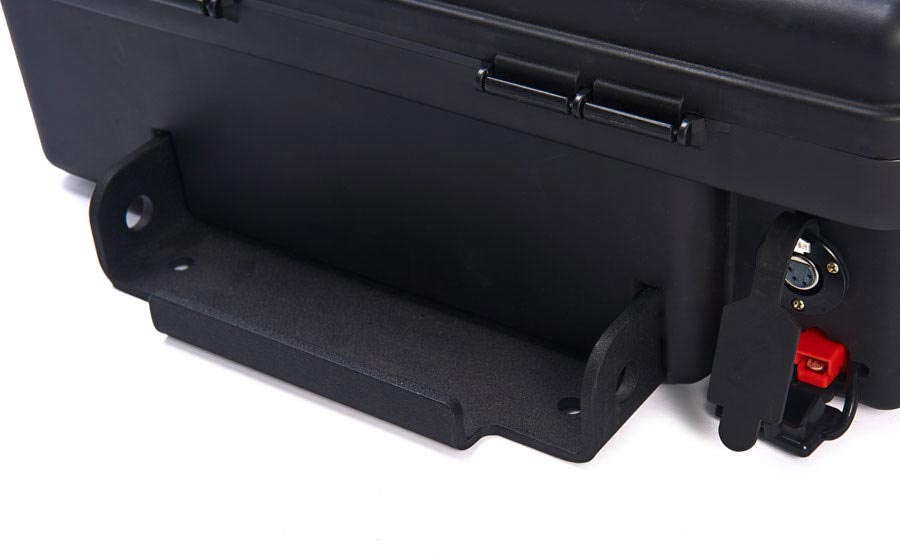

Mounting Pattern8.3 × 9.2 in (210mm × 234 mm)

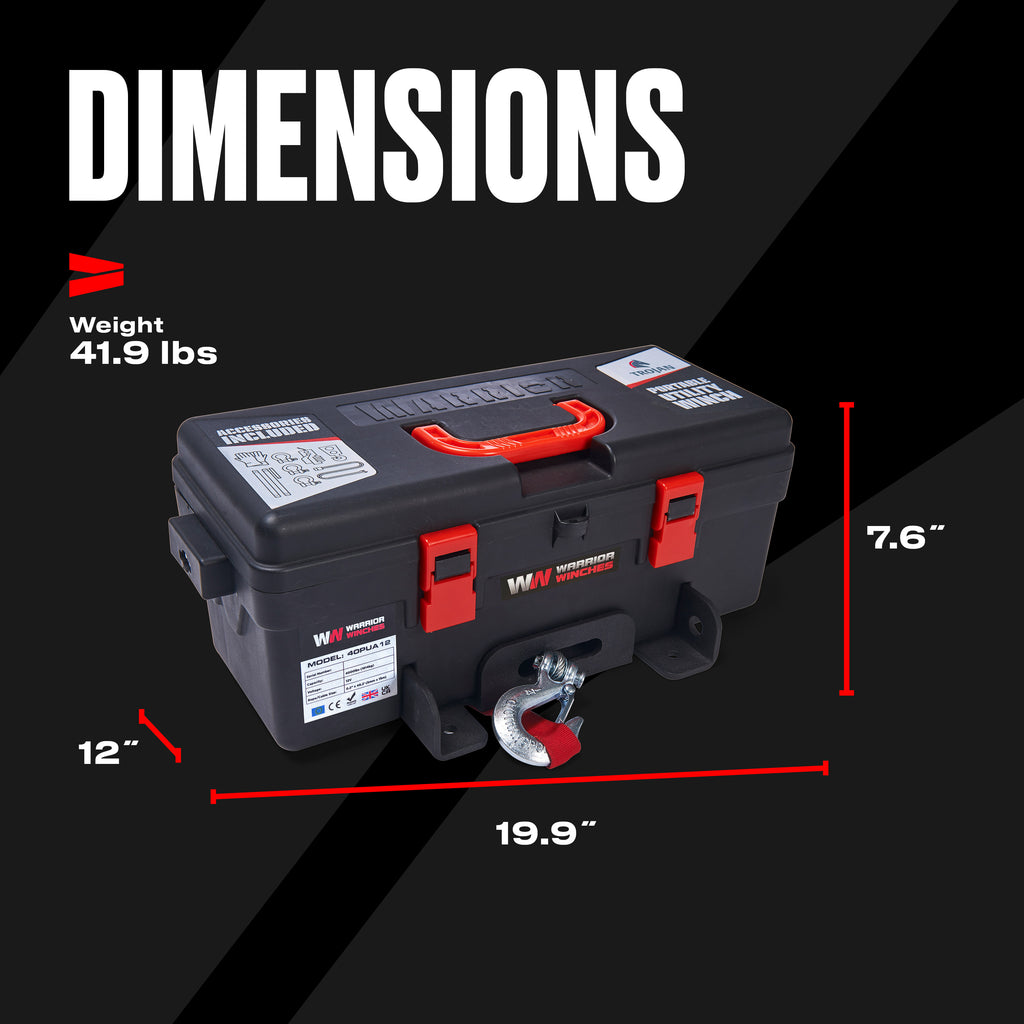

Dimensions19.92 x 7.56 x 11.97 in
Weight42 lbs
Waterproof Rating (IP)67
CertificationCE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 4000 (1814) 8.5 (2.6)
2 3351 (1520) 18.7 (5.7)
3 2883 (1307) 29.8 (9.1)
4 2530 (1147) 42.0 (12.8)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 14.4 (4.4) 28
1000 (454) 9.8 (3.0) 80
2500 (1135) 7.2 (2.2) 150
4000 (1814) 4.9 (1.5) 190

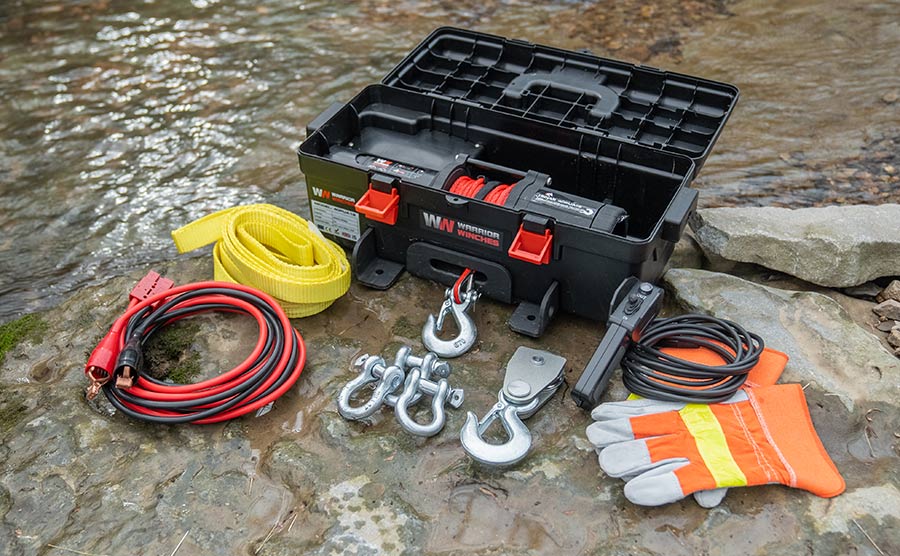

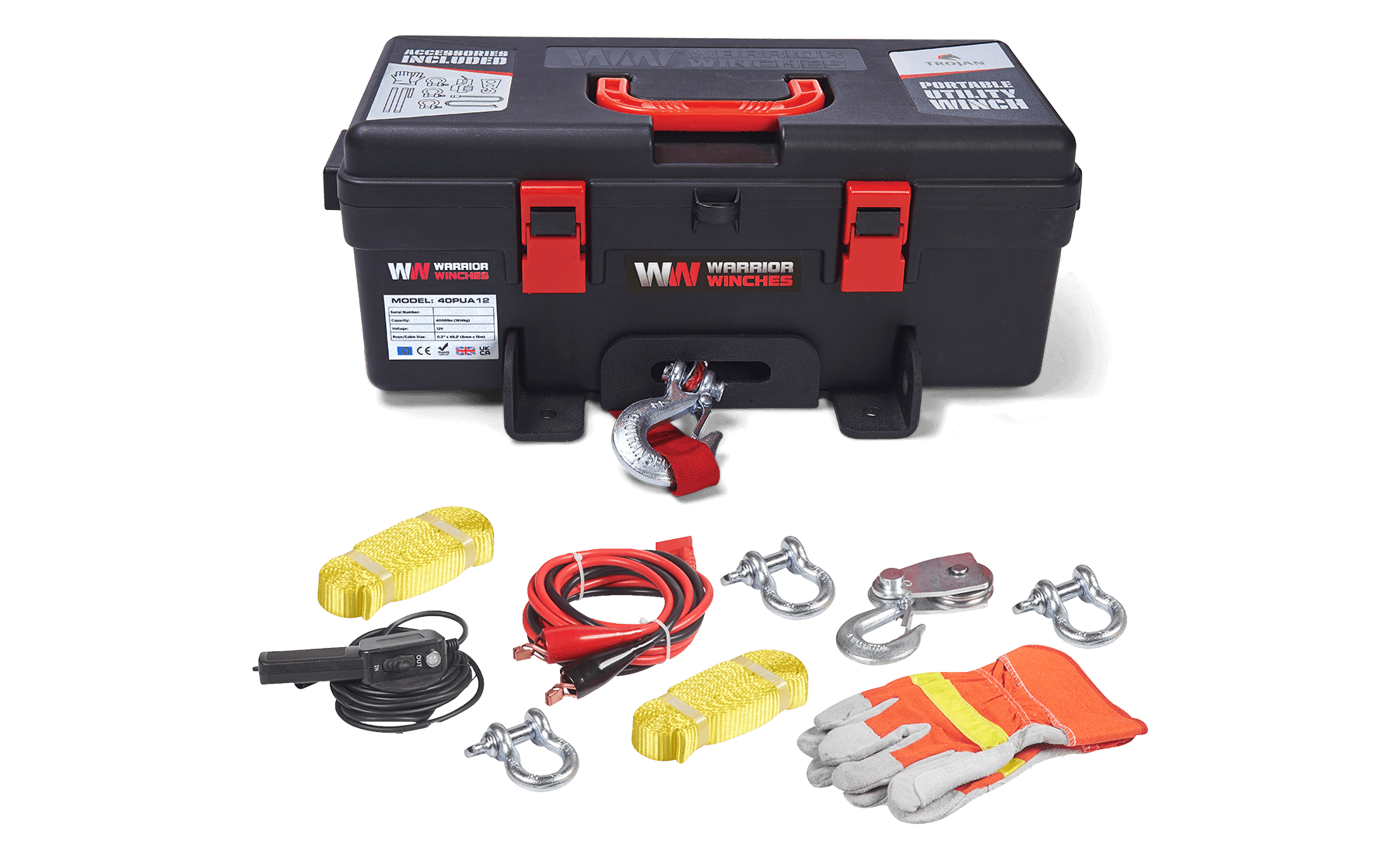

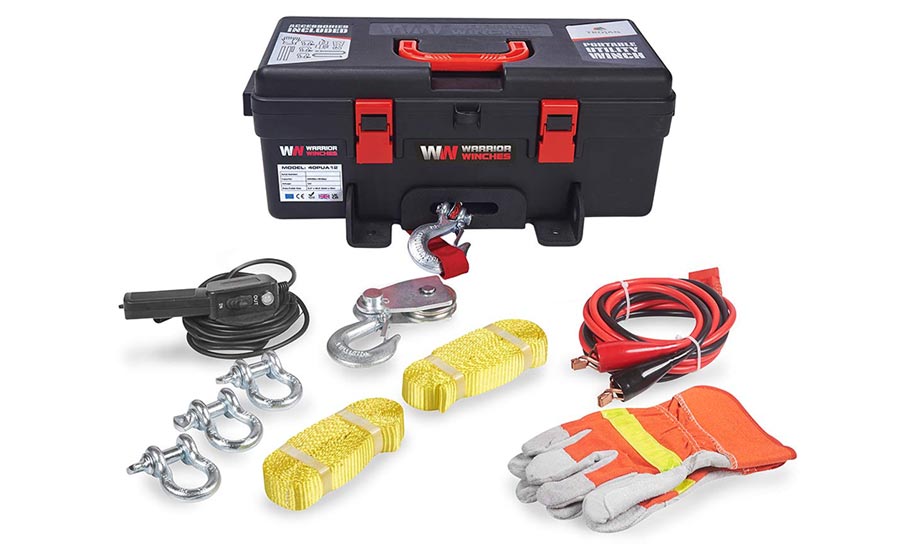

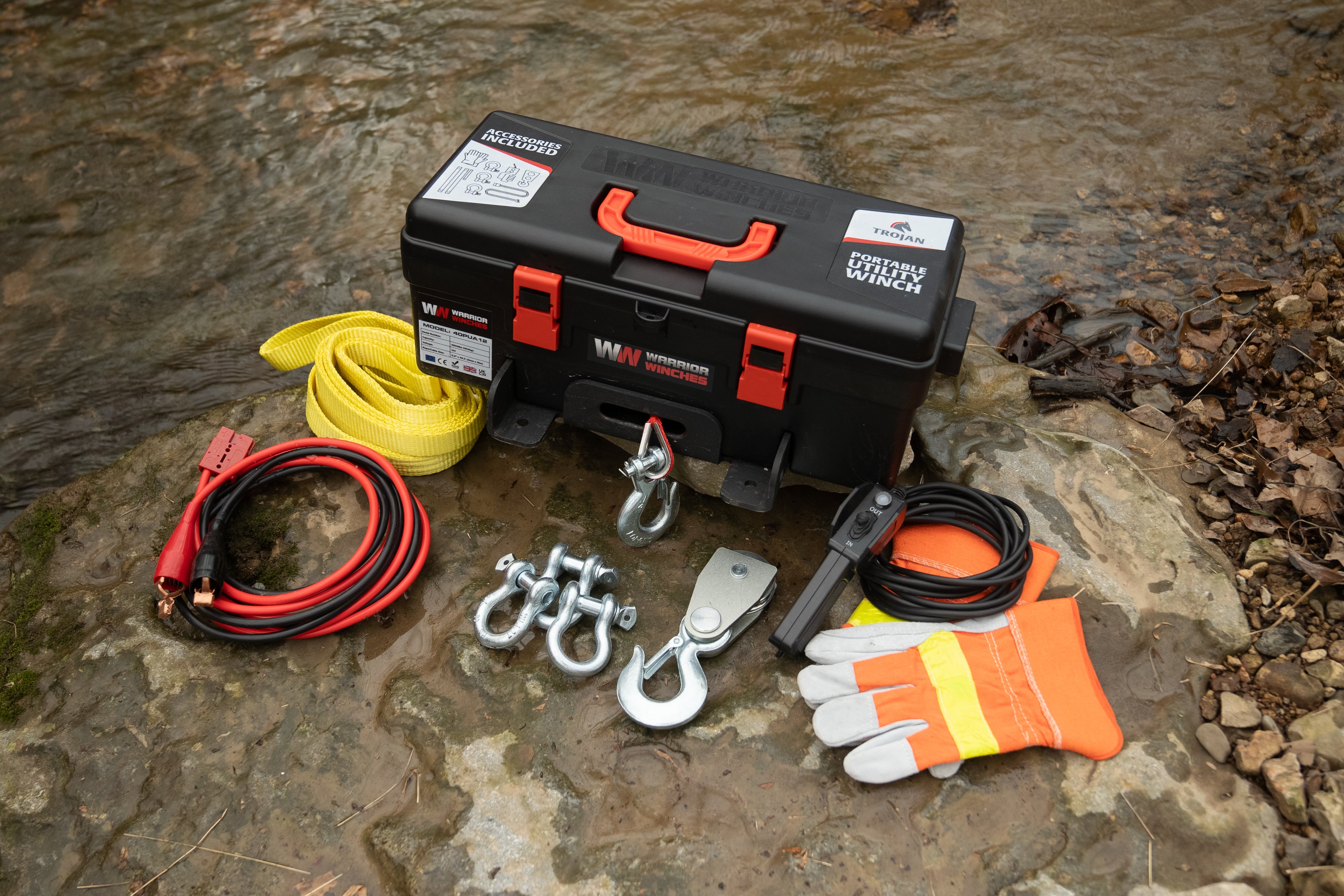

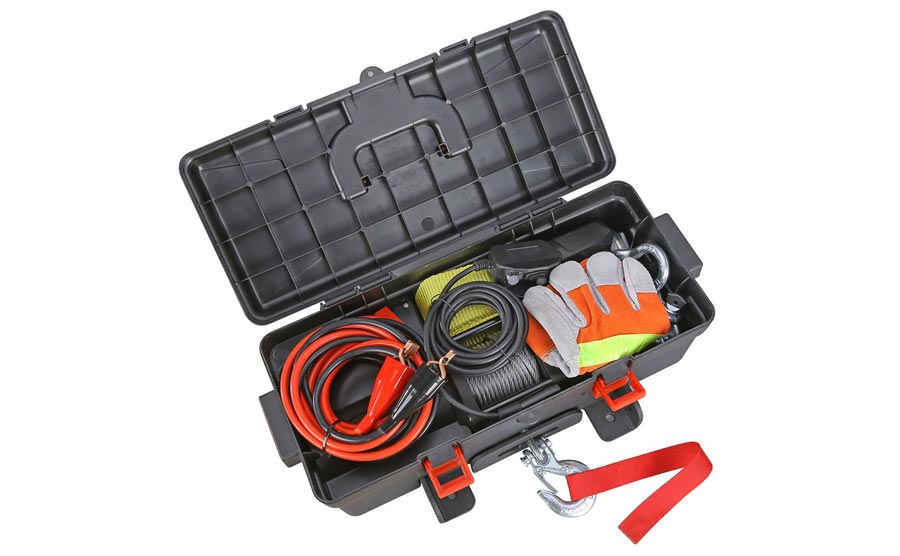

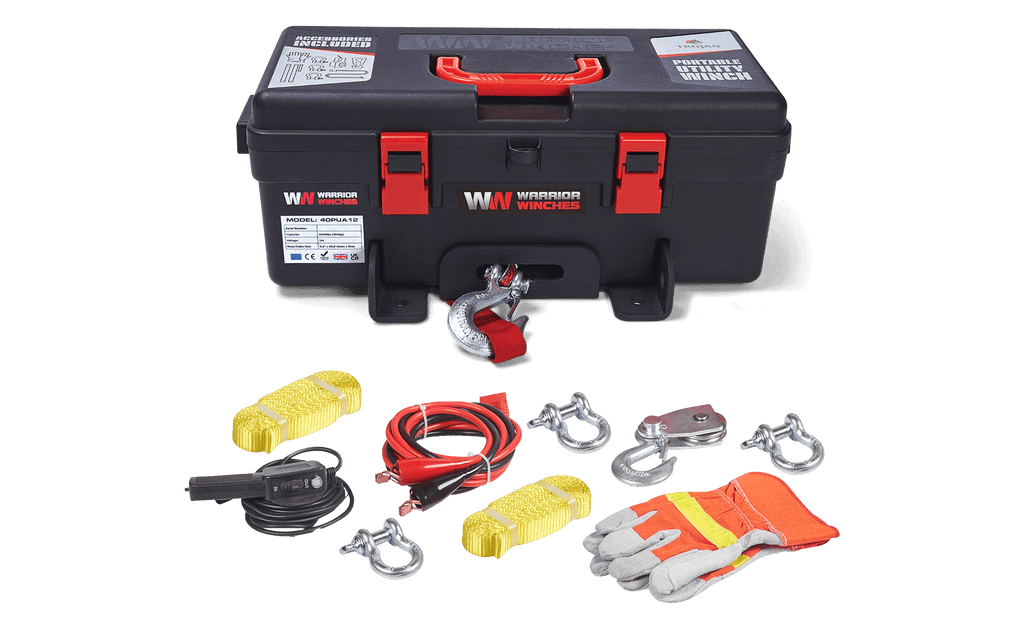

  • Warrior 4000 lb Winch with Synthetic Rope

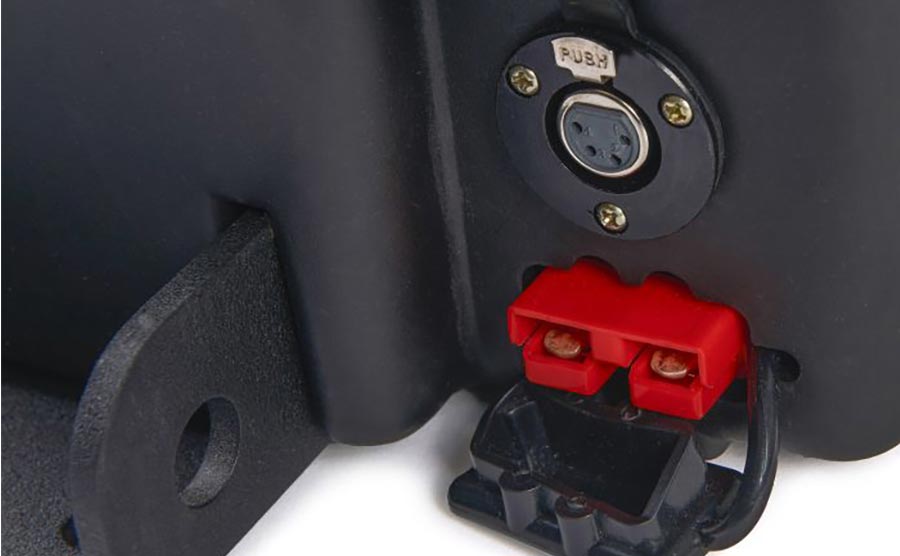

  • Quick Connect Cord With Alligator Clips
  • Heavy Duty Leather Palmed Winch Gloves
  • 6 000lb Pulley Block

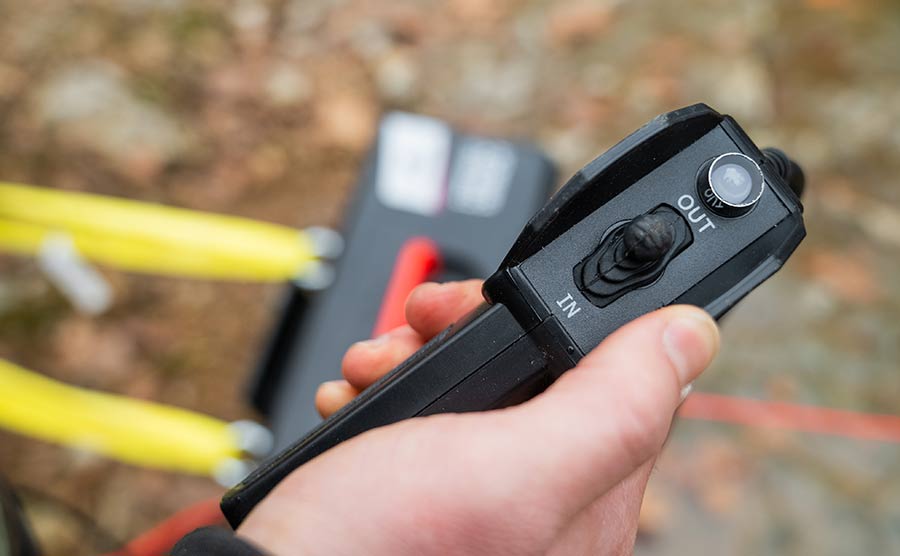

  • 12.5FT (3.8M) Hand Remote
  • Three 14 000lb D-shackles
  • Two 8ft Heavy Duty Straps Rated 8 000lbs
    User Manual Download
    Brochure Download
    Specifications Sheet  Download
    Parts list  Download

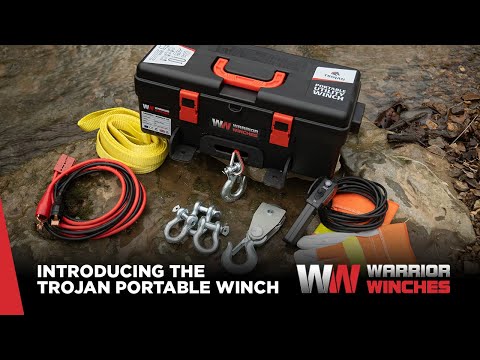

    Video

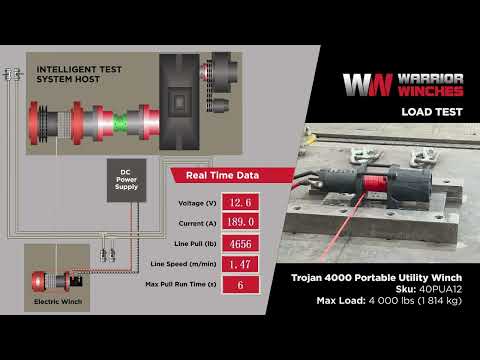

    Load Test

    This winch has a 3 Year Warranty

    BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

    We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

    - Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
    - Any winch regardless of capacity that is fastened to a commercial trailer or towing
    - Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
    - For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



    WARRANTY FOR WARRIOR WINCHES

    Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

    The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

    Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 3-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



    WARRANTY EXCLUSIONS

    This warranty excludes:

    - Cosmetic defects such as paint, decals, ,
    - Worn parts due to improper use.
    - Steel ropes
    - Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.


    - Any Accessory part including roller fairleads, hooks and mounting plates.
    - Failures due to acts of God and other force major events beyond the manufacturer’s control
    - Problems caused by parts that are not original WARRIOR WINCH parts
    - Alteration or modification(s) made by any party other than the
    - Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
    - Any third party equipment
    - Batteries



    Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

    - To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

    This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

    Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

       Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

    All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

    Register your winch here



    • What is the maximum amperage draw for this unit ? I would like to add an outlet in the back of my pick up bed to make it more convenient than going to the battery all the time.

      Line Pull
      lbs (kgs)
      Line Speed 12v
      ft/min (m/min)
      Amp Draw
      12v
      014.4 (4.4)28
      1000 (454)9.8 (3.0)80
      2500 (1135)7.2 (2.2)150
      4000 (1814)4.9 (1.5)190

    • How long are the Quick Connect Cords With Alligator Clips?

      The length of the cord is 3 meters.

      The clip size is 74mm length

    • Will any of the wireless remotes work with the Trojan 4,000lb 12v Electric Winch - Portable Utility? If so, which one(s)??

      T41224-CAD is a plug and play model that is compatible with the trojan

    • Can I purchase a longer remote control lead and a longer power lead??

      There is no current longer wired remote available, however there are plug and play wireless kits available on our store

    • Hi I bought the portable winch and it works great however the synthetic rope rubs against the metal plates that the synthetic cables go through while pulling. Is it possible to attach rollers like you have on your other winches so that the cable does not get damaged?

      The fairlead on the synthetic is a smooth aluminium fairlead to avoid fraying,

    • How long is the rope?

      Cable – Dia x L Synthetic: Ø1/5”×49.2 ‘ (Ø5mm×15m)

    • How long is the winch rope

      Cable – Dia x L Synthetic: Ø1/5”×49.2 ‘ (Ø5mm×15m)

    • How long is the quick connect cables -

      Thanks for your question!

      The battery cable is approx. 2.8m.
