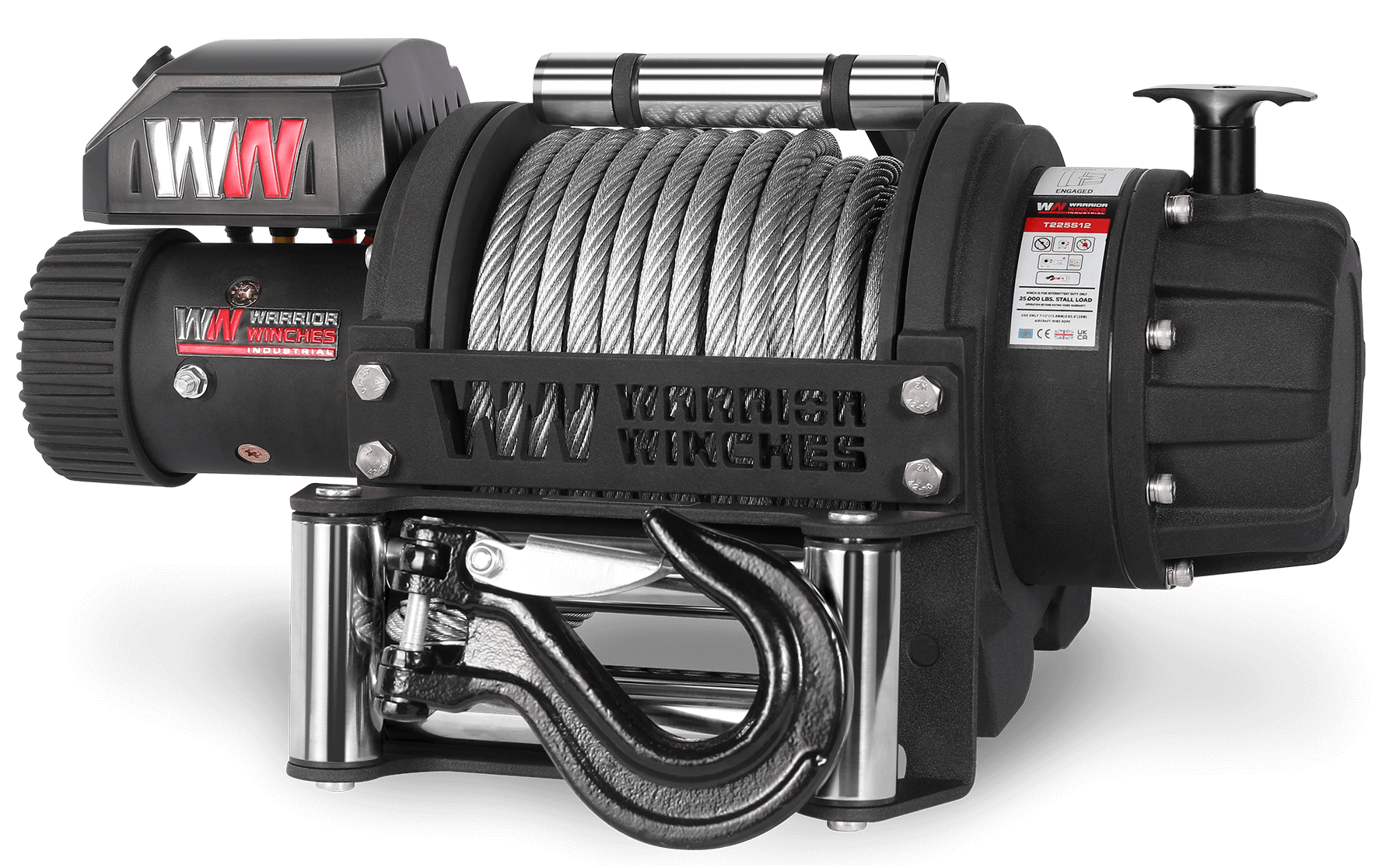

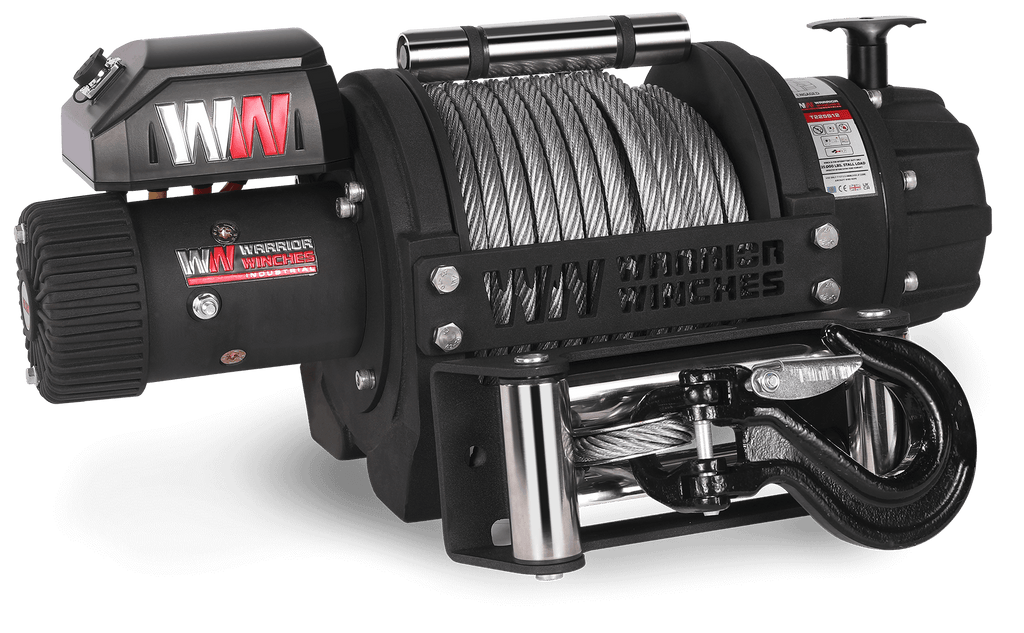

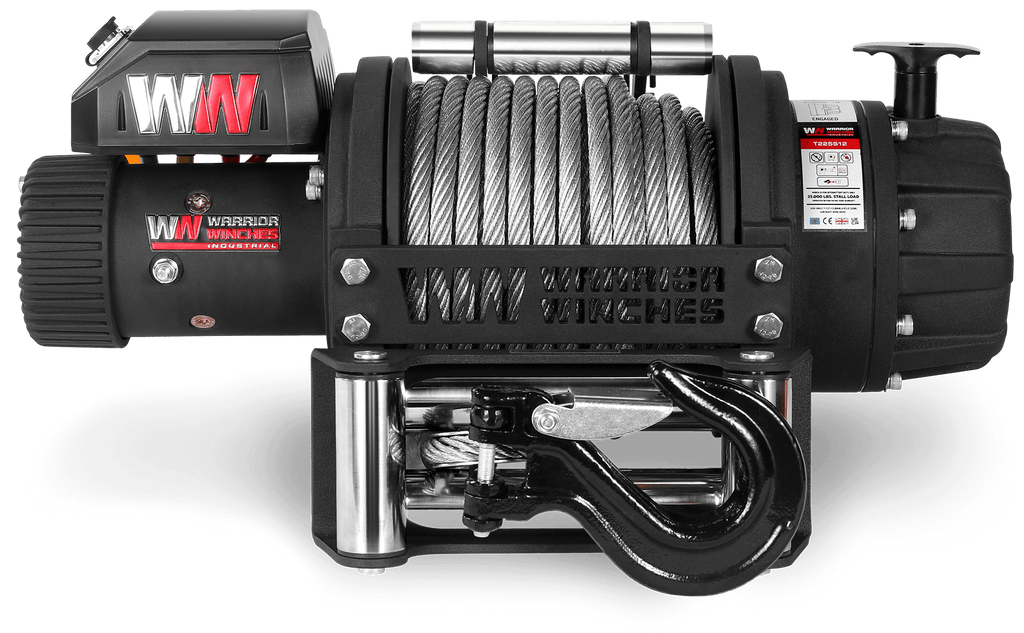

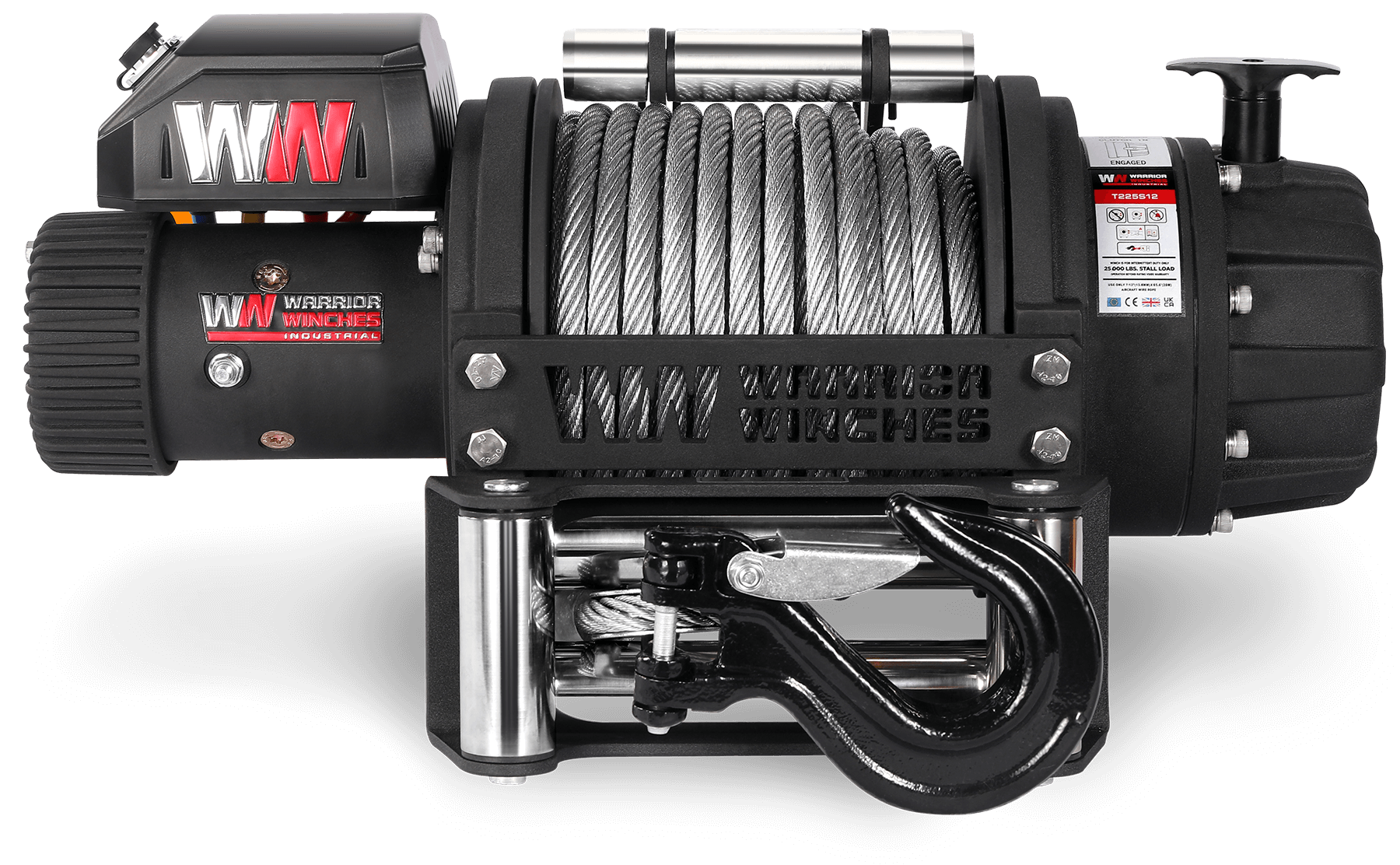

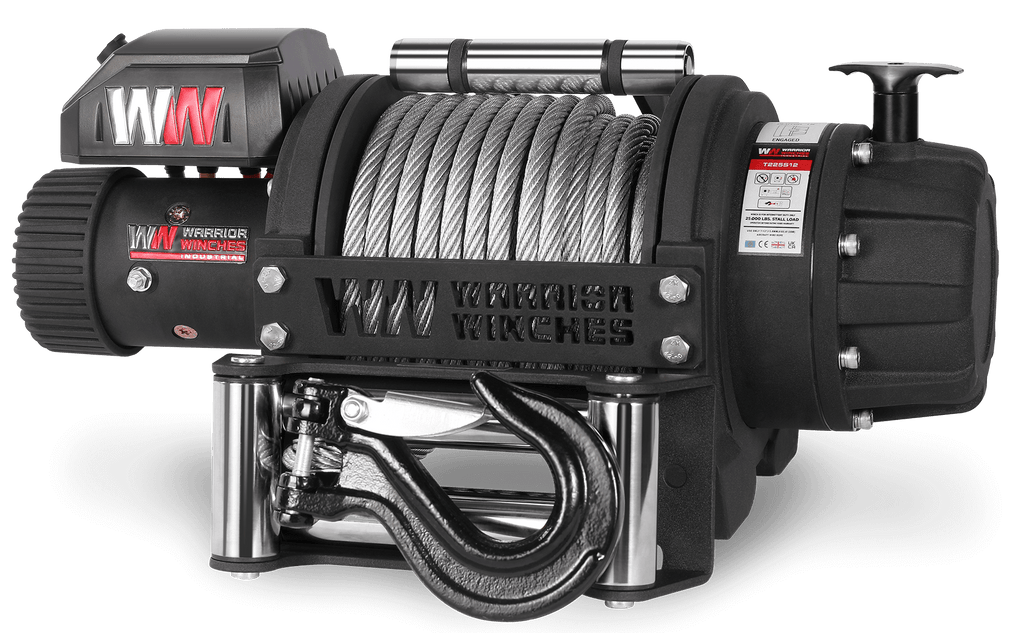

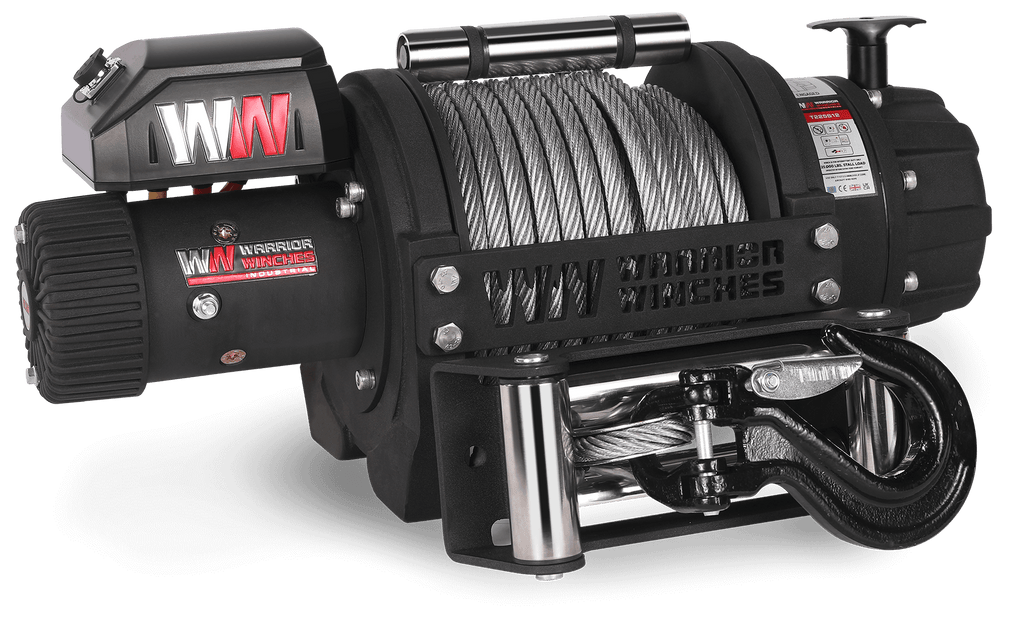

T1000 25,000lb Severe Duty 12v Electric Winch - Steel Rope

| 1 Questions Answered SKU: T225S12-CAD

Price:
Sale price$2,699.99
Only 4 units left (Delivery in 2-7 days)
You may also like:

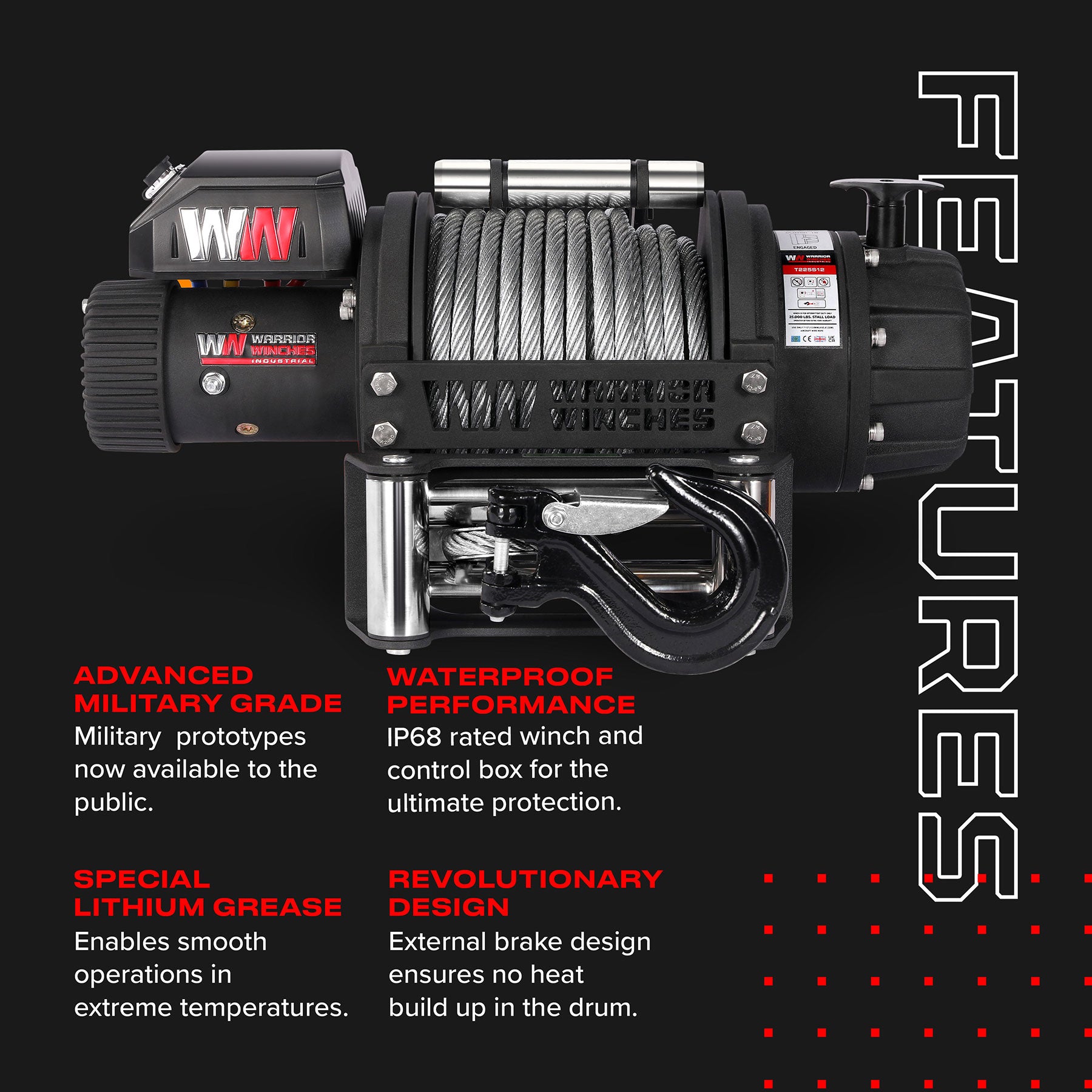

Features

  • ”The Beast” has massive pulling power of up to 25 000lbs.
  • Revolutionary external brake, designed to ensure there is no critical heat build-up in the drum
  • Special Lithium Grease ensures operation in extreme temperatures.
  • IP68 Rated Military Grade Winch & Control Box
  • Overload Protection
  • Hardened 3 stage planetary gears for reliability & efficiency

The T1000 range of Severe Duty Warrior Winches were originally designed as highly advanced prototypes for military application, where the ability to perform in severe climates and the harshest environments imaginable are an essential prerequisite.

After successful operations in the field & following many plaudits at last year's Defense and Security Equipment International Expo, the decision was made to allow the T1000 range to become widely available for general sale.

Available with either steel or the more widely preferred military grade Armortek Extreme ropes, the T1000 Series range from 12,500lbs (5,669 T) right up to “The Beast” - a colossal 25,000lbs (12.5 T) of pulling power.

The T1000 could be a complete game changer as it is a more than capable solution for any Industrial, Commercial or Military applications requiring a truly fully functional battle ready unit, or for those individuals who just demand the ultimate beast of a Warrior on their truck.

 Like its namesake, T1000 series is undoubtedly one of the most the most advanced and durable machines on the market, it really is the best of the best.

All T1000-225 come with built in resettable OLP (Overload Protection) as a safety feature, this allows the user to operate in any environment with confidence without damaging the unit itself.

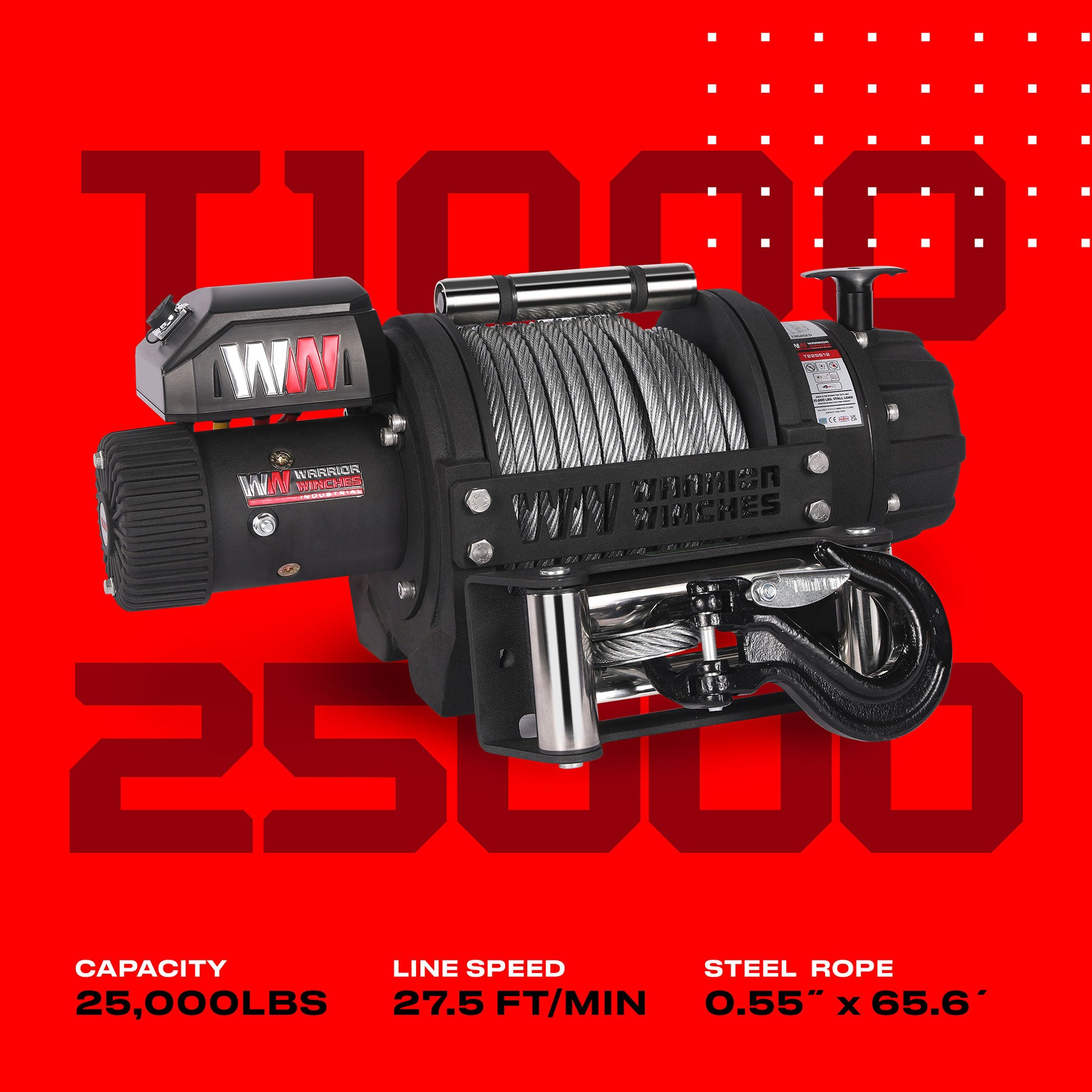

Rated Line Pull 25000 lbs (11340kg)
Motor Type Input: 5.5kW / 7.4hp;
Output: 2.9kW / 3.9hp
Gearing 450:1
Clutch Manual
Braking Action External Brake
Drum Size (Dia x L) Ø4.72 “×7.8 “ (Ø120mm×198mm)
Cable Material Steel
Cable – Dia x L Steel: 7/13 in x 65.6 ft (13.8mm x 20m)
Mounting Pattern 10 x 4.5 in / 10 x 7.5 in
(254 x 114.3mm / 254 x 190.5mm)

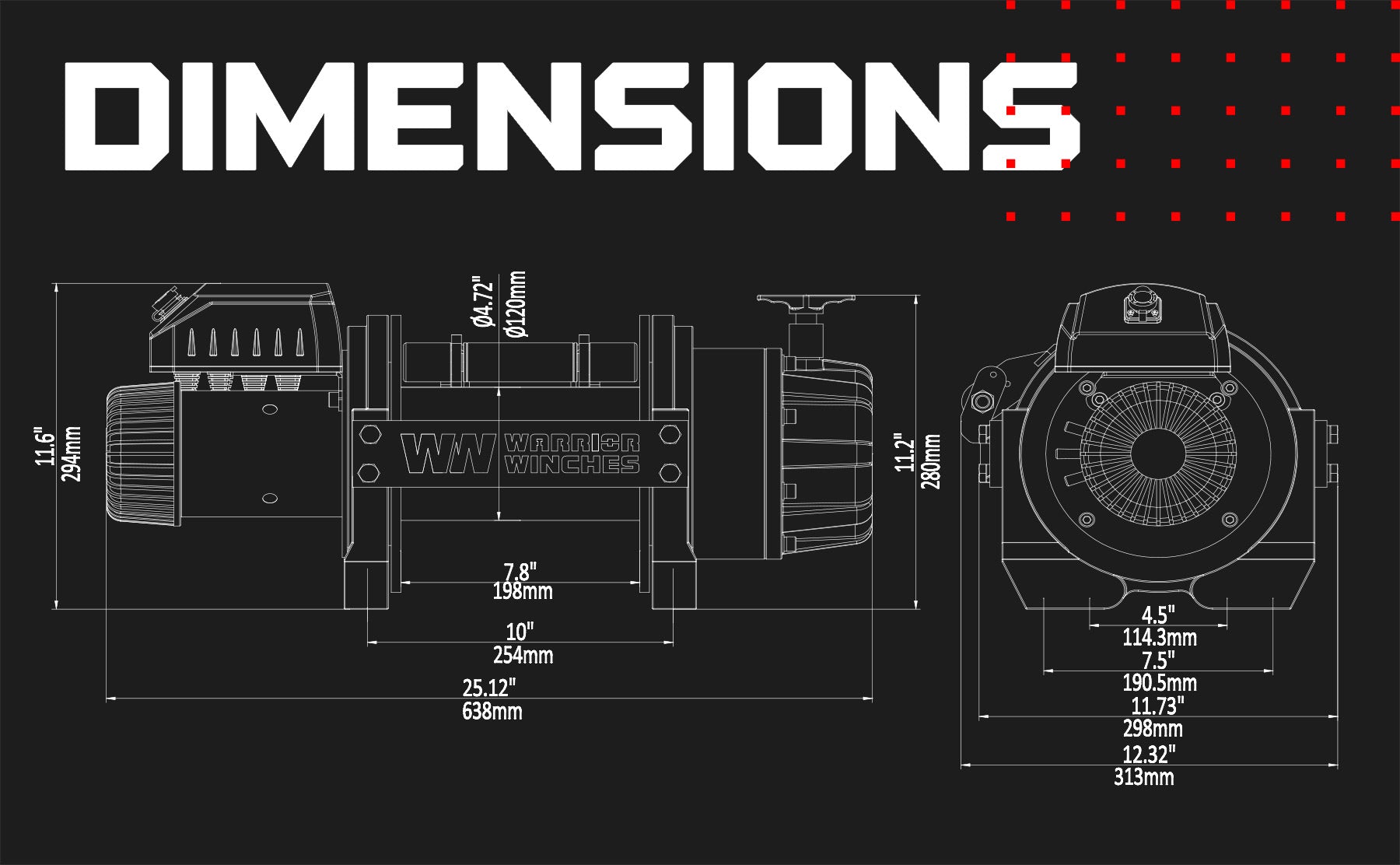

Dimensions 25.1 x 12.3 x 11.6 in (638 x 313 x 294mm)
Weight 211.6 lbs (96kg)
Certification CE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 25000 (11340) 17.7 (5.4)
2 20724 (9400) 39.4 (12.0)
3 17698 (8027) 62.3 (19)
4 15443 (7005) 65.6 (20)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 27.5 (8.4) 45
5000 (2268) 9.5 (3.0) 190
10000 (4536) 6.9 (2.1) 290
15000 (6804) 5.2 (1.6) 380
22000 (9979) 3.9 (1.2) 465
25000 (11340) 2.6 (0.8) 530

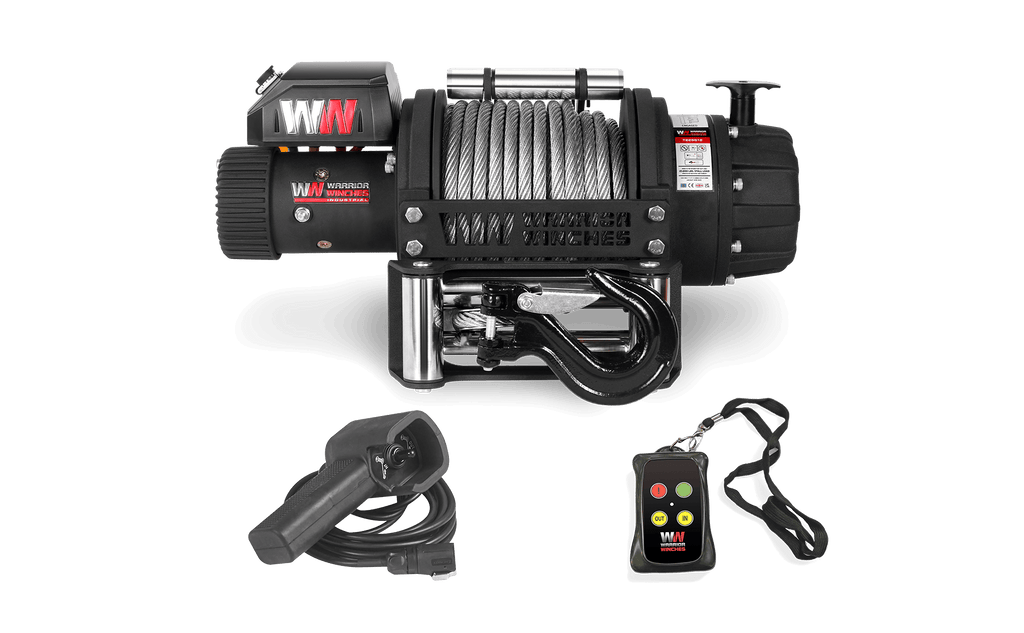

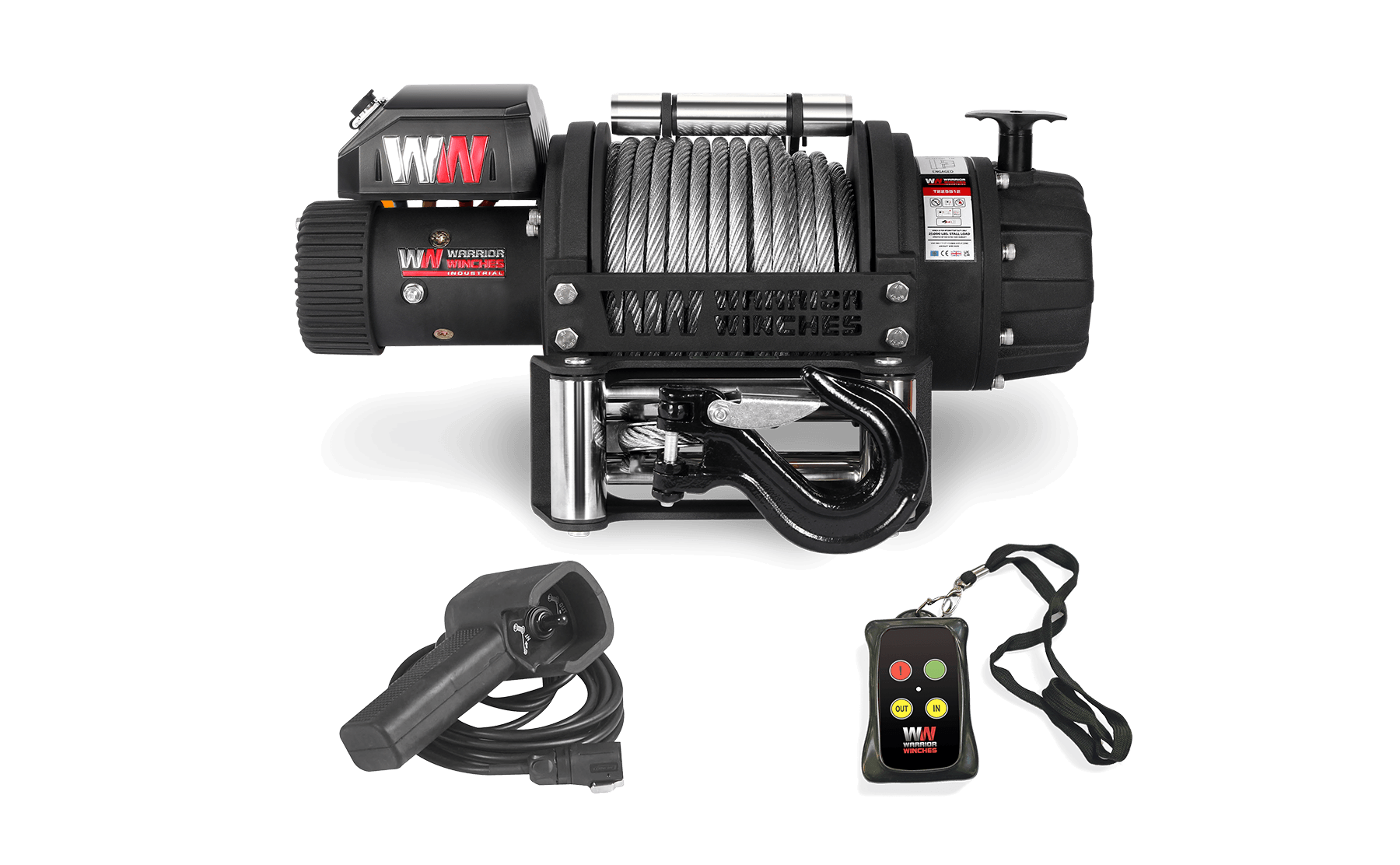

  • T1000 Winch
  • Heavy Duty Stainless Steel Fairlead
  • Steel Rope
  • Heavy Duty Hook
  • Heavy Duty Wired Remote
  • Cable Tensioner
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Brochure Download
Specifications Sheet  Download
Parts list  Download
Durability Test Download

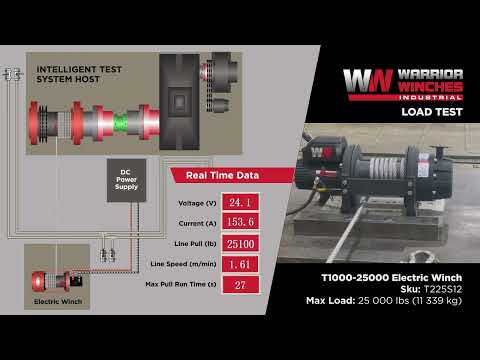

Load Test

Brake Test

Limited lifetime with 5 year on electrical

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

BPE Solutions North America (“seller” or BPE Solutions North America) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (5) five years (60 Months)* from the original purchase provable date of purchase.

    Any product BPE Solutions North America determines to be defective will be repaired or replaced at BPE Solutions North America's sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

    All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

    Register your winch here

    To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

    The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

    This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

    This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

    BPE Solutions North America shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

    BPE Solutions North America reserves the right to change the Product design without notice. BPE Solutions North America reserves the right to replace any part or whole unit with a newer design of the same function.

    T1000 25,000lb Severe Duty 12v Electric Winch - Steel Rope Parts Image

    1 600amp Heavy Duty Contactor CON012-CAD 600amp Heavy Duty Contactor CON012-CAD Translation missing: en.part.general.sale_price $99.99
    2 Complete Control box including, Contactor and Wiring CBT-CAD Complete Control box including, Contactor and Wiring CBT-CAD Translation missing: en.part.general.sale_price $279.99
    3 Motor B2500100 Motor B2500100 Translation missing: en.part.general.sale_price $399.99
    4 Motor Bearing B2500004 Motor Bearing B2500004   View
    5 Tie Bar B2500030 Tie Bar B2500030 Translation missing: en.part.general.sale_price $29.99
    6 End Bearing B2500017 End Bearing B2500017 Translation missing: en.part.general.sale_price $139.99
    7 Gearbox - GBT225S12 Gearbox - GBT225S12 Translation missing: en.part.general.sale_price $599.99
    8 Clutch Assembly B2500600 Clutch Assembly B2500600 Translation missing: en.part.general.sale_price $49.99
    9 Cable Tensioner B2501000 Cable Tensioner B2501000   View
    10 Control Box Socket For T1000 Winches EXT4SN-CAD Control Box Socket For T1000 Winches EXT4SN-CAD Translation missing: en.part.general.sale_price $39.99

    Reviews and Q&A.

    • Can you get wireless remote with this?

      EWX124-CAD is compatible with this model
