T122A12M/2-CAD

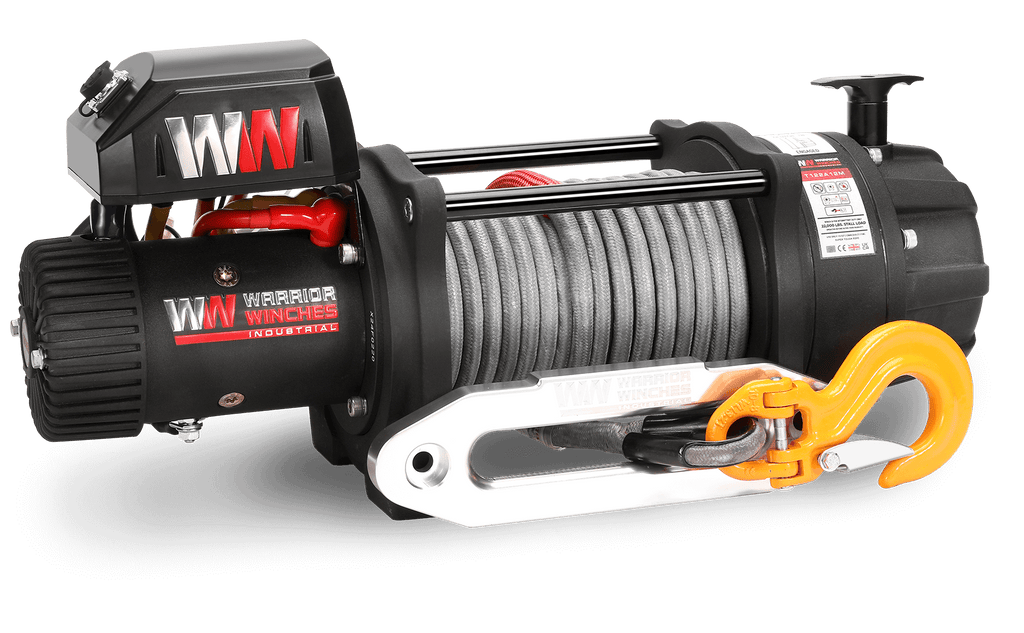

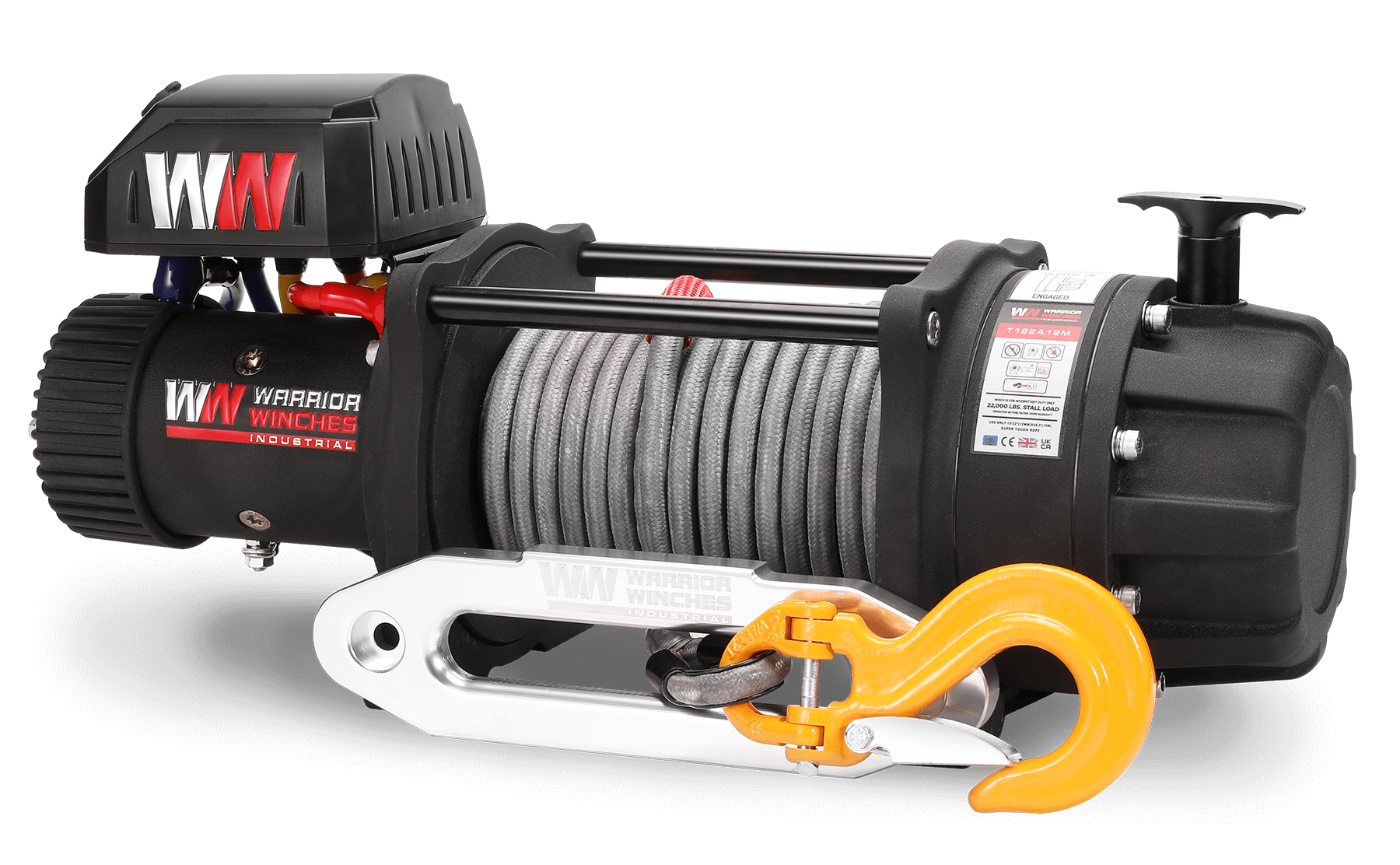

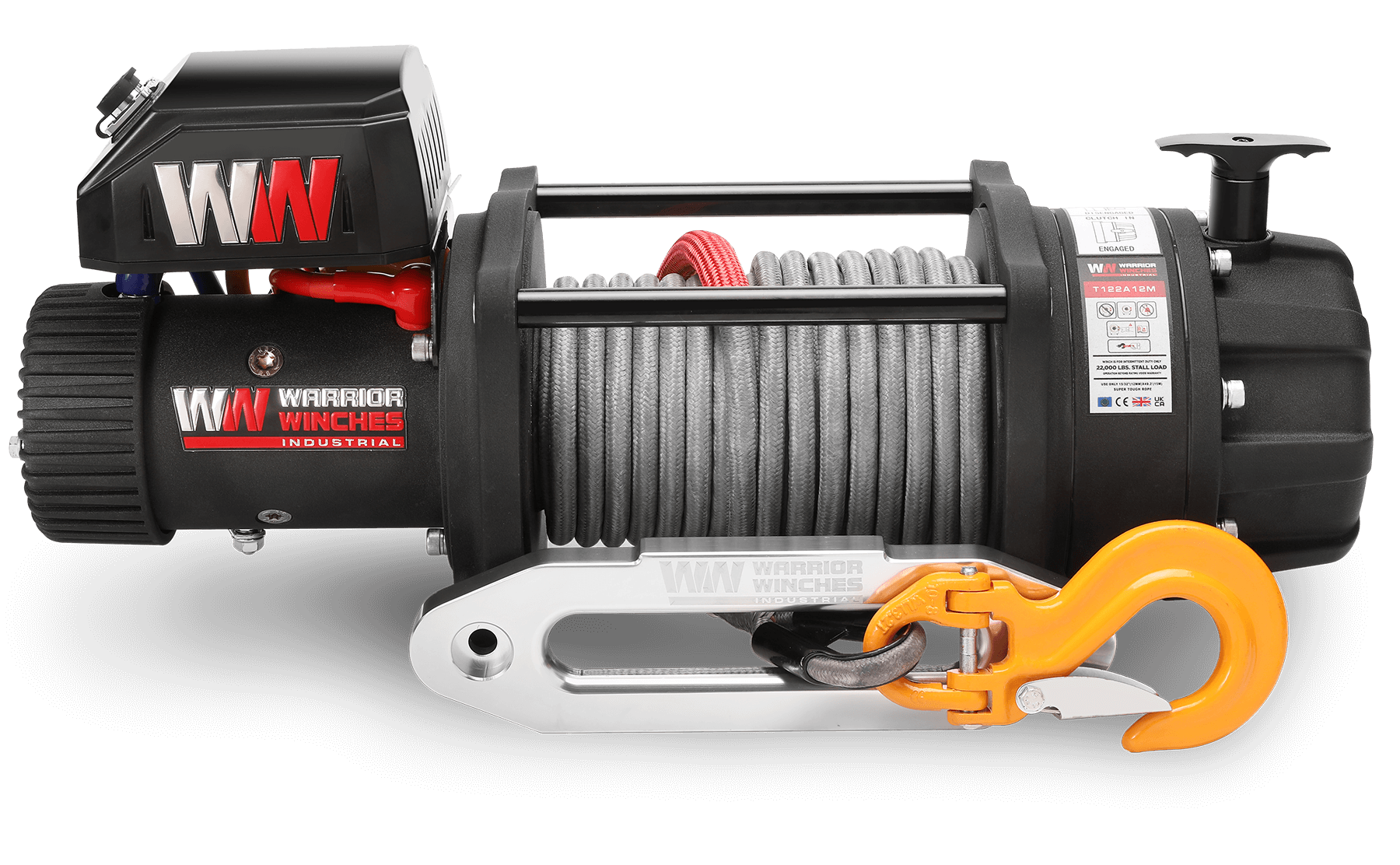

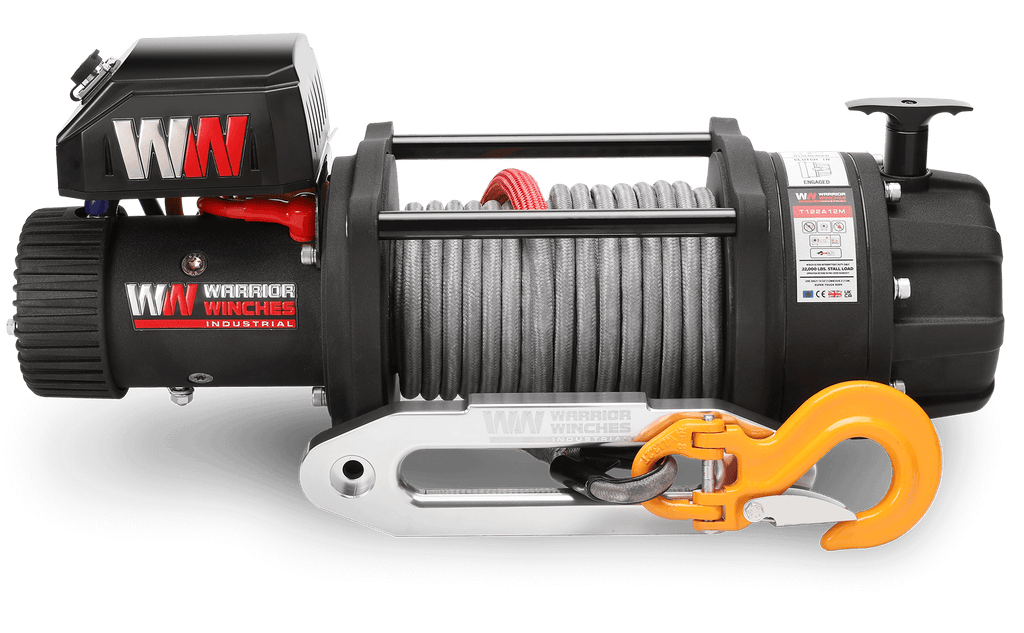

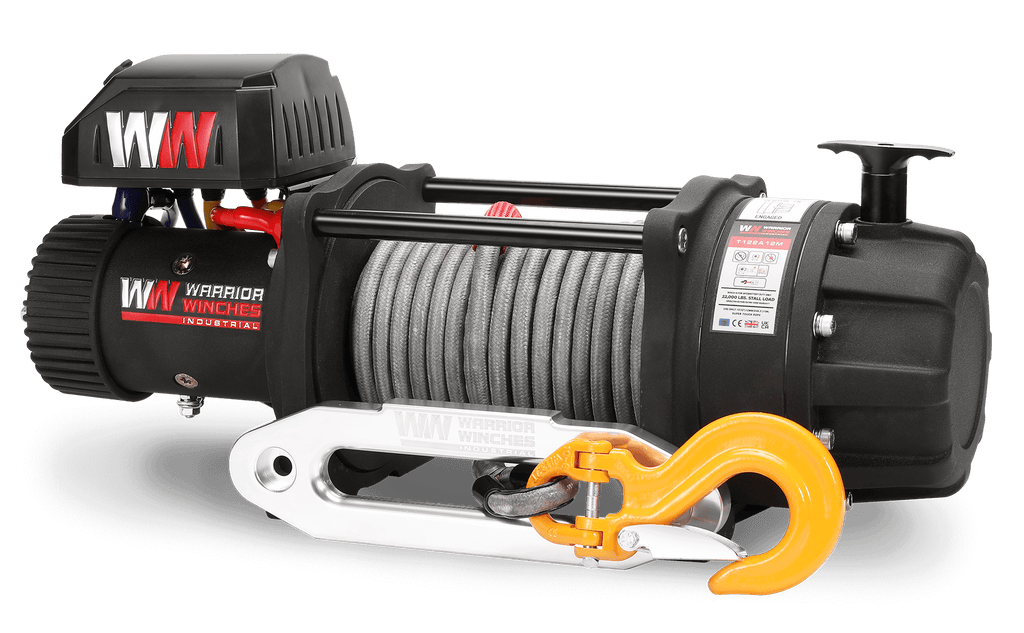

T1000 22,000lb Severe Duty 12v Electric Winch - Synthetic Rope

Sale price$2,699.00
Sold out

Features

  • Revolutionary External Brake – Prevents heat build-up, ensuring safe, smooth operation and extending the winch’s lifespan.
  • Special Lithium Grease – Maintains performance in extreme temperatures, reducing wear and enhancing durability.
  • IP68 Military Grade Rating – Provides dustproof and waterproof protection, ensuring reliable performance in harsh environments.
  • Overload Protection – Automatically prevents damage from excessive loads, ensuring safe and reliable use.
  • Hardened 3-Stage Planetary Gears – Delivers high torque and efficiency for reliable, long-lasting performance under heavy loads.

Introducing the T1000: The Ultimate Severe-Duty Winch

Originally engineered as an advanced military prototype, the T1000 Severe Duty Warrior Winch was built to withstand the harshest environments on the planet. Designed for extreme performance in severe climates, this winch has already proven itself in the field—earning high praise from defence experts and industry leaders alike.

After its standout debut at the Defence and Security Equipment International Expo, we made the decision to unleash the T1000 range for widespread use. Now, this battle-ready powerhouse is available for those who demand nothing but the best—whether for industrial, commercial, military, or hardcore off-road applications.

Like its namesake, the T1000 series is the most advanced, durable, and relentless winch on the market. If you need unmatched strength, military-grade reliability, and pure brute force, look no further. This is the ultimate winch—engineered to perform when it matters most.

The T1000 isn’t just a winch. It’s a Warrior.

Rated Line Pull22000 lbs
Motor Type12V:Input: 5.5kW / 7.4hp; Output: 2.9kW / 3.9hp
ClutchManual
Gearing450:1
Gearing SystemPlanetary
Braking ActionExternal Brake
Drum Size (Diameter x Length)3.46 x 8.39 in
ControlsWired Remote
Cable MaterialSynthetic
Cable Size (Diameter x Length)49.22ft x 0.47 in
FairleadHawse
Mounting Pattern10 x 6.5 in (254mm × 165.1mm)

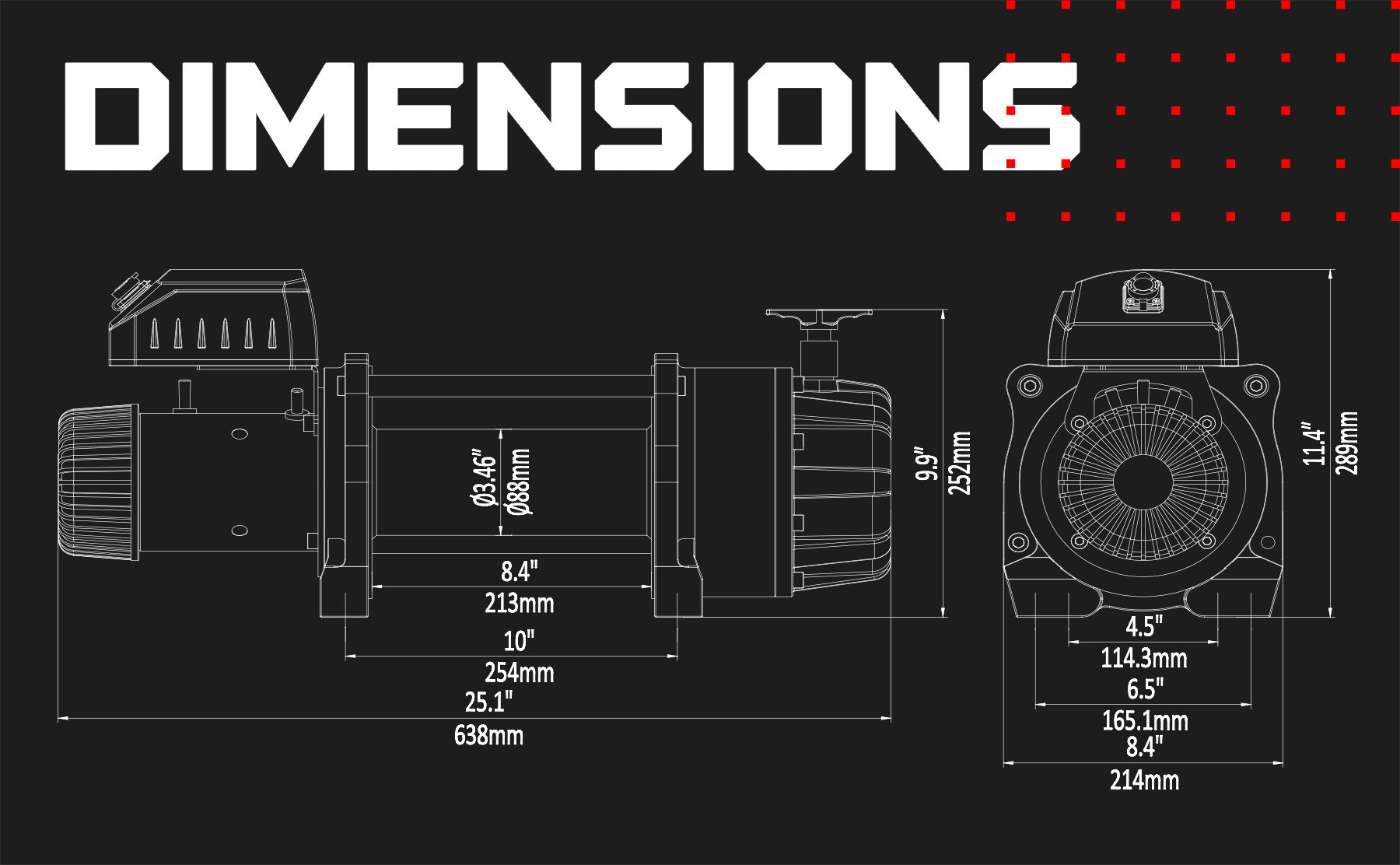

Dimensions25.12 x 8.43 x 11.38 in
Weight134 lbs
Waterproof Rating (IP)67
CertificationCE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 22000 (9979) 14.1 (4.3)
2 17300 (7847) 32.8 (10.0)
3 14260 (6468) 55.1 (16.8)
4 12130 (5502) 78.7 (24.0)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 21.7 (6.6) 65
5000 (2268) 9.8 (3.0) 175
10000 (4536) 6.6 (2.0) 270
15000 (6804) 4.9 (1.5) 350
22000(9979) 3.0 (0.9) 460

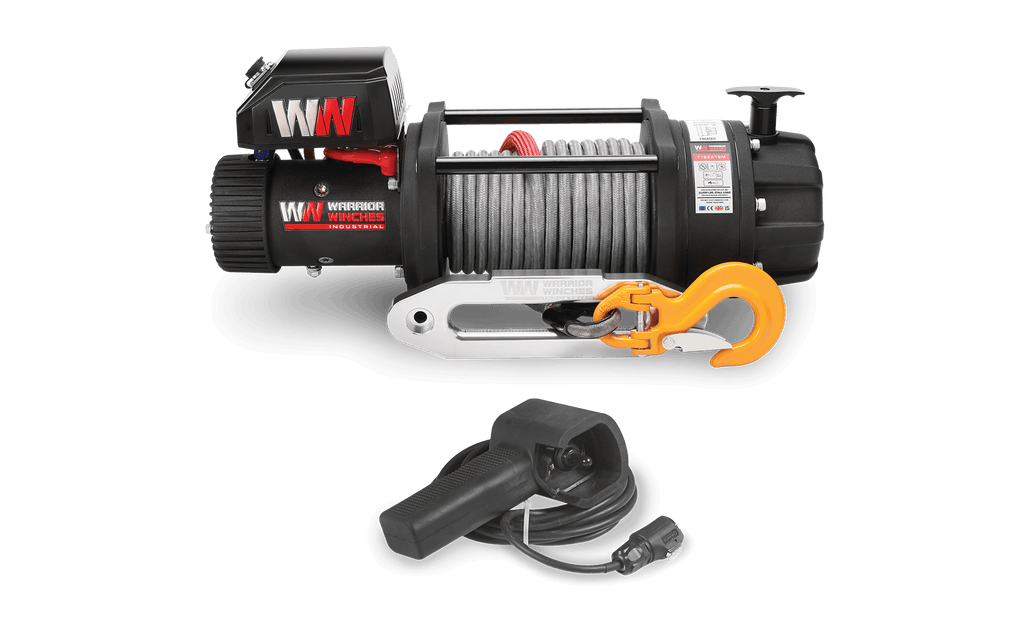

  • T1000 Winch
  • Aluminum Hawse Fairlead
  • Synthetic Rope
  • Heavy Duty Hook
  • Heavy Duty Wired Remote
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Brochure Download
Specifications Sheet  Download
Parts list  Download
Durability Test Download

Load Test

Brake Test

This winch has a 5 Year Warranty

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 5-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.
- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here



T1000 22,000lb Severe Duty 12v Electric Winch - Synthetic Rope Parts Image

1 600amp Heavy Duty Contactor CON012-CAD 600amp Heavy Duty Contactor CON012-CAD Translation missing: en.part.general.sale_price $99.99
2 Complete Control box including, Contactor and Wiring CBT-CAD Complete Control box including, Contactor and Wiring CBT-CAD Translation missing: en.part.general.sale_price $279.99
3 Motor T2200100-12V Motor T2200100-12V Translation missing: en.part.general.sale_price $319.99
4 Motor Bracket - T2200004 Motor Bracket - T2200004   View
5 End Bearing T2200017 End Bearing T2200017   View
6 Gearbox GBT122S12 Gearbox GBT122S12 Translation missing: en.part.general.sale_price $619.99
7 Clutch Assembly T2200600 Clutch Assembly T2200600   View
8 Tensioner - T2201000 Tensioner - T2201000   View
9 Tie Bar T2200014 Tie Bar T2200014 Translation missing: en.part.general.sale_price $39.99
10 Control Box Socket For T1000 Winches EXT4SN-CAD Control Box Socket For T1000 Winches EXT4SN-CAD Translation missing: en.part.general.sale_price $39.99
