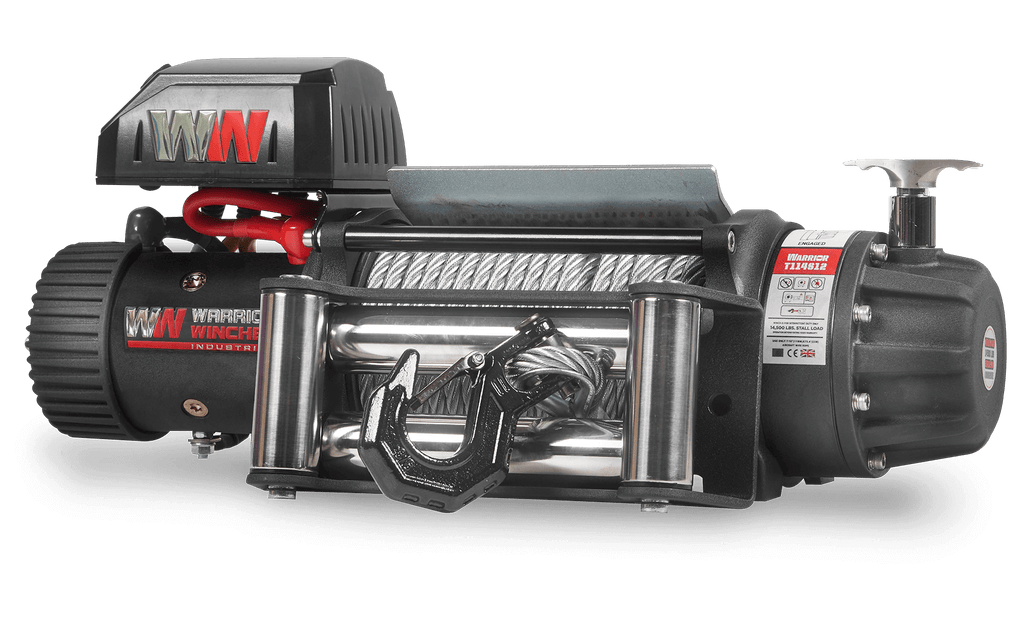

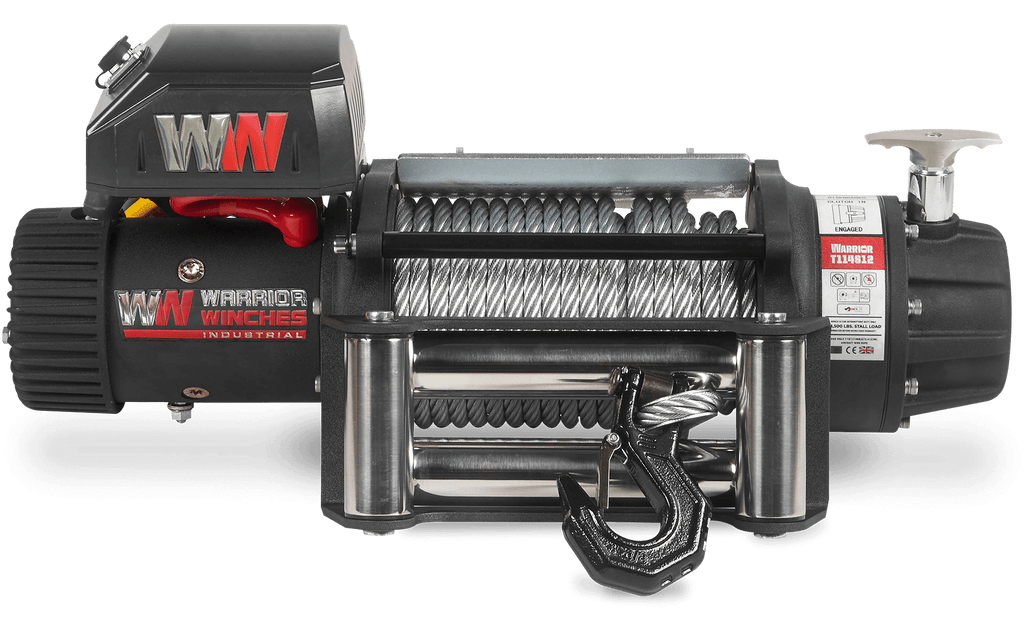

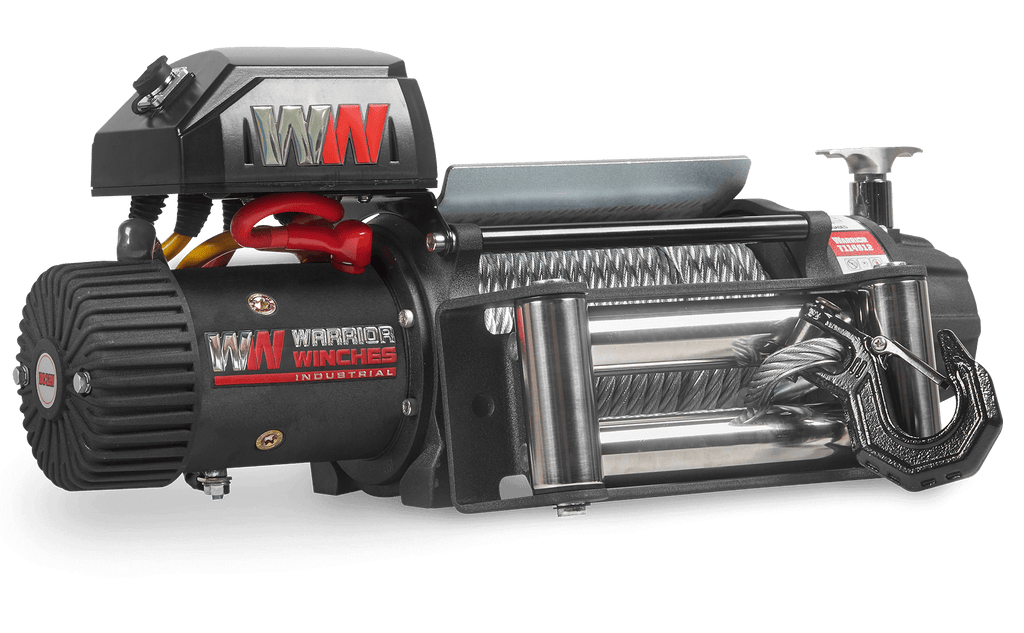

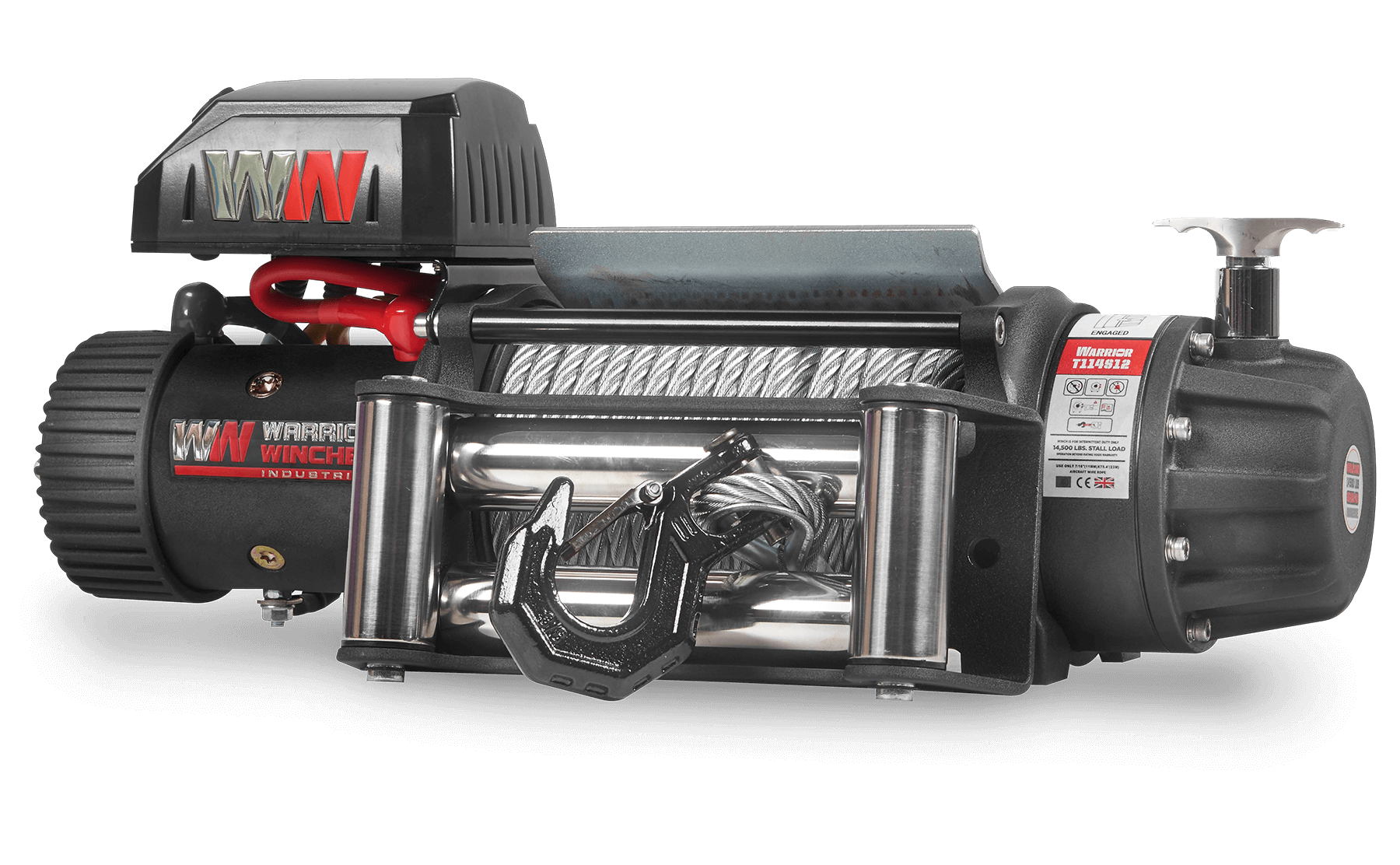

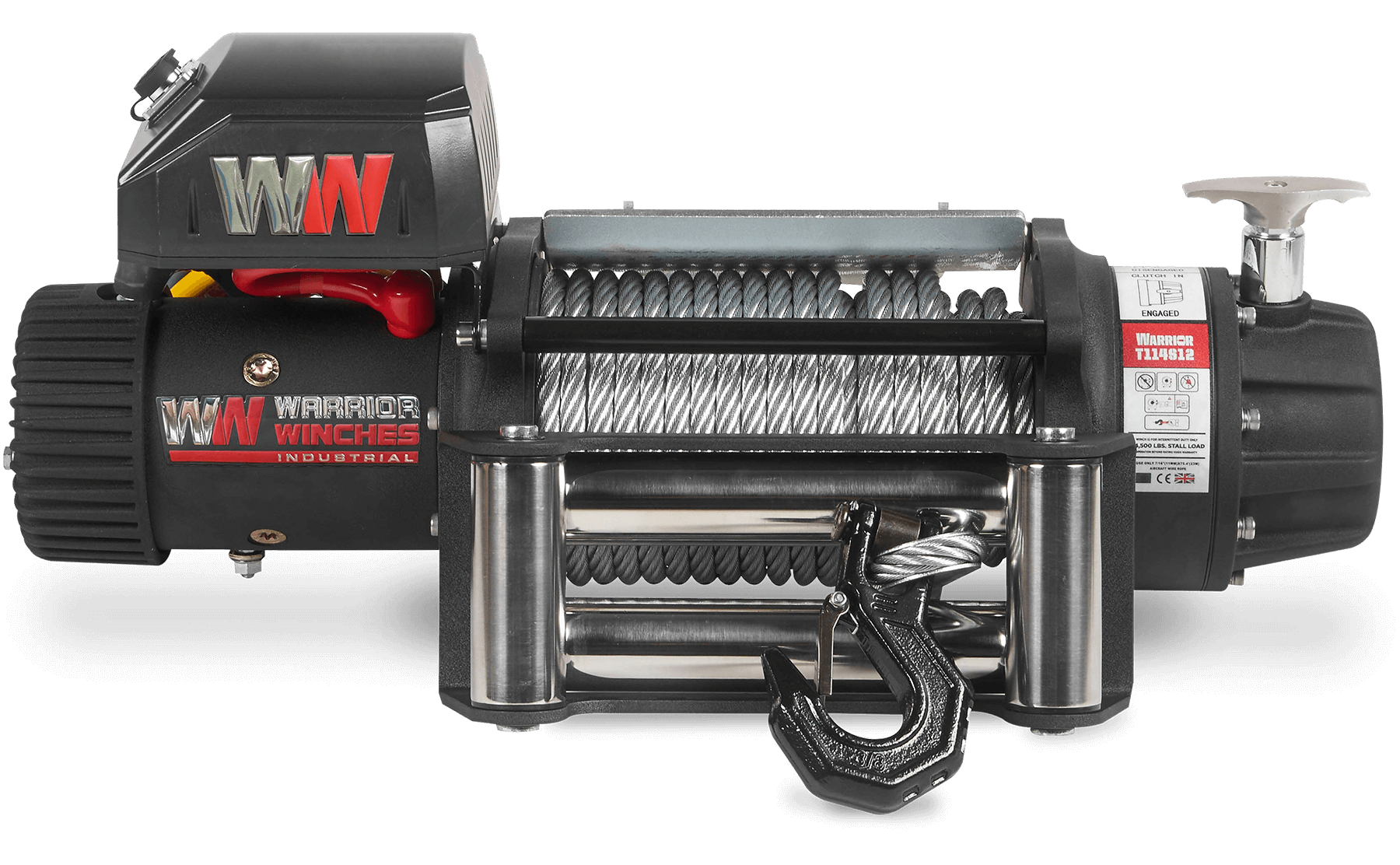

T1000 14,500lb Severe Duty 12v Electric Winch - Steel Rope

|  Ask a Question SKU: T114S12-CAD

Price:
Sale price$1,299.99
In stock (Delivery in 2-7 days)
You may also like:

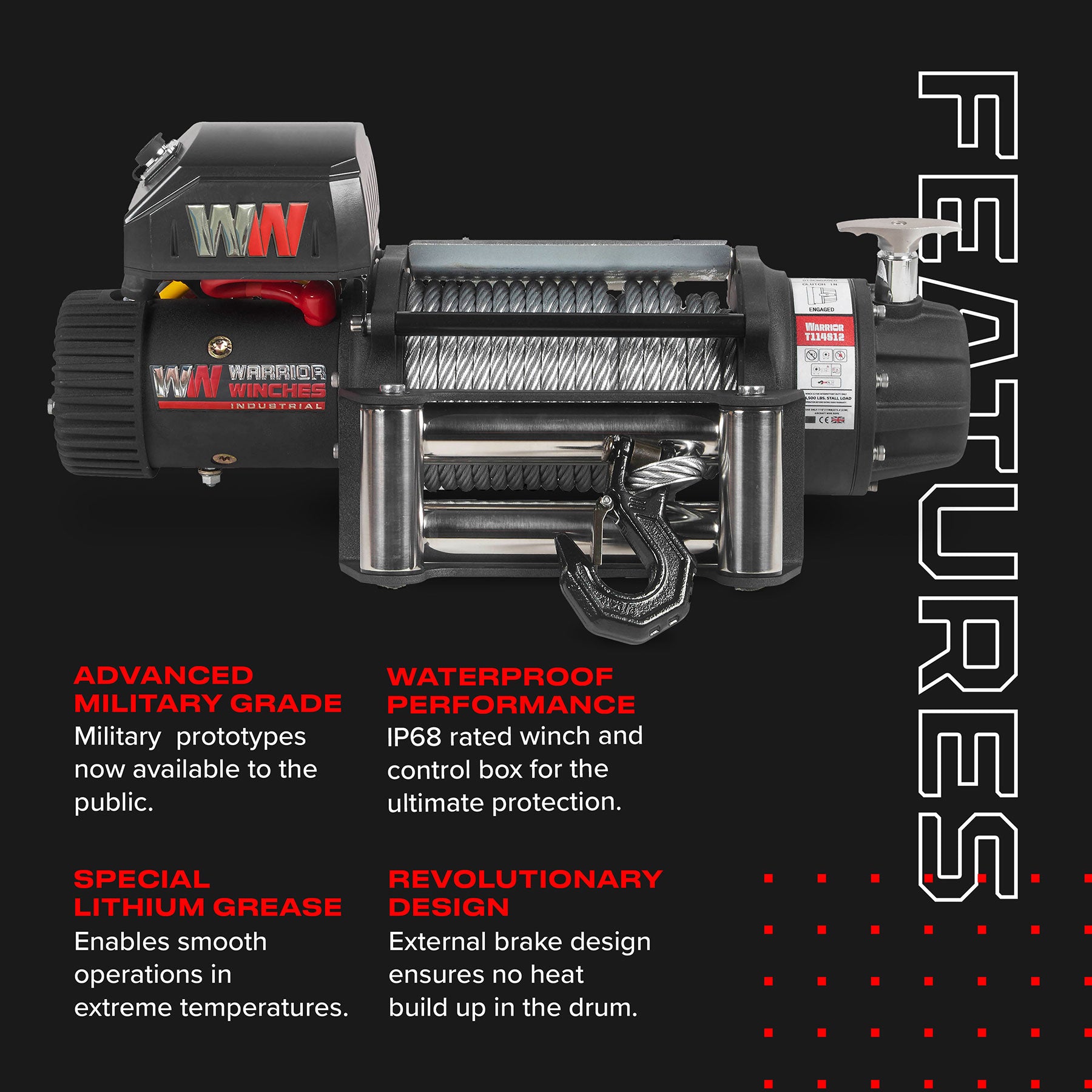

Features

  • Revolutionary external brake, designed to ensure there is no critical heat build-up in the drum
  • Special Lithium Grease ensures operation in extreme temperatures.
  • IP68 Rated Military Grade Winch & Control Box
  • Trident 2.4G Wireless Remote
  • Hardened 3 stage planetary gears for reliability & efficiency

The T1000 range of “Severe Duty” Warrior Winches were originally designed as highly advanced prototypes for military application, where the ability to perform in severe climates and the harshest environments imaginable are an essential prerequisite.

After successful operations in the field & following many plaudits at last year’s Defense and Security Equipment International Expo, the decision was made to allow the T1000 range to become widely available for general use.

The T1000 could be a complete game changer as it is a more than capable solution for any Industrial, Commercial or Military applications requiring a truly fully functional battle ready unit, or for those individuals who just demand the ultimate beast of a Warrior on their truck.

Like its namesake, T1000 series is undoubtedly one of the most the most advanced and durable machines on the market, it really is the best of the best.

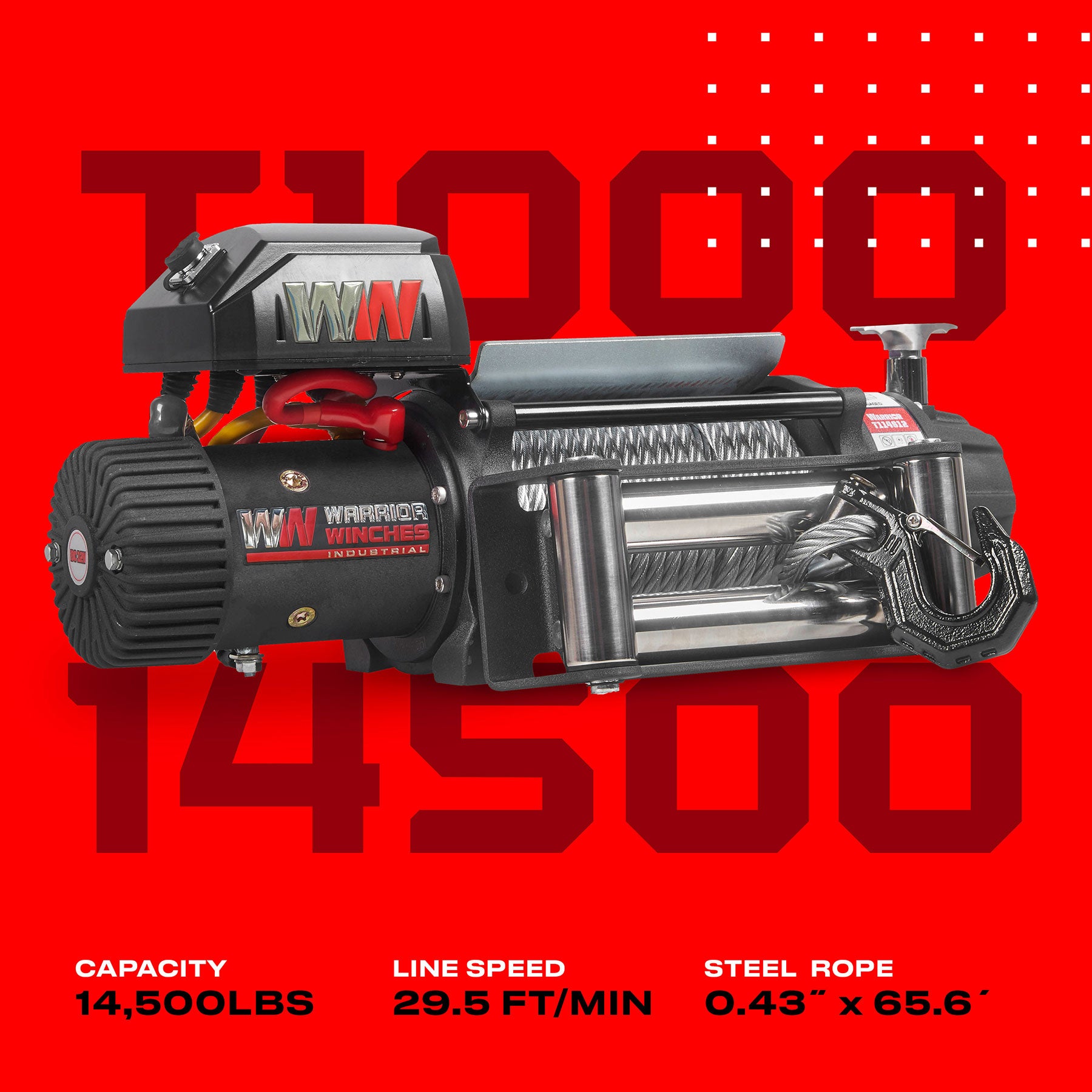

Rated Line Pull 14500 lbs (6577kg)
Motor Type 12V : 5.4kW / 7.2hp
Gearing 228:1
Clutch Manual
Braking Action External Brake
Drum Size (Dia x L) Ø2.48 “×8.5 “ (Ø63mm×217mm)
Cable Material Steel
Cable – Dia x L Steel: 7/16 in x 65.6 ft (11mm x 20m)
Mounting Pattern 10 x 4.5 in 254 x 114.3mm 4-M10

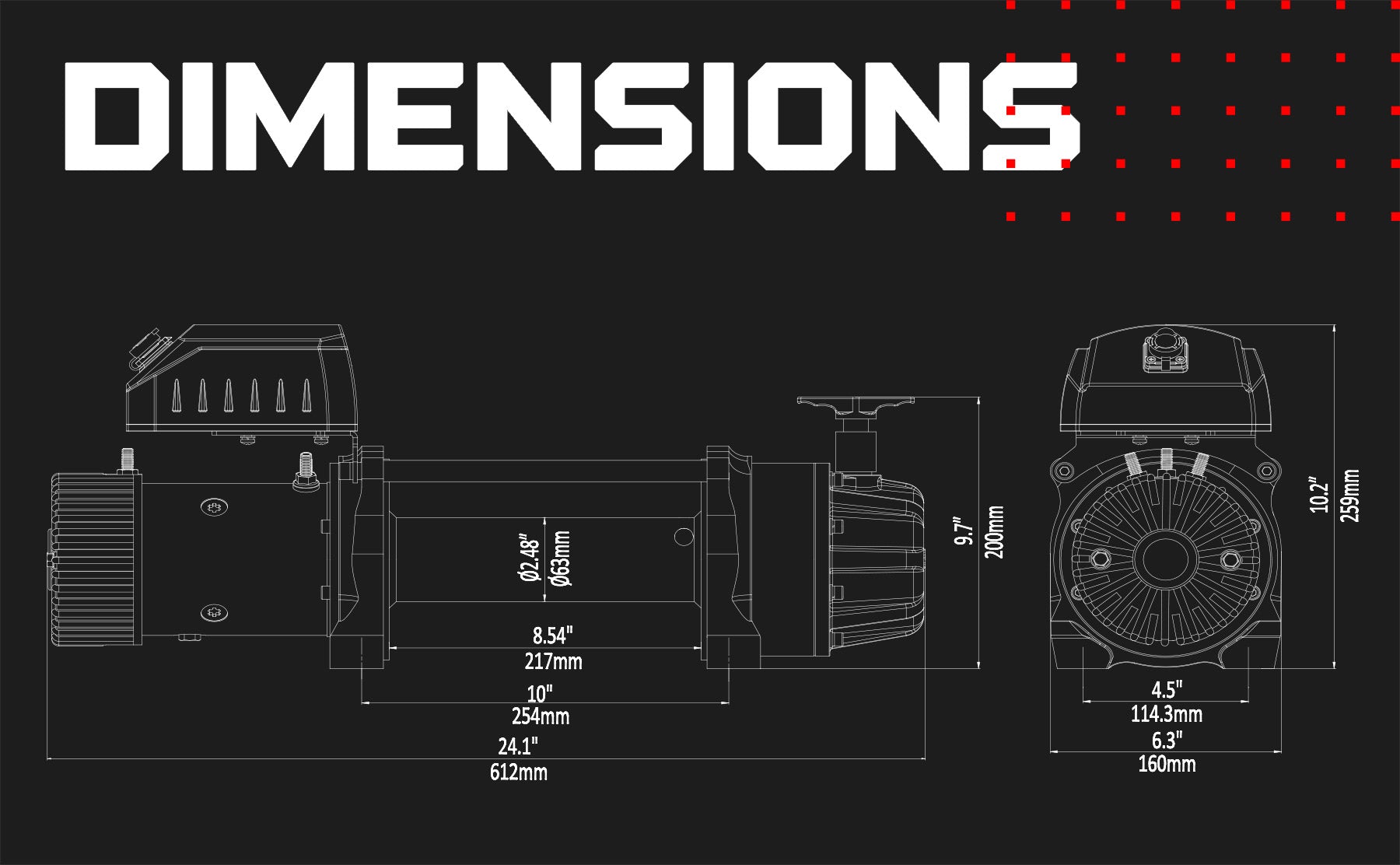

Dimensions 612 x 160 x 259 mm
Weight 90 lbs (41kg)
Certification CE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 14500 (6577) 14.4 (4.4)
2 11177 (5070) 33.1 (10.1)
3 9093 (4124) 56.1 (17.1)
4 7664 (3476) 75.4 (23.0)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 29.5 (9.0) 65
5000 (2268) 11.8 (3.6) 210
10000 (4536) 5.9 (1.8) 300
14500 (6577) 3.9 (1.2) 405

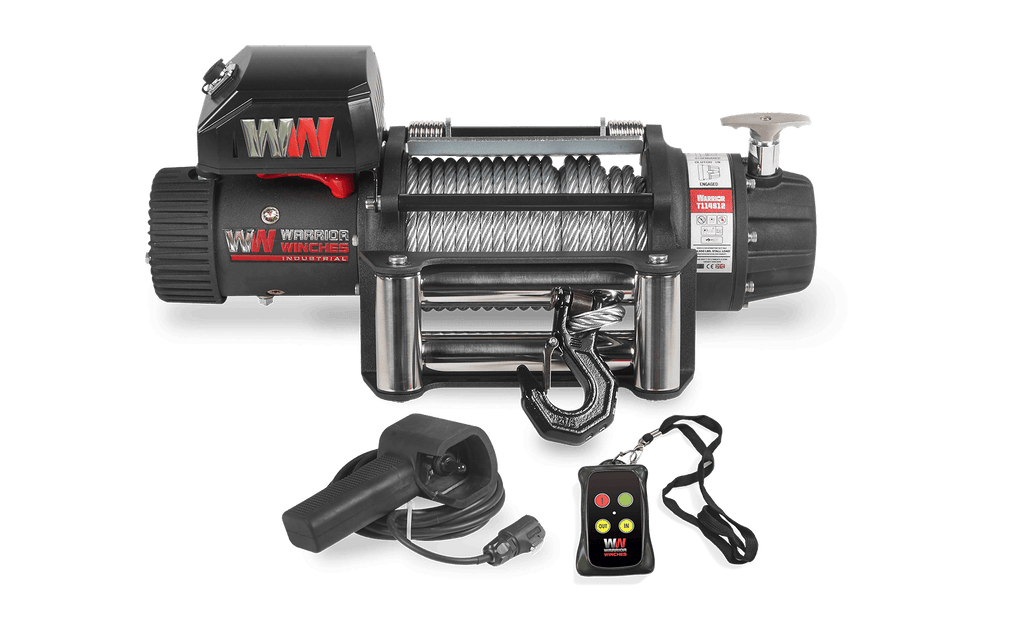

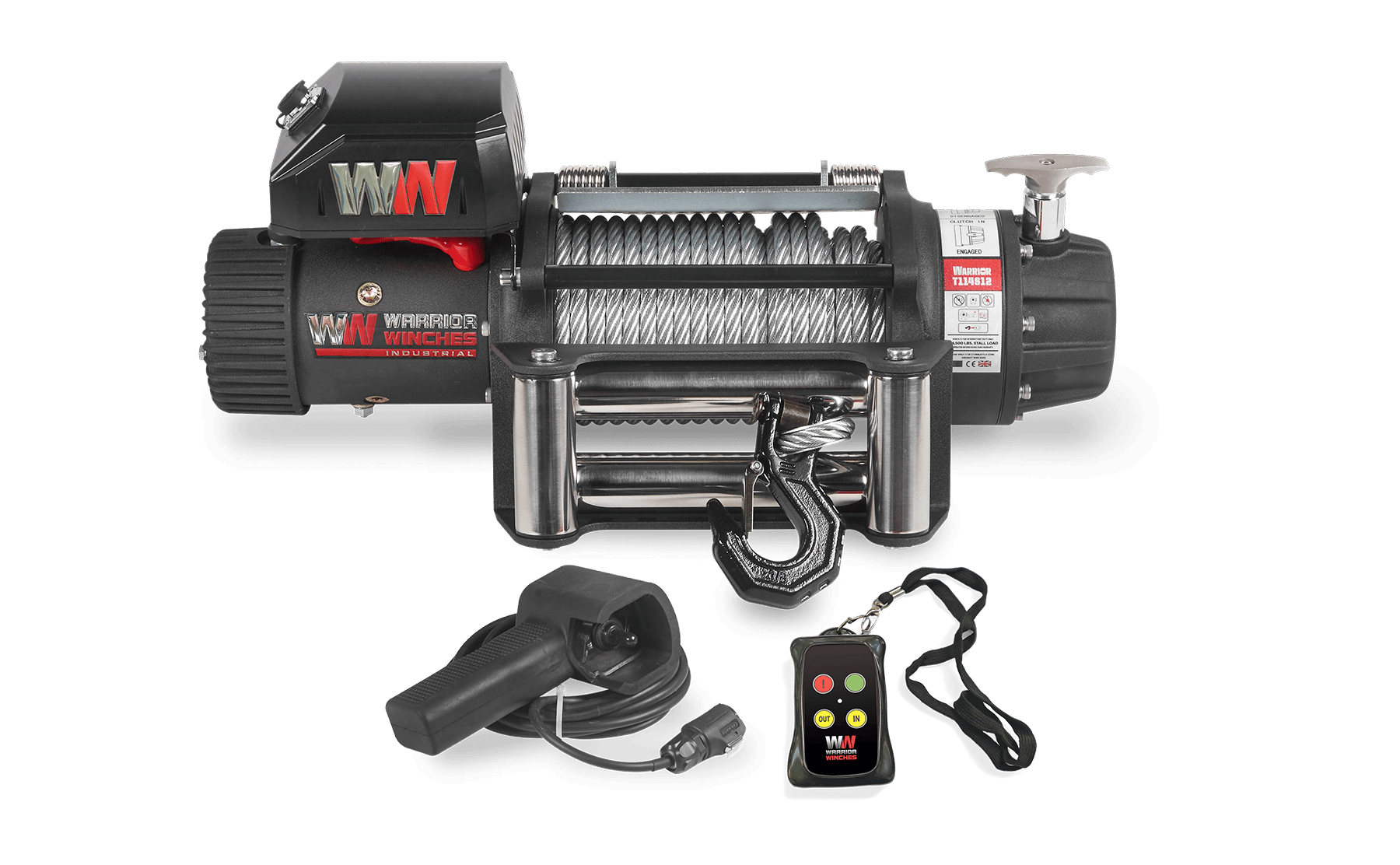

  • T1000 Winch
  • Heavy Duty Stainless Steel Fairlead
  • Steel Rope
  • Heavy Duty Hook
  • Heavy Duty Wired Remote
  • Trident 2.4G Wireless Remote
  • Tensioner
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Brochure Download
Specifications Sheet  Download
Parts list  Download
Durability Test Download

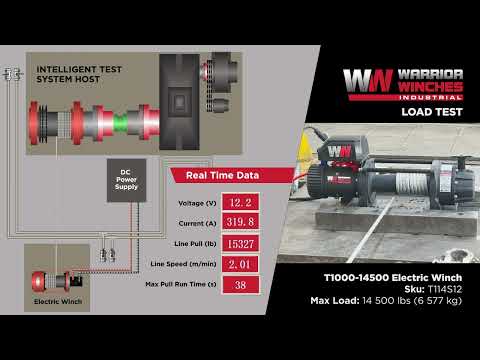

Load Test

Brake Test

Warrior Winches 5 Year Warranty

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 5-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

  • Cosmetic defects such as paint, decals, ,
  • Worn parts due to improper use.
  • Steel ropes
  • Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.
  • Any Accessory part including roller fairleads, hooks and mounting plates.
  • Failures due to acts of God and other force major events beyond the manufacturer’s control
  • Problems caused by parts that are not original WARRIOR WINCH parts
  • Alteration or modification(s) made by any party other than the
  • Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
  • Any third party equipment
  • Batteries

Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here

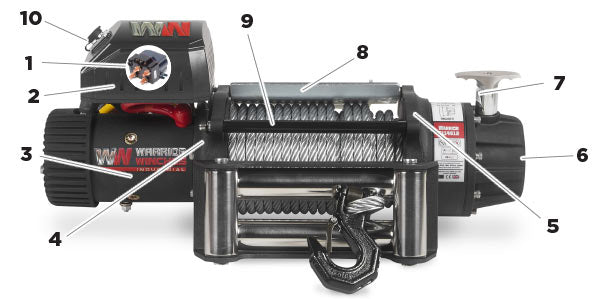

T1000 14,500lb Severe Duty 12v Electric Winch - Steel Rope Parts Image

1 600amp Heavy Duty Contactor CON012-CAD 600amp Heavy Duty Contactor CON012-CAD Translation missing: en.part.general.sale_price $99.99
2 Complete Control box including, Contactor and Wiring CBT-CAD Complete Control box including, Contactor and Wiring CBT-CAD Translation missing: en.part.general.sale_price $279.99
3 Motor T1450100 Motor T1450100 Translation missing: en.part.general.sale_price $249.99
4 Motor Bearing T1000005 Motor Bearing T1000005 Translation missing: en.part.general.sale_price $49.99
5 End Bearing T1000021 End Bearing T1000021 Translation missing: en.part.general.sale_price $49.99
6 Gearbox - GBT125S12 Gearbox - GBT125S12 Translation missing: en.part.general.sale_price $309.99
7 Clutch Assembly T1000800 Clutch Assembly T1000800 Translation missing: en.part.general.sale_price $39.99
8 Cable Tensioner T1001200 Cable Tensioner T1001200 Translation missing: en.part.general.sale_price $79.99
9 Tie Bar T1000017 Tie Bar T1000017 Translation missing: en.part.general.sale_price $29.99
10 Control Box Socket For T1000 Winches EXT4SN-CAD Control Box Socket For T1000 Winches EXT4SN-CAD Translation missing: en.part.general.sale_price $39.99
