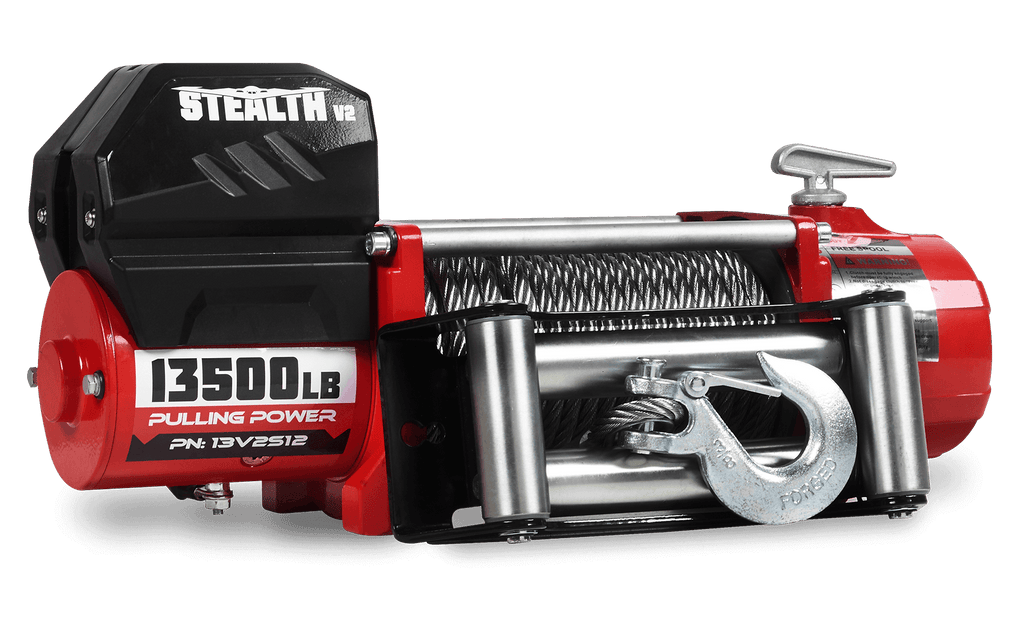

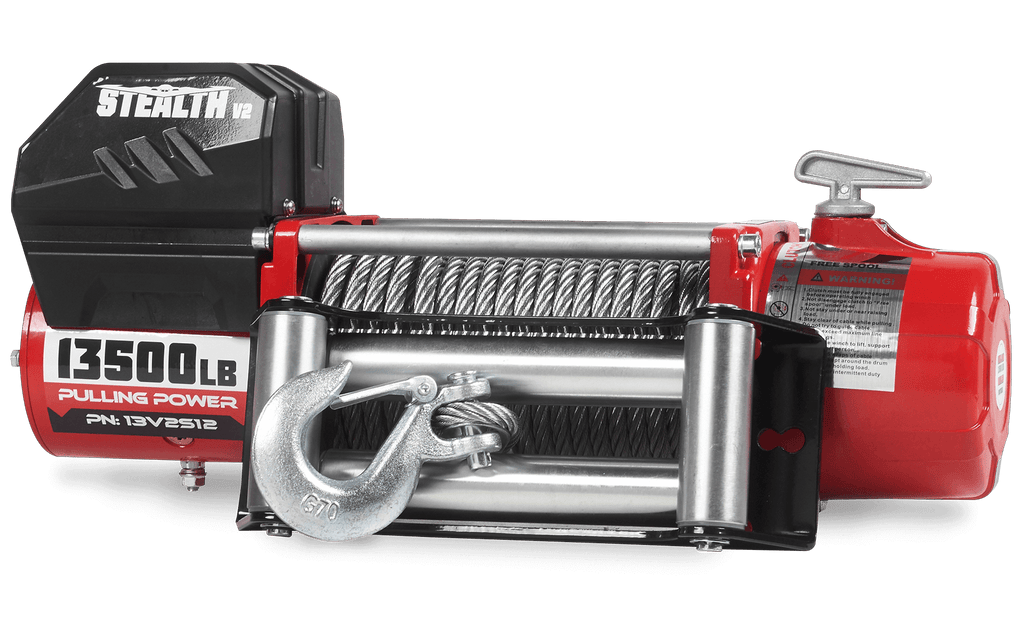

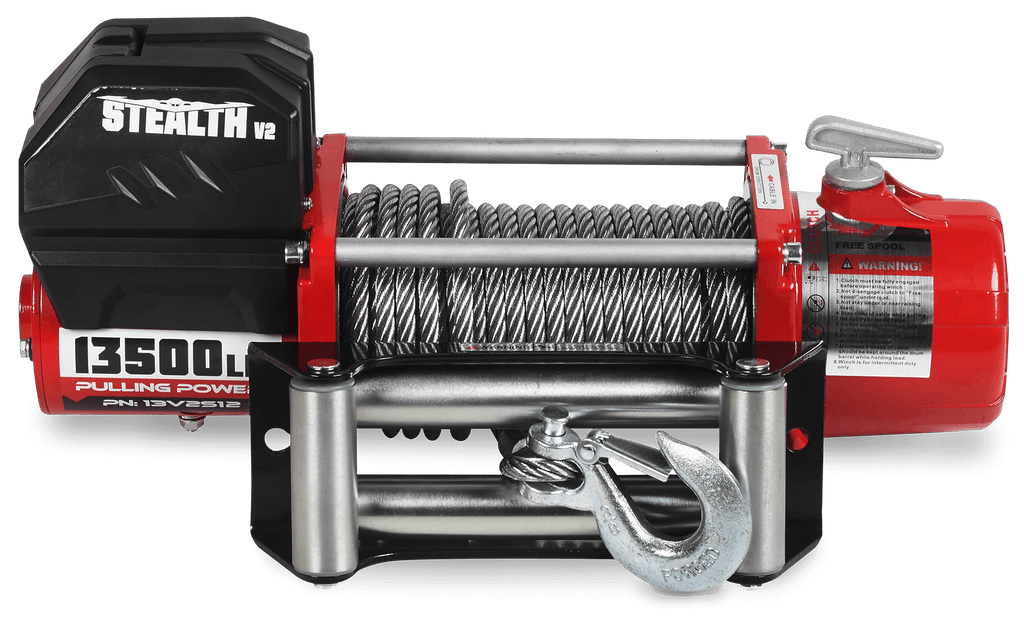

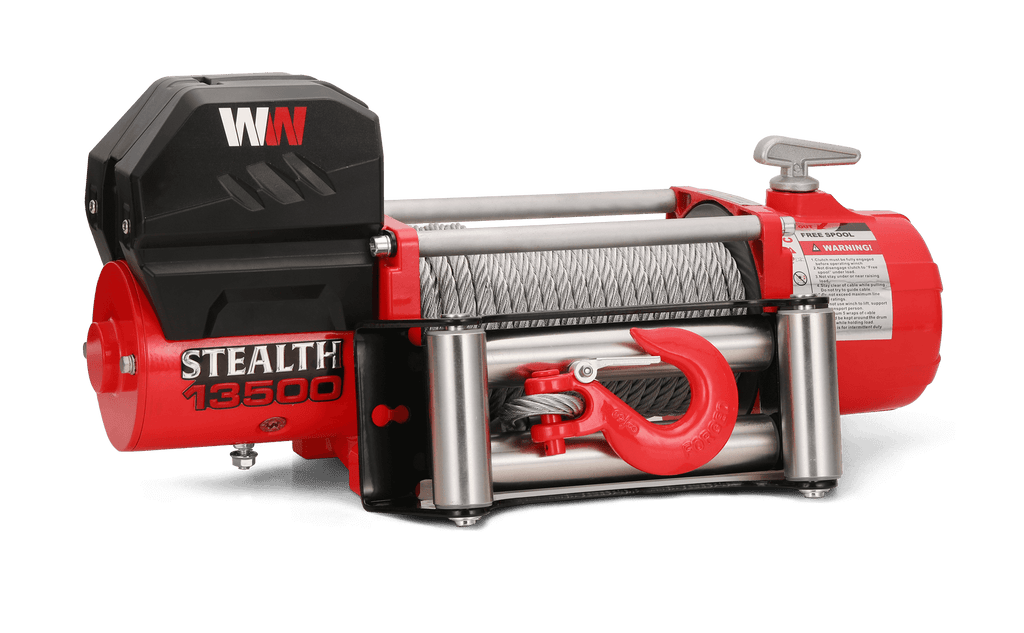

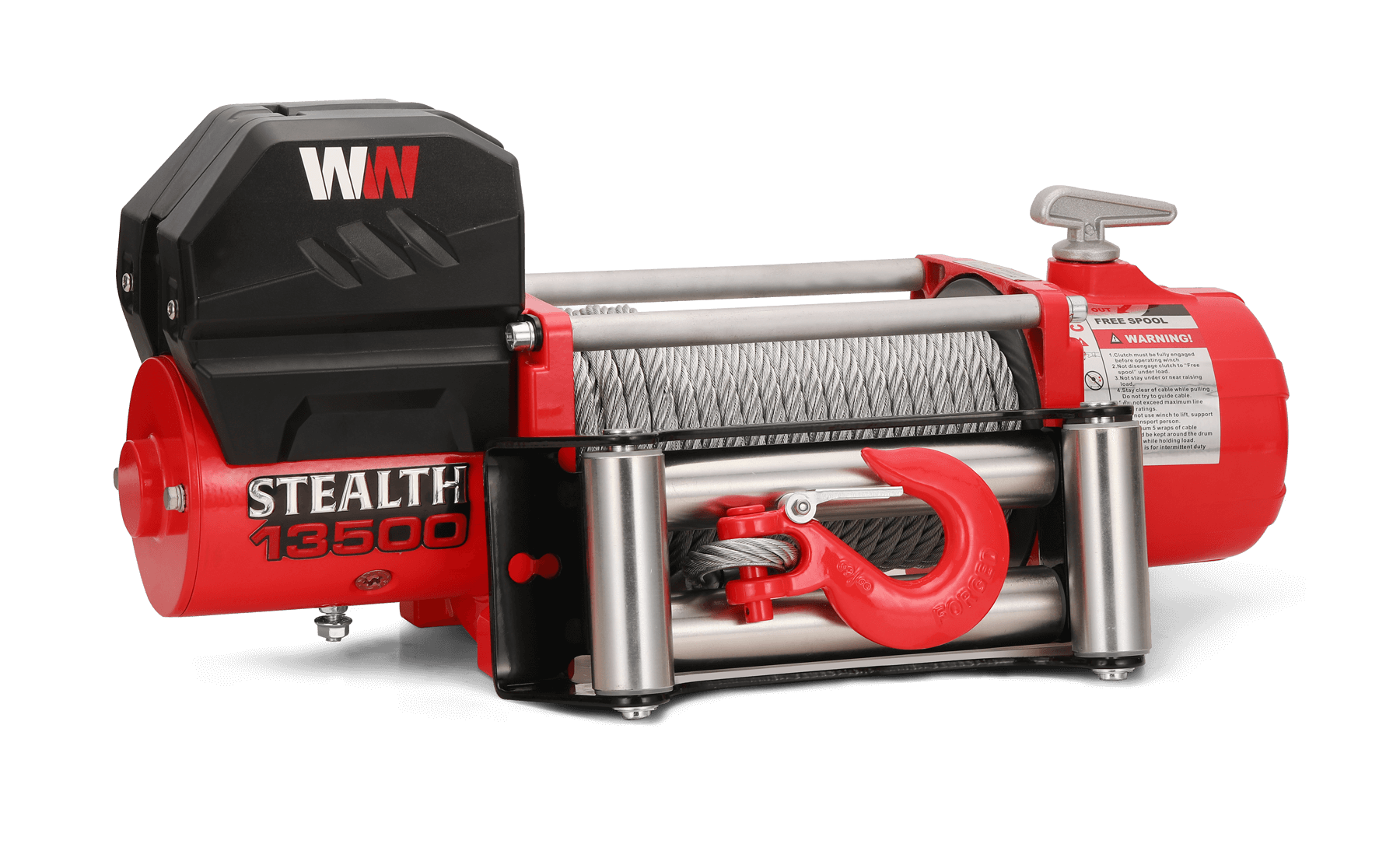

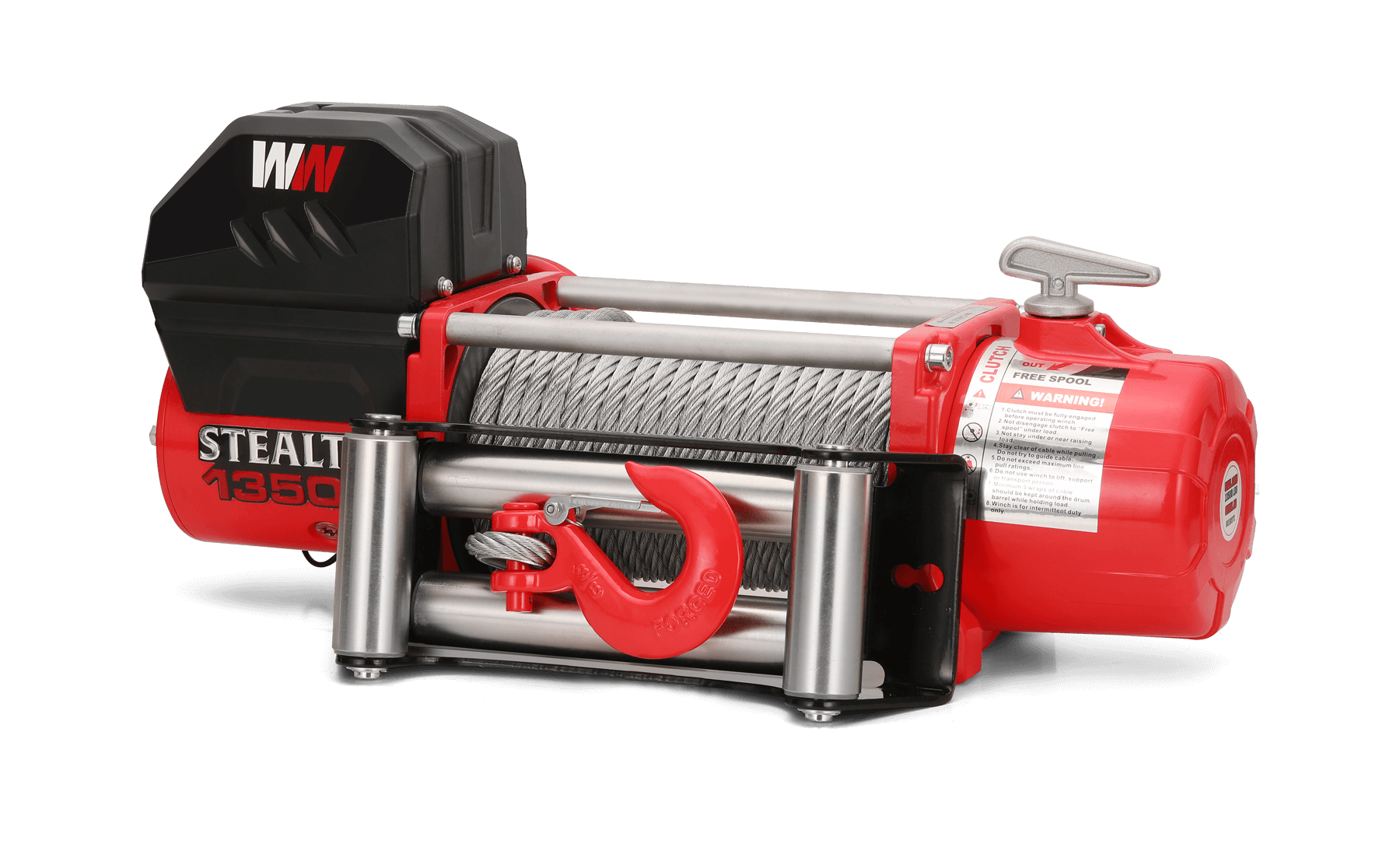

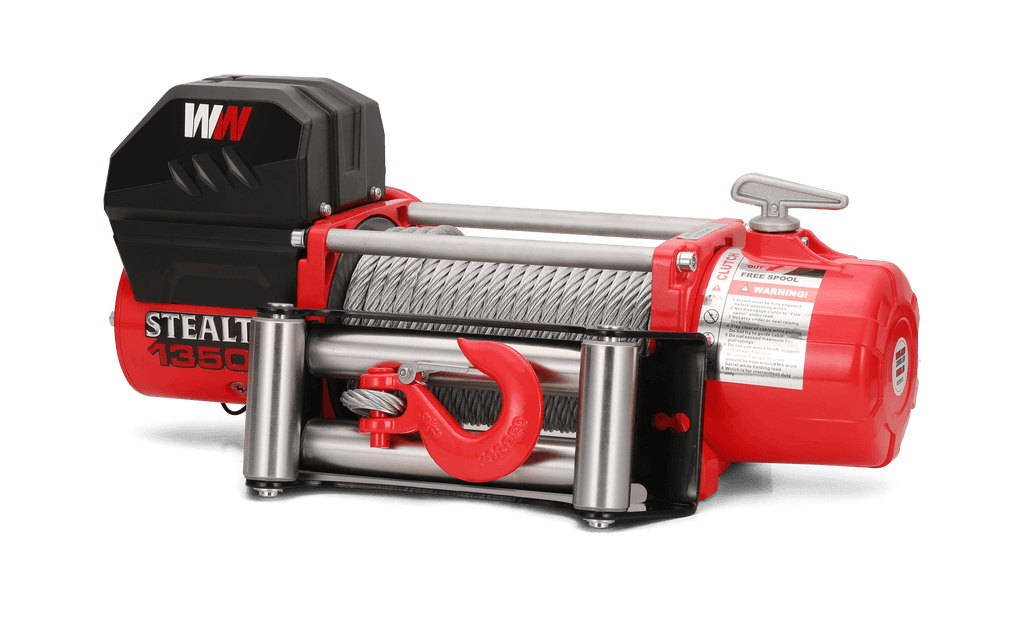

Stealth 13,500lb 12v Electric Winch - Steel Rope

| 1 Questions Answered SKU: 13V2S12-CAD

Price:
Sale price$349.99 Regular price$369.99
In stock (Delivery in 2-7 days)
check mark
You may also like:

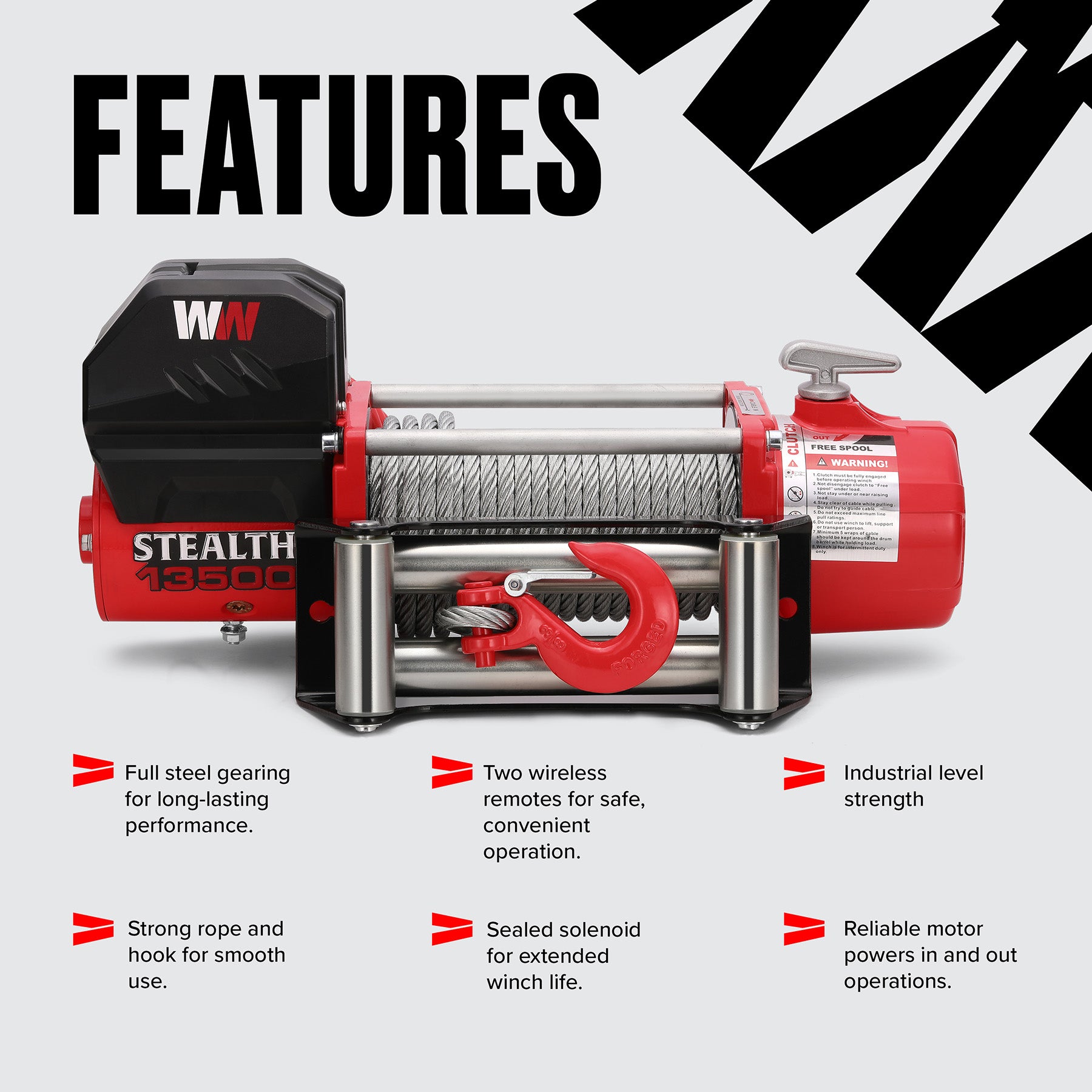

Features

  • High Line Capacity 13500lb Handles demanding pulling and recovery tasks, making it ideal for large vehicles and heavy equipment.
  • 20m x 10mm durable steel cable featuring a clevis hook and handsaver strap for safety and ease of use.
  • Reversible 6.1hp 12 v Permanent Magnet Motor Provides reliable power to both pull in and out, enhancing the efficiency and versatility of the winch.
  • Freespooling Clutch Gearbox Allows for manual unwinding of the cable, giving users more control over rope deployment during setup.

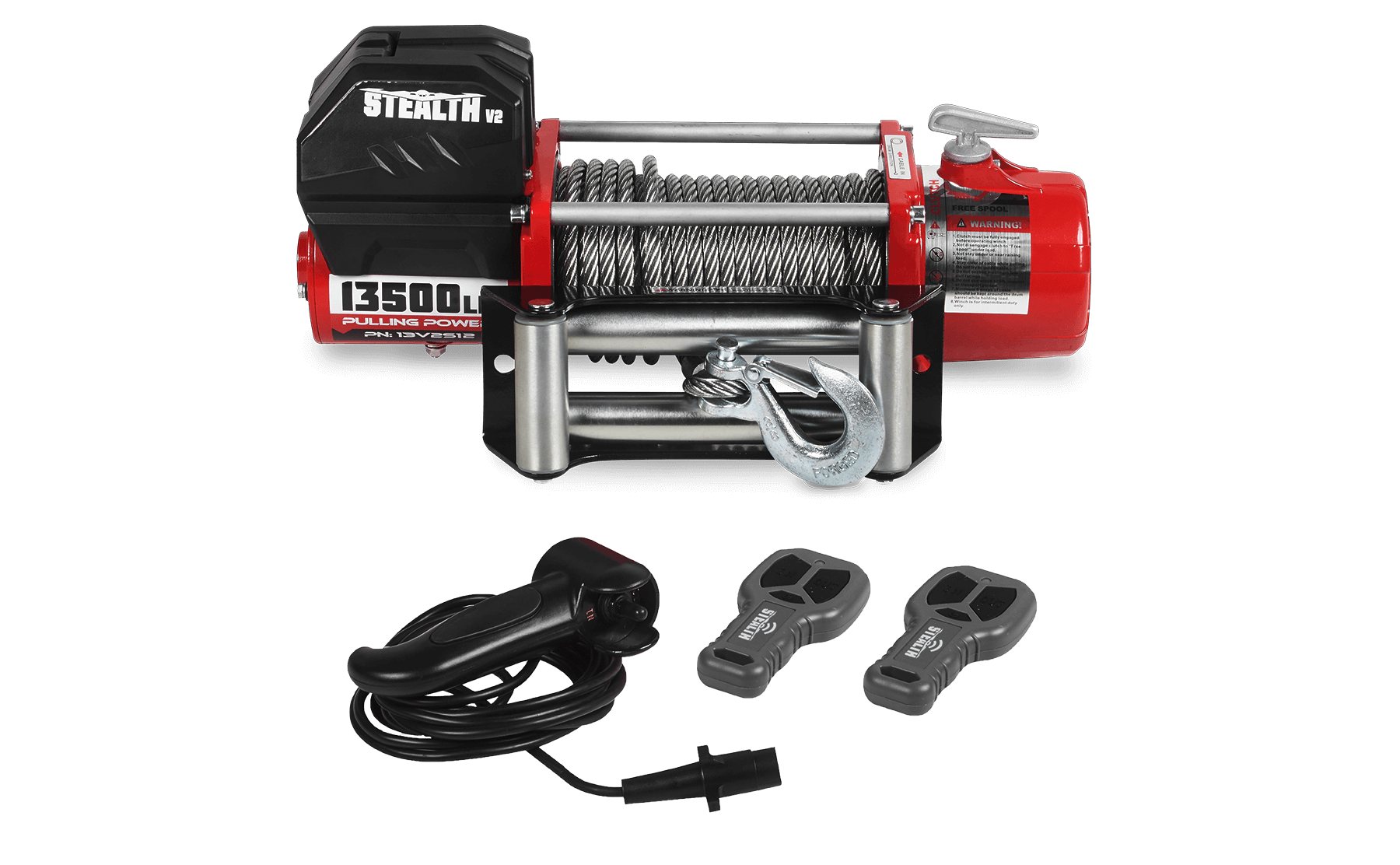

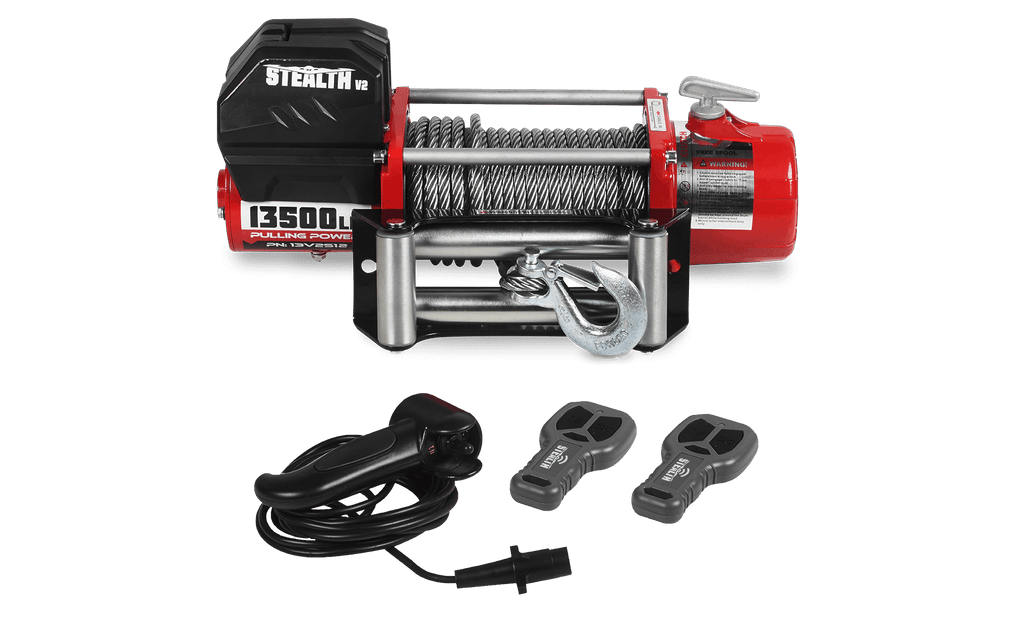

  • Versatile Accessories Includes a wired hand control, wireless control with two handsets, mounting plate, fairlead options (4-way roller or hawse), and mounting bolts for easy installation and smooth operation.

The Stealth Winch range has been growing stronger since its inception, ranging from 3500lb to 135000lb the Stealth Electric Winch is the latest example of why this brand continues to be a top choice for enthusiasts and professionals alike.

The Stealth is truly in a class of its own, delivering exceptional value with features you won’t find in other winches at this price point. From a powerful copper-wound motor to full steel gearing, heavy-duty sealed solenoid, and a brand-new integrated wireless control system (including TWO handsets), this winch is built to perform.

Whether you’re recovering a vehicle, pulling a boat, or tackling any tough job, the Stealth is equipped with everything you need. it comes to quality and value, the Stealth range is the best budget winch brand available online.

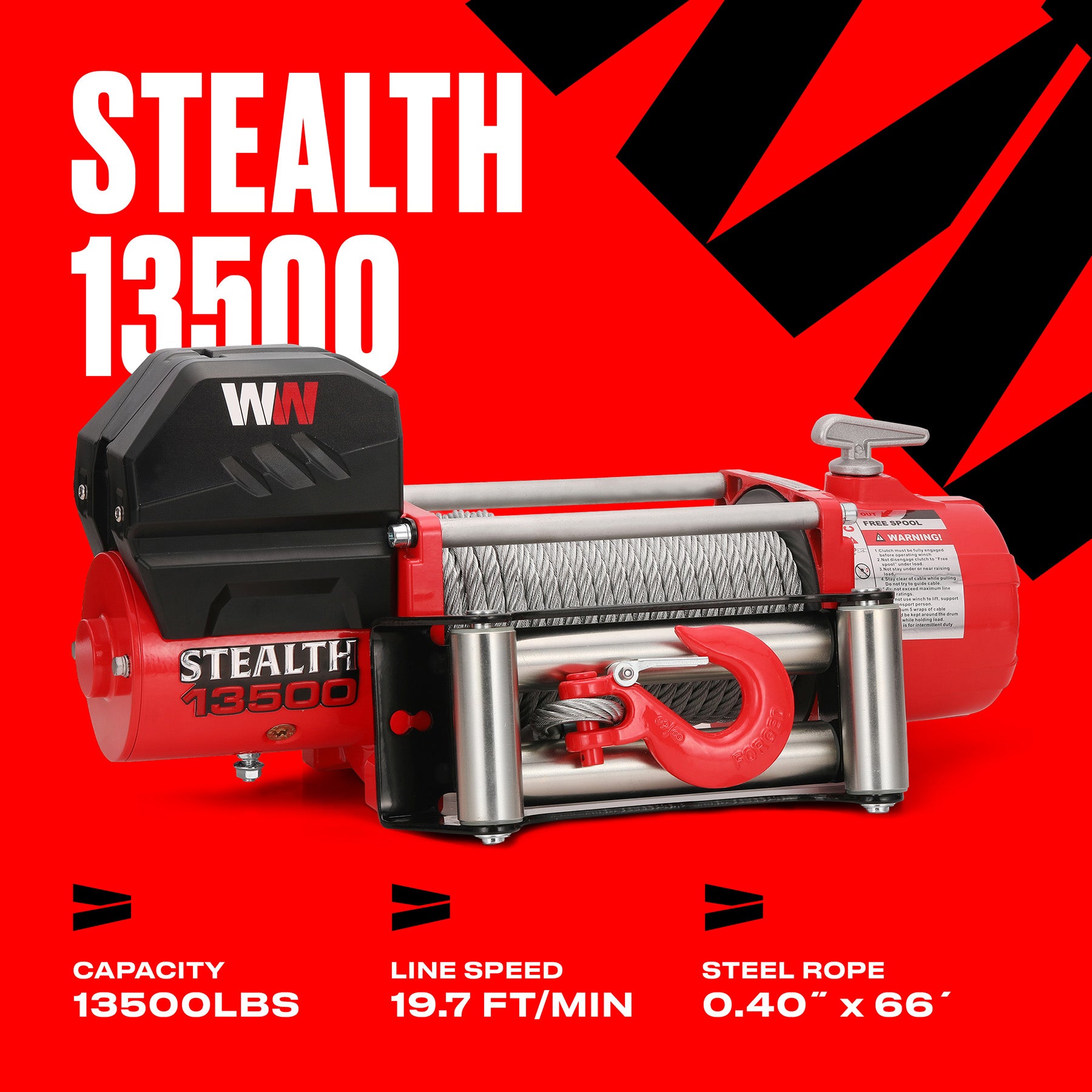

Rated Line Pull13500 lbs
Motor Type12V: Input: 6.1hp / 4.6 kW; Output: 2.8hp / 2.1 kW
ClutchManual
Gearing265:1
Gearing SystemPlanetary
Braking ActionAuto in the drum
Controls2x Wireless Remotes, Wired Remote
Cable MaterialSteel
Cable Size (Diameter x Length)65.62ft x 0.4 in
FairleadRoller

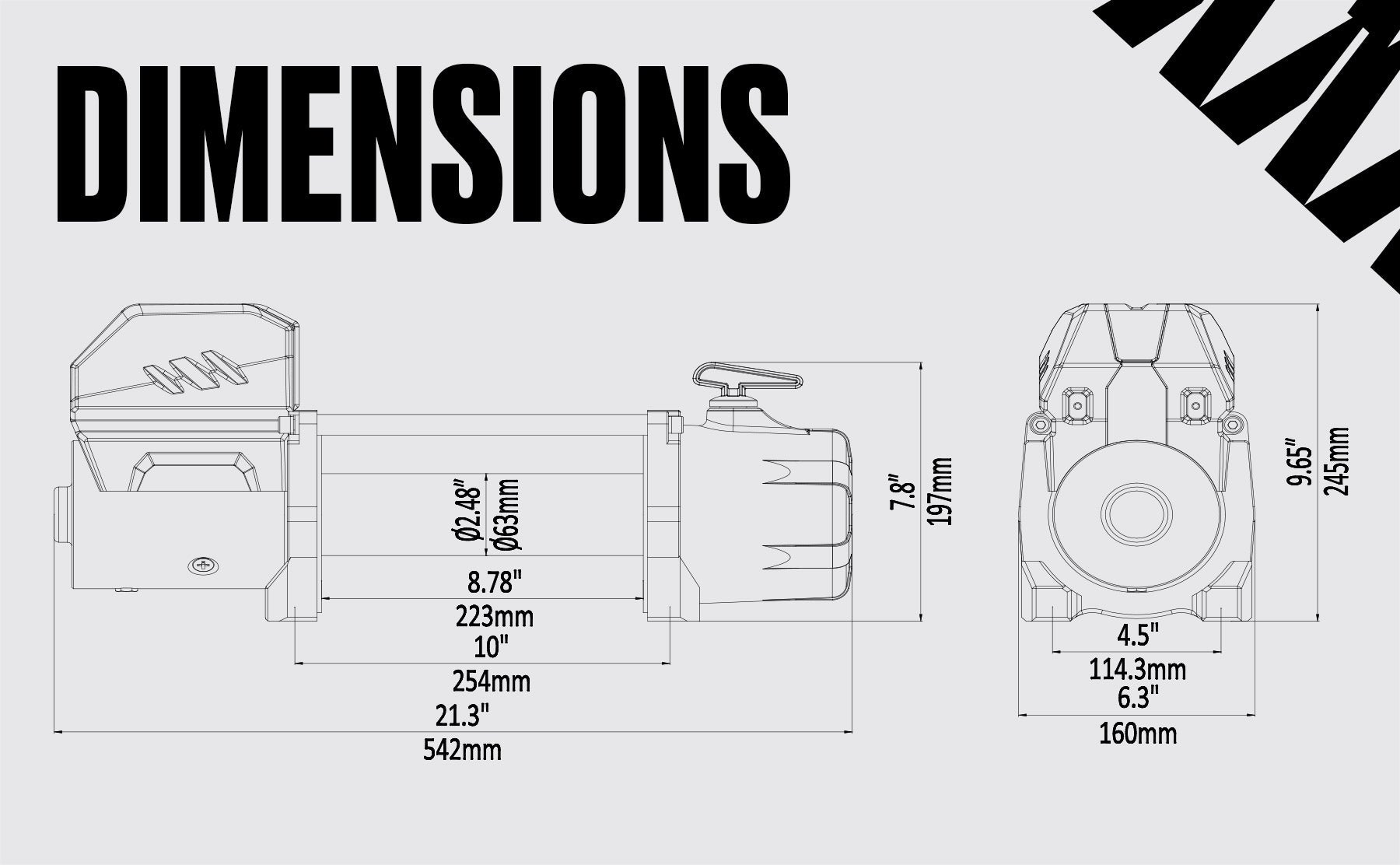

Mounting Pattern10 “×4.5 “ (254mm×114.3 mm)
Dimensions21.34 x 6.3 x 9.65 in
Weight77 lbs
Waterproof Rating (IP)54
CertificationCE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 13 500 (6 123) 16.1 (4.9)
2 10 596 (4 806) 36.4 (11.1)
3 8 720 (3 955) 60.0 (18.3)
4 7 408 (3 360) 65.6 (20.0)


Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 19.7 (6.0) 20.6 (6.3) 72  50
4000 (1818) 10.5 (3.2) 11.5 (3.5) 180 120
8000 (3629)  7.5 (2.3) 8.9 (2.7) 265 180
12000 (5443) 5.2 (1.6) 6.9 (2.1) 360 240
13500 (6123) 3.9 (1.2) 5.2 (1.6) 390 270

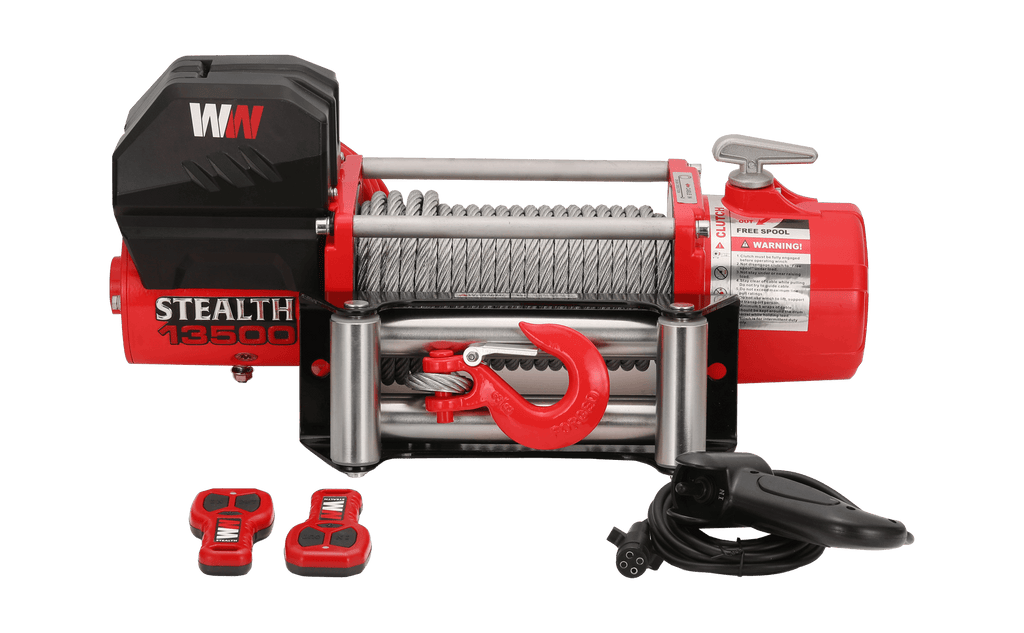

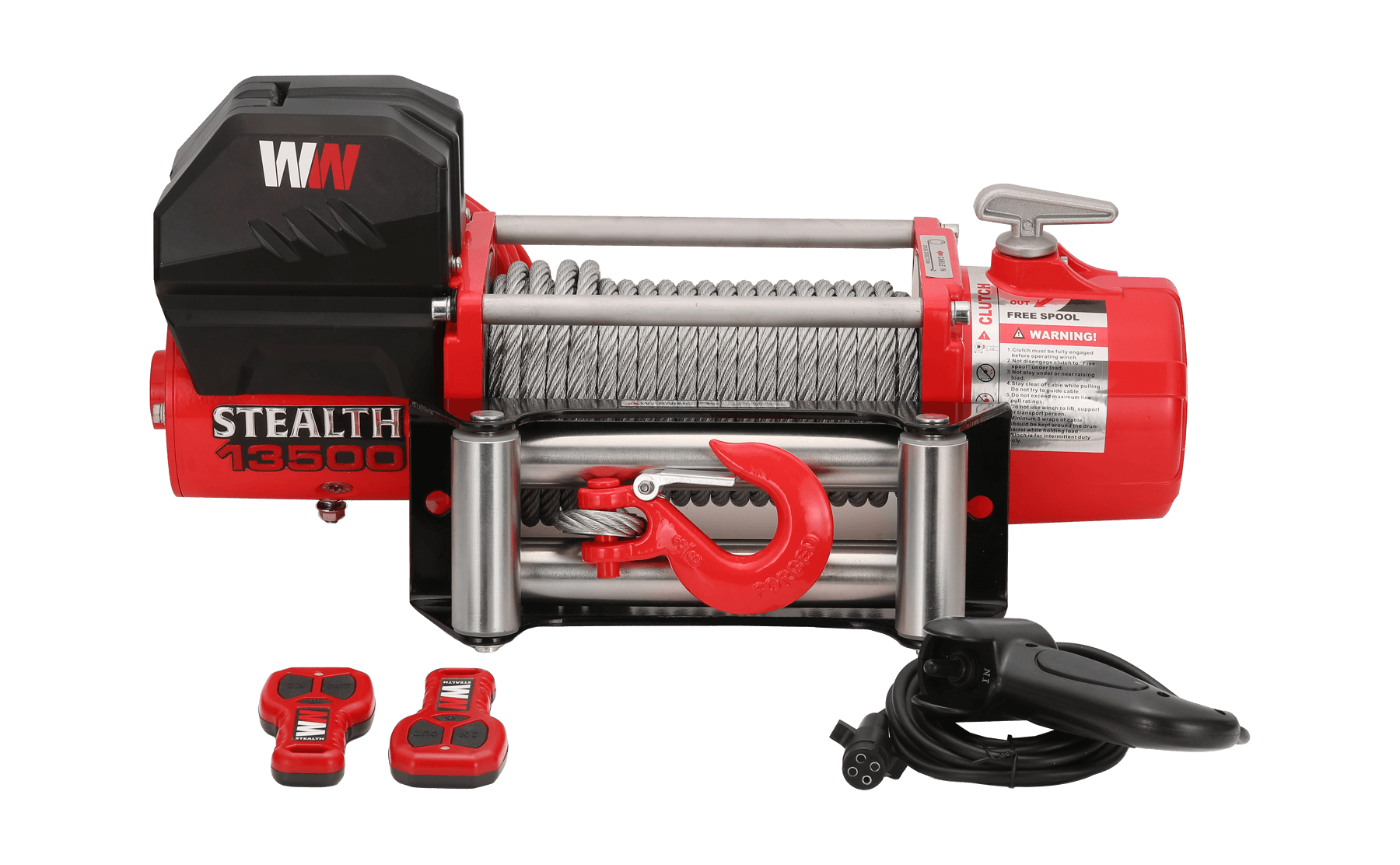

  • Stealth Winch
  • 65.6ft Steel
  • Wired Hand Control: 12.8ft Wired Hand Control

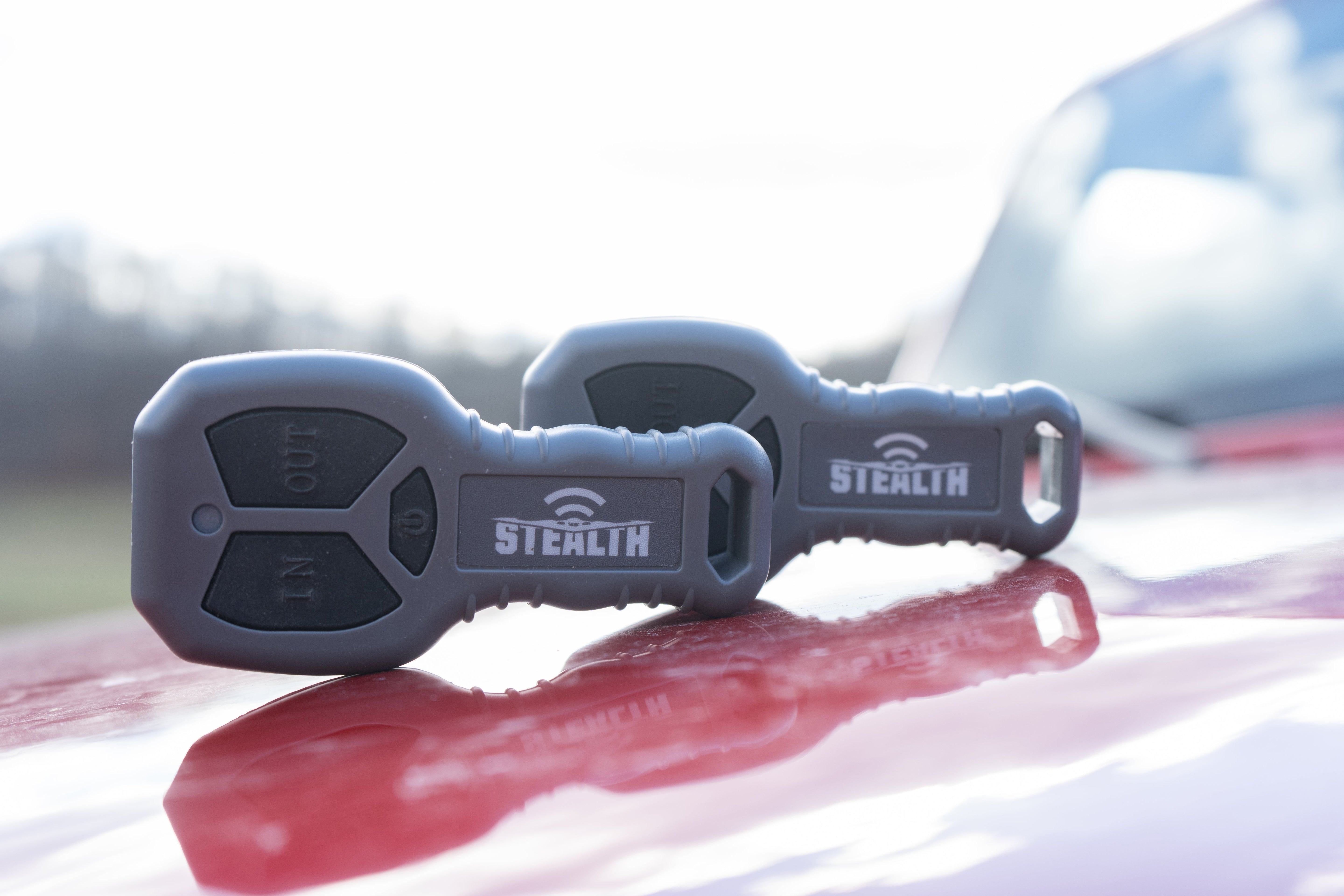

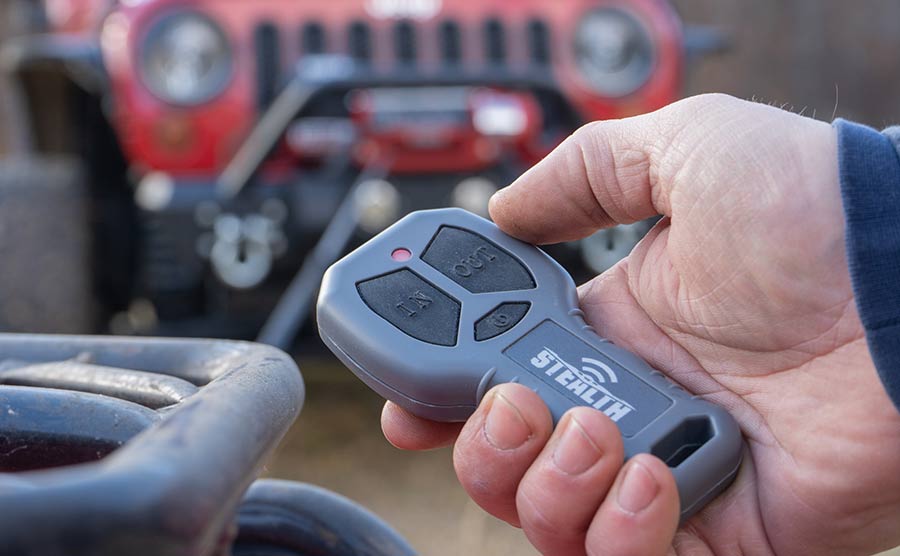

  • Wireless Control: Includes Two Wireless Controls*
  • Fairlead: 4-Way Roller Fairlead
  • Mounting Bolts: Included for Standard installations
  • Battery Cables (May need extending dependent on application)
  • Hand Saver
  • Instruction Manual
User Manual Download
Specifications Sheet  Download
Parts list  Download

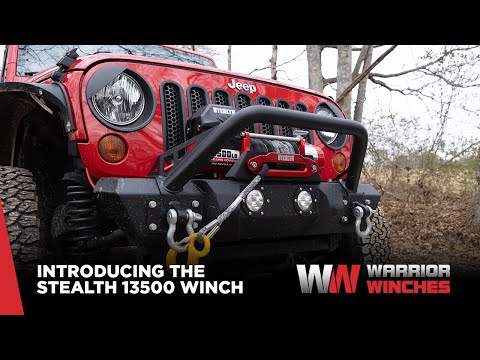

Video

Load Test

This winch has a 3 Year Warranty

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our TrojanStealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 3-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.


- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here



Reviews and Q&A.

  • how many ft is the rope or up to how many ft the rope can it be spool

    Thanks for your enquiry.  Keep at least 5 full wraps of cable on the spool, (Usually marked red on the winch cable at the drum end) at any one time
