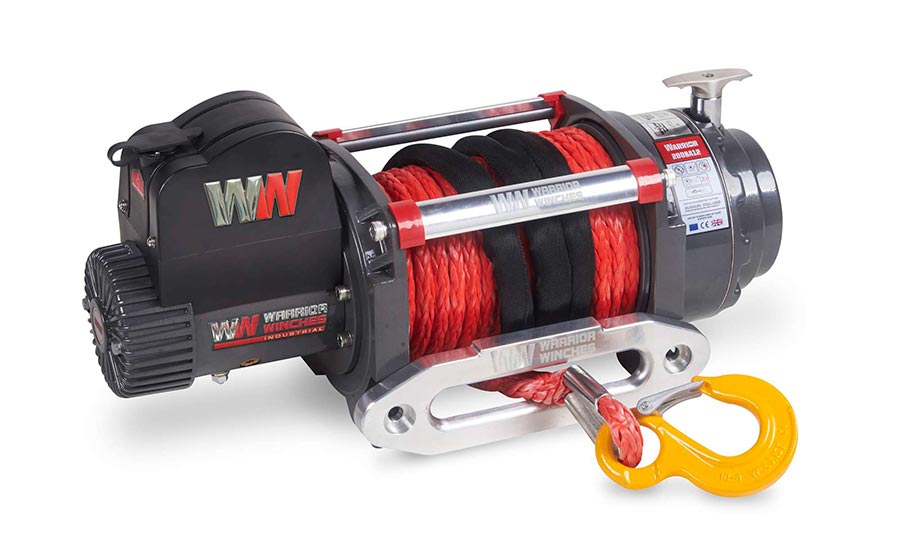

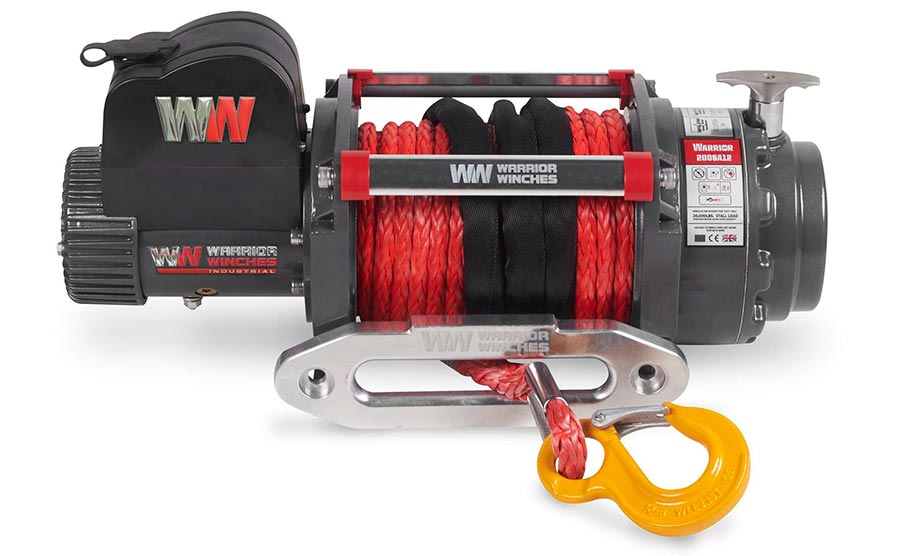

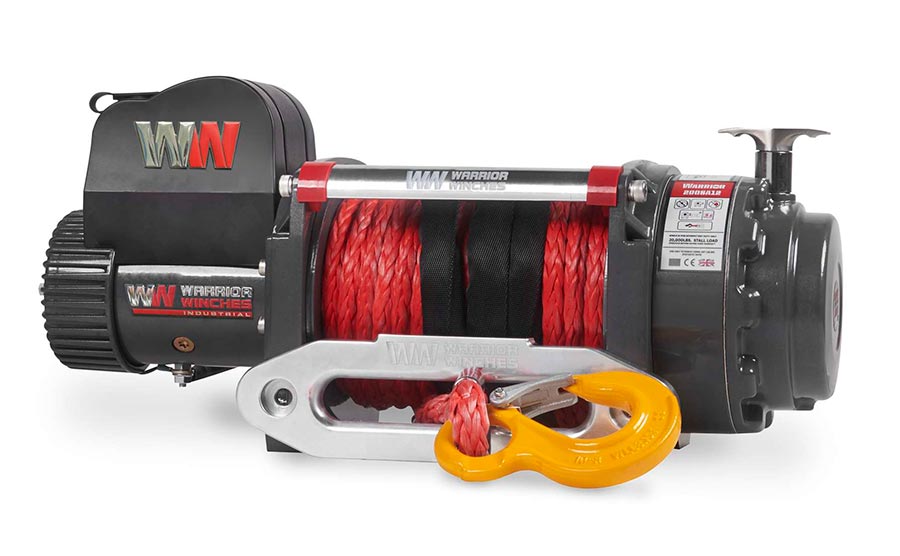

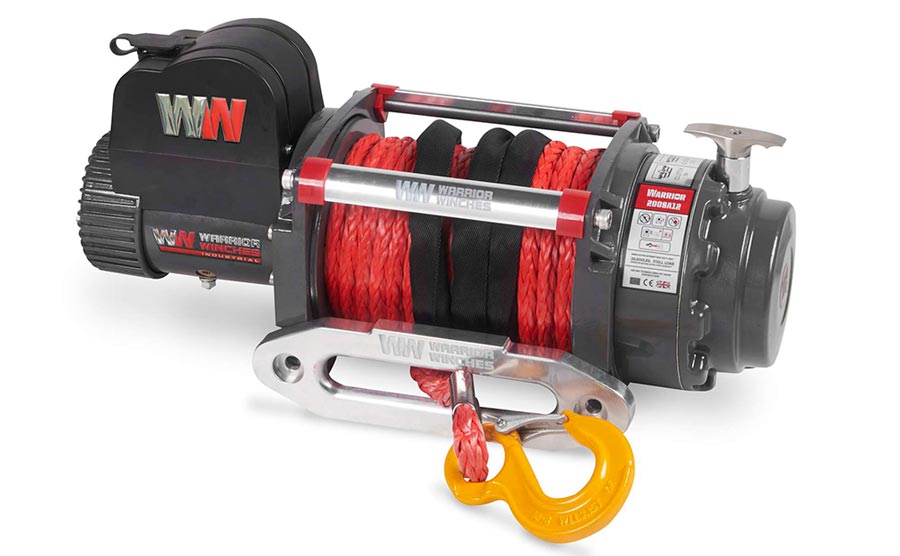

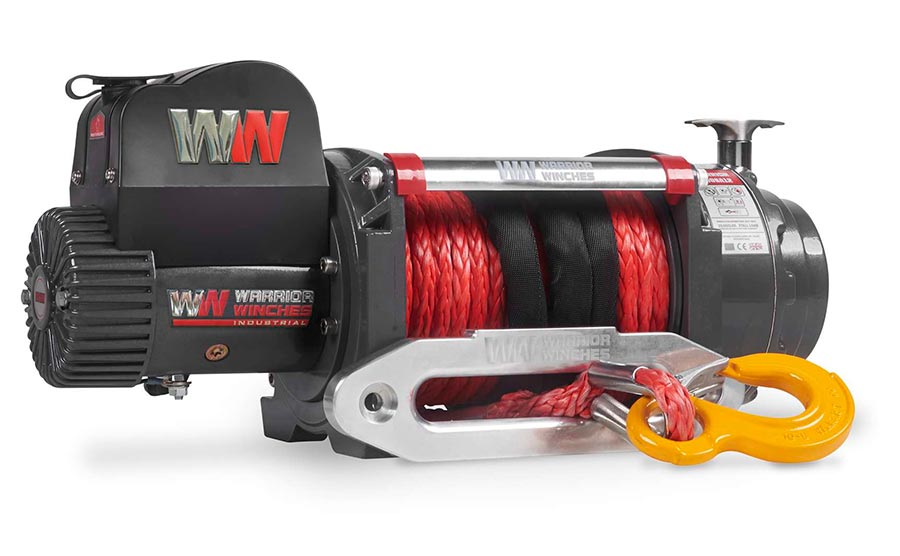

Samurai 20,000lb 12v Electric Winch - Synthetic Rope

 0 Reviews |  Ask a Question SKU: 200SA12-CAD


Features

  • All Brass (no corrosion) Series Wound Motor
  • Double Sealed Motor
  • Sealed Waterproof Contactor
  • Sealed 3 Stage Planetary Gears
  • Contactor Cover for Added Protection

Warrior Winches are excited to announce the arrival of the colossal Samurai 20000lb Winch. Designed for the toughest of applications & tested in the most extreme environments imaginable, this great piece of kit boasts a massive 7.5 hp Series wound motor, which is housed in full steel supports, ensuring this immense Warrior is ready for any battle.

Available in 12v this Beast comes packed with all the features you would expect from the Samurai Range, the motor and gearbox are fully double sealed, the high spec motor boasts brass internals, all the external fittings are stainless steel & the smooth planetary gearing is full steel. All this is backed up by the unrivalled Warrior Lifetime Warranty.

Rated Line Pull 20000 lbs (9072 kgs)
Motor Type 12V: Input: 5.8kW / 7.8hp Output: 3.1 kW /4.1hp
Gearing 430:1

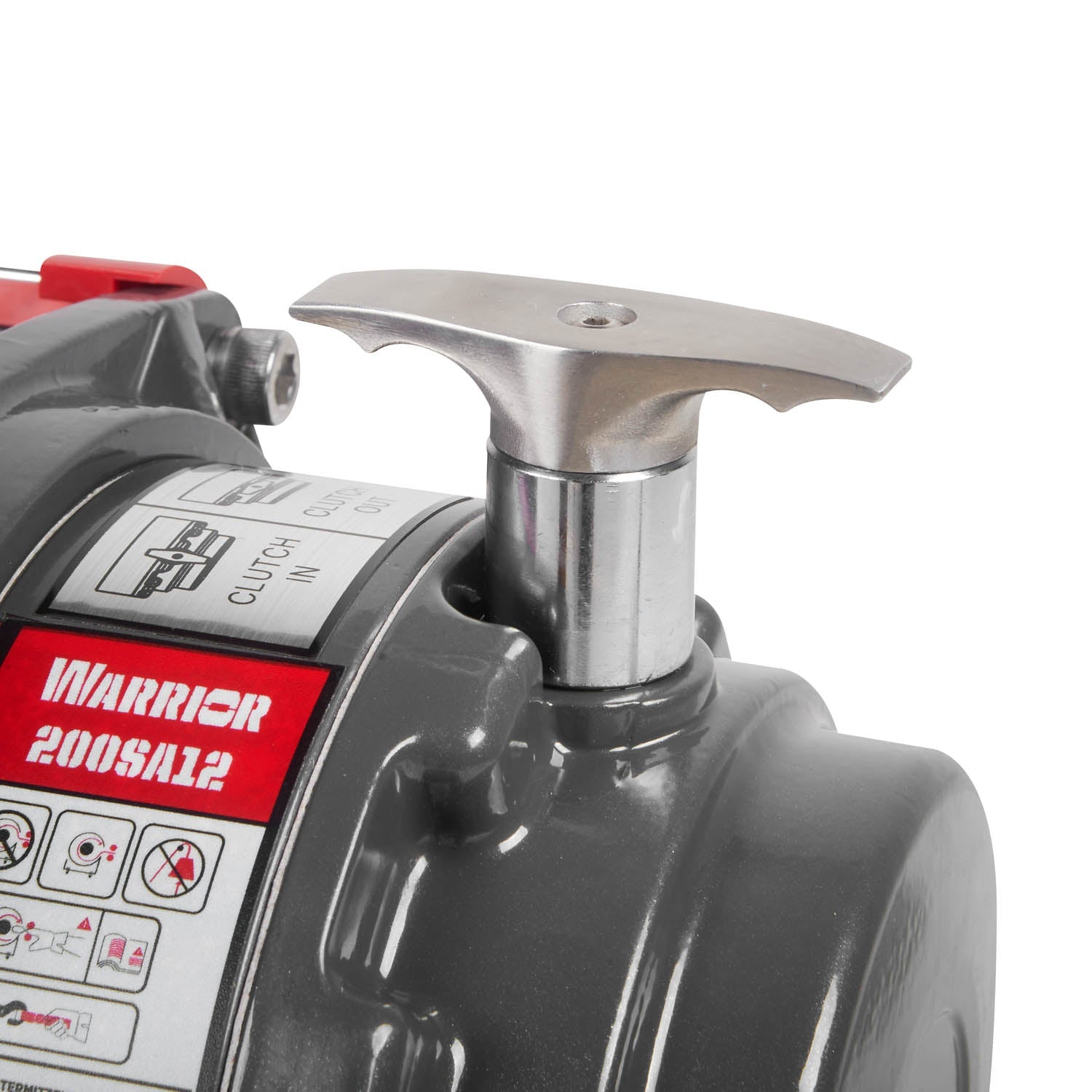

Clutch Manual
Braking Action Auto in the drum
Drum Size (Dia x L) Ø3.5“×8.5 “ (Ø89mm×217 mm)
Cable Material S Synthetic
Cable – Dia x L Synth: Ø15/32”×82 ‘ (Ø12mm×25m)

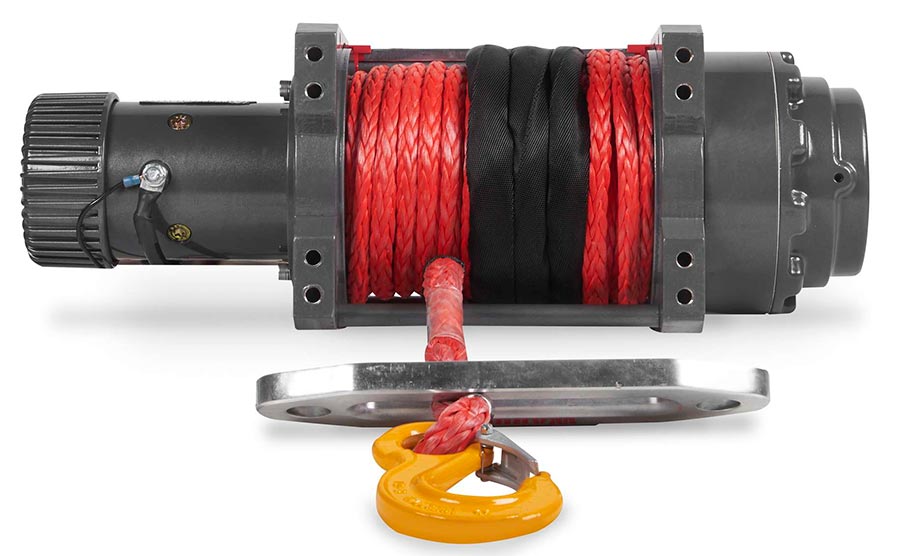

Mounting Pattern 10" x 4.4"
Dimensions 24.4”×8.4”×11.1” (620 mm ×214mm ×282mm)
Certification CE



Layer of Rope/Cable Line Pull: lbs(kgs)
1 20000 (9072)
2 16160 (7330)
3 13557 (6149)
4 11677 (5297)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 21.3 (6.5) 100
6000 (2728) 7.2 (2.2) 220
10000 (4545) 5.6 (1.7) 320
12500 (5682) 4.9 (1.5) 350
14000 (6350) 4.6 (1.4) 380
17500 (7938) 3.0 (0.9) 450
20000 (9072) 3.0 (0.9) 480

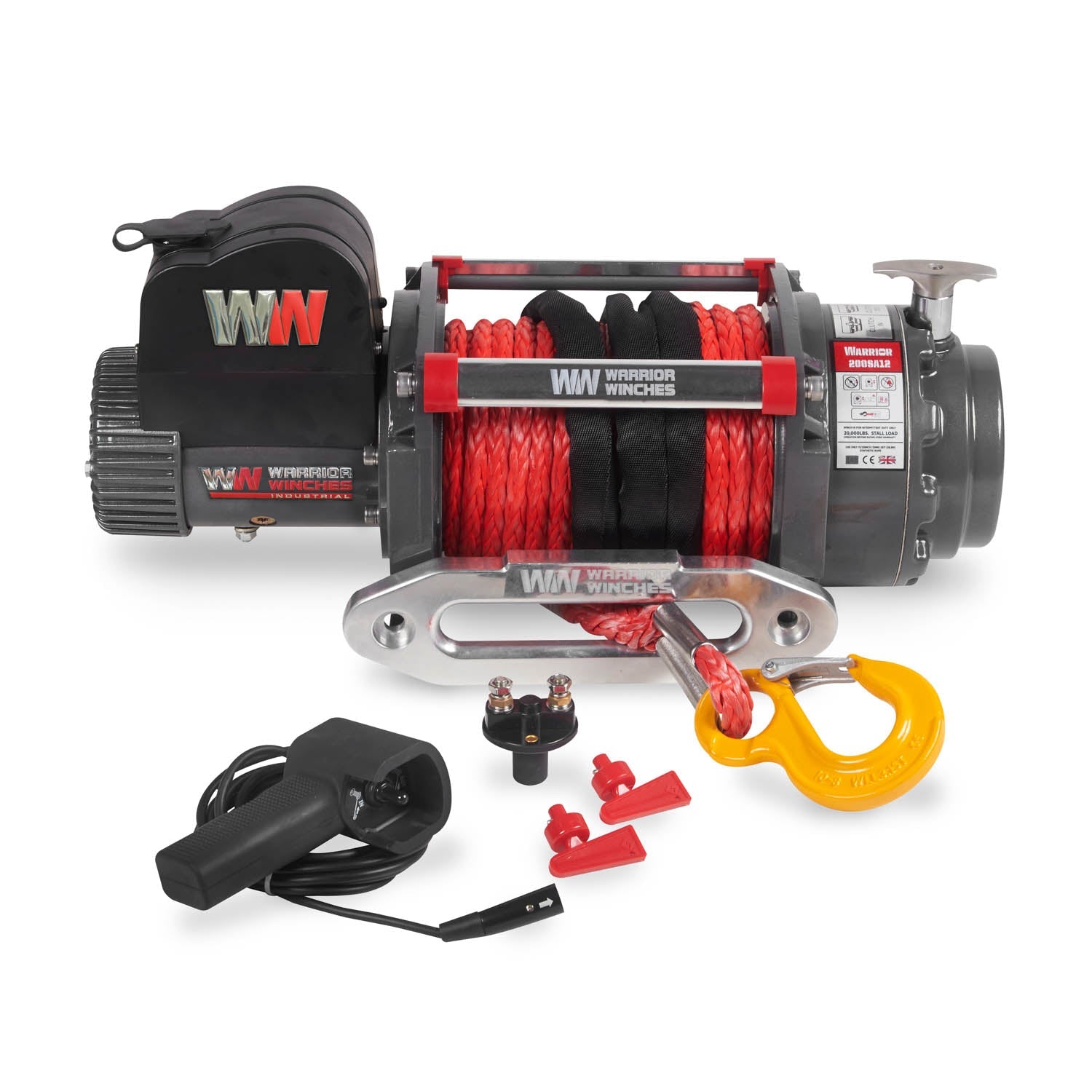

  • Samurai Winch
  • Aluminum Hawse Fairlead
  • Synthetic Rope
  • Heavy Duty Battery Leads
  • 12.4 FT Wired Remote handset
  • 3/8 Hook
  • Isolation Switch
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Technical Drawing Download
Brochure Download
Specifications Sheet  Download
Parts list  Download
Durability Test Download

Load Test

Brake Test

Warrior Winches 5 Year Warranty

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 5-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.
- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here



Samurai 20,000lb 12v Electric Winch - Synthetic Rope Parts Image

1 600amp Heavy Duty Contactor CON012-CAD 600amp Heavy Duty Contactor CON012-CAD Translation missing: en.part.general.sale_price $99.99
2 Complete Control box including, Contactor and Wiring CBS20-CAD Complete Control box including, Contactor and Wiring CBS20-CAD Translation missing: en.part.general.sale_price $269.99
3 Motor - S2000100 Motor - S2000100 Translation missing: en.part.general.sale_price $299.99
4 Motor Bracket S2000005 Motor Bracket S2000005   View
5 End Bearing S2000011 End Bearing S2000011   View
6 Gearbox  GBT200SS12 Gearbox GBT200SS12   View
7 Clutch Assembly S2000700 Clutch Assembly S2000700   View
8 Tie Bar  S2000008 Tie Bar S2000008 Translation missing: en.part.general.sale_price $39.99
9 Control Box Socket For Samurai Models SCK4S1-CAD Control Box Socket For Samurai Models SCK4S1-CAD Translation missing: en.part.general.sale_price $25.99

Download complete parts list
