18RVSHY-CAD

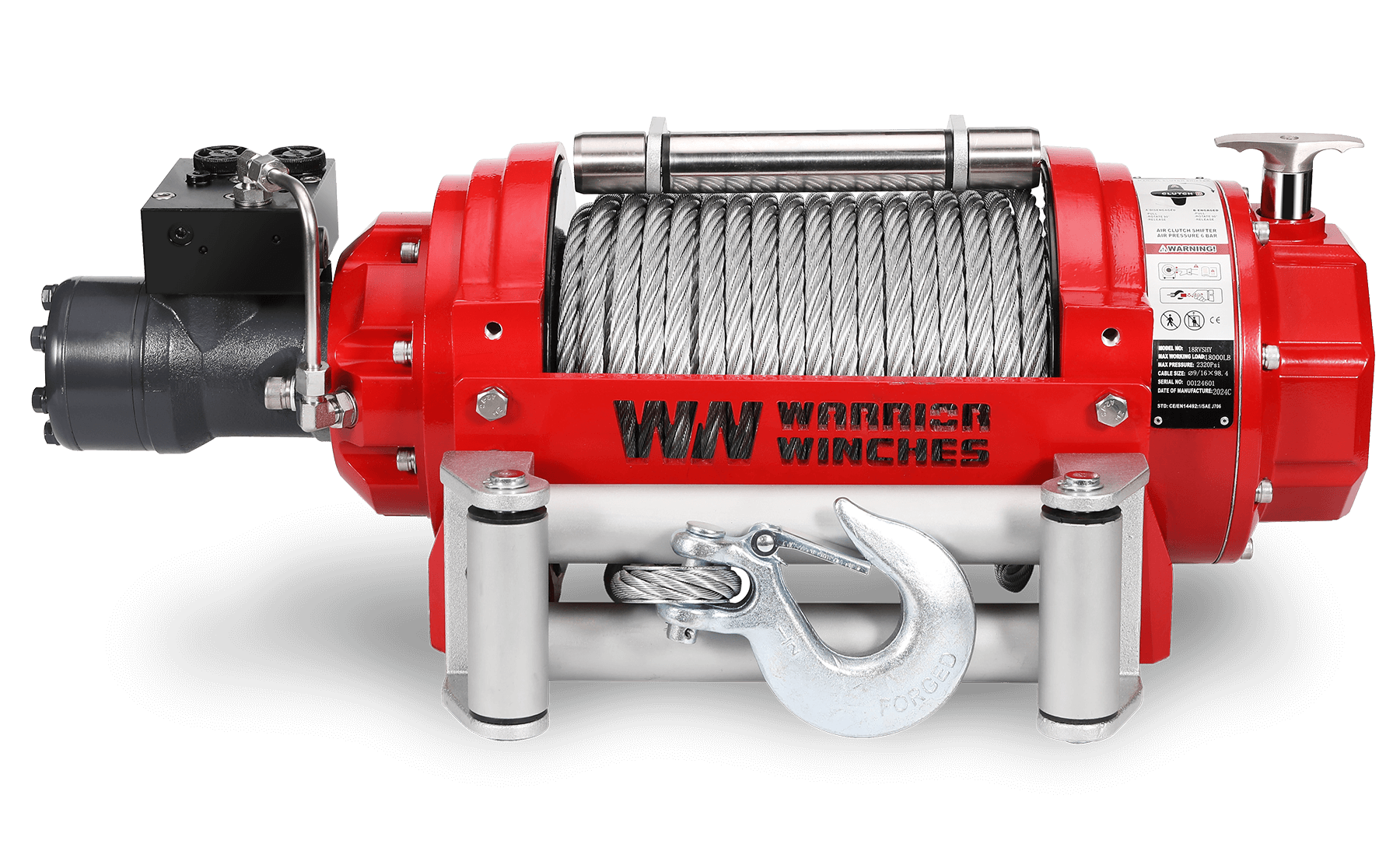

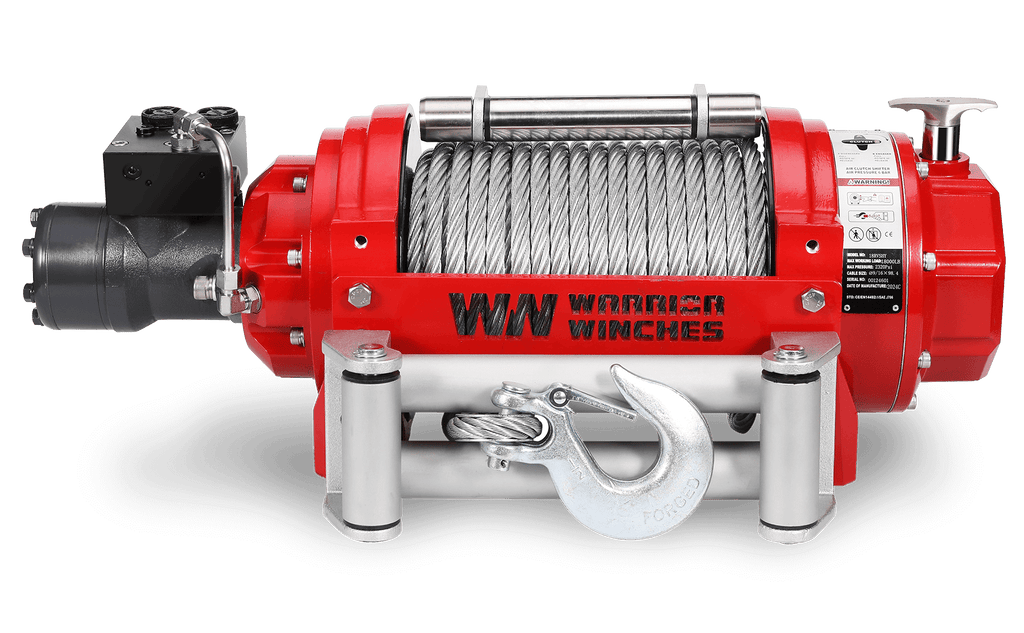

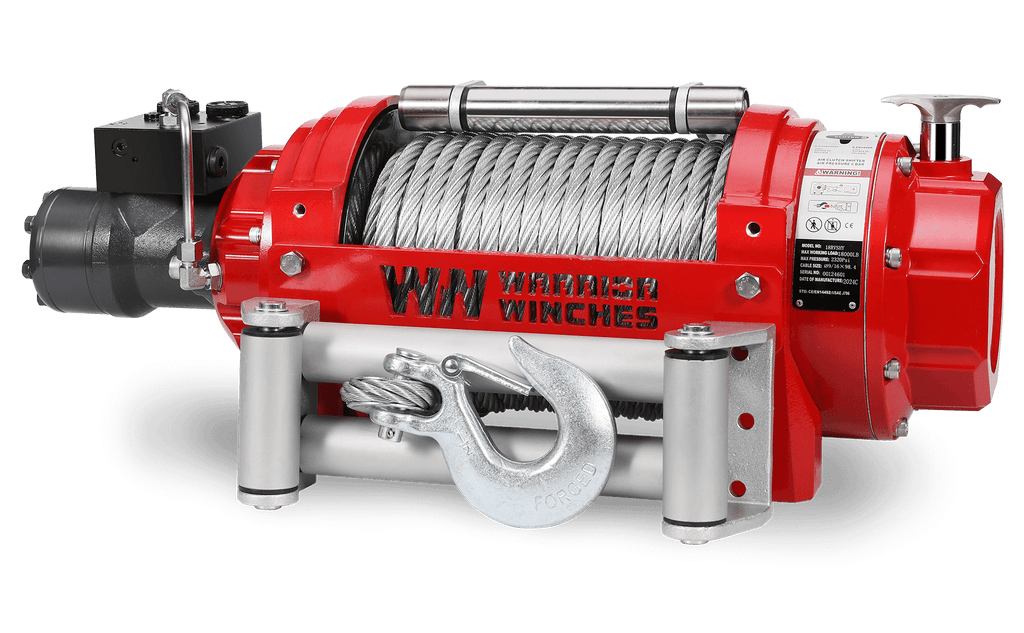

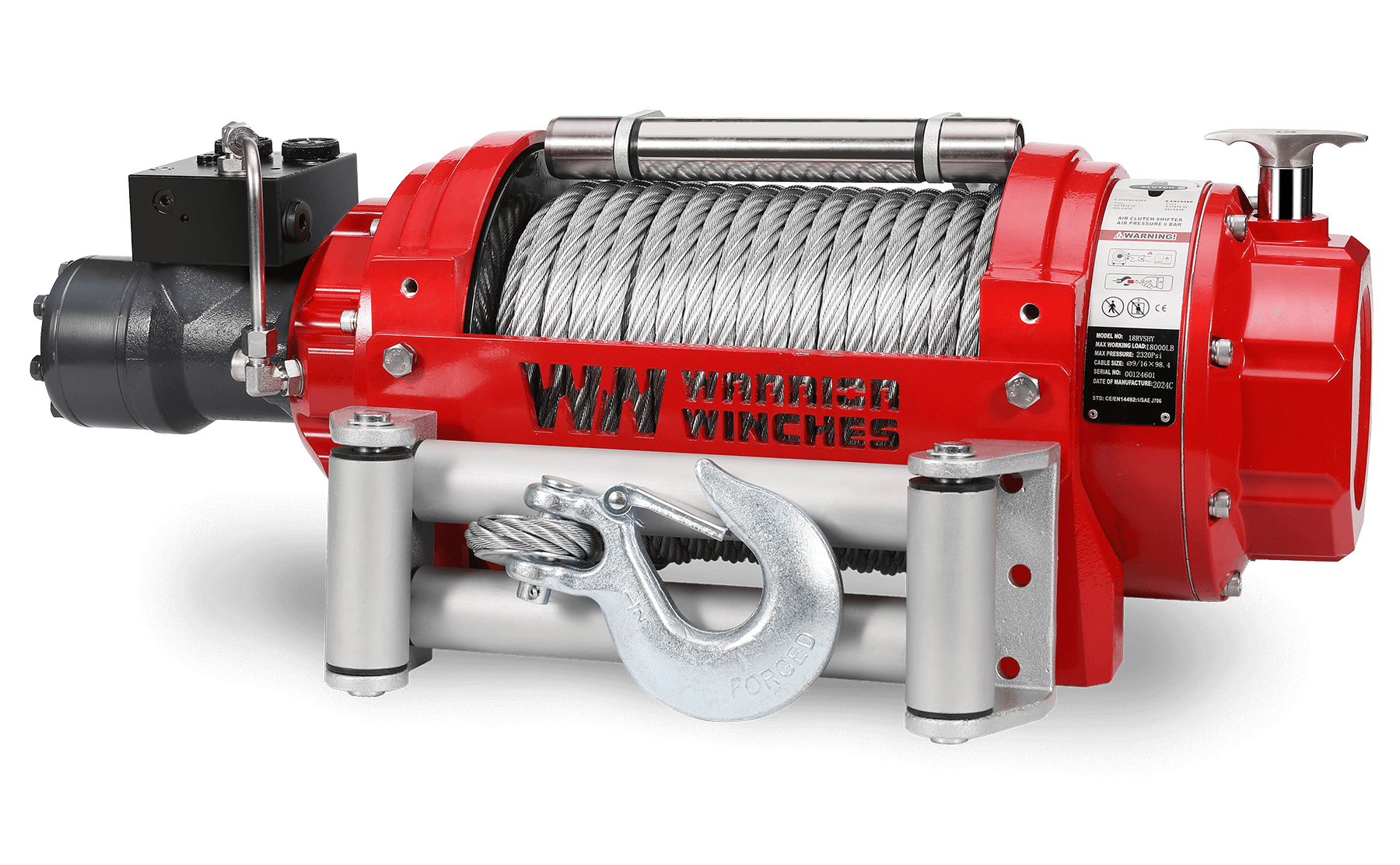

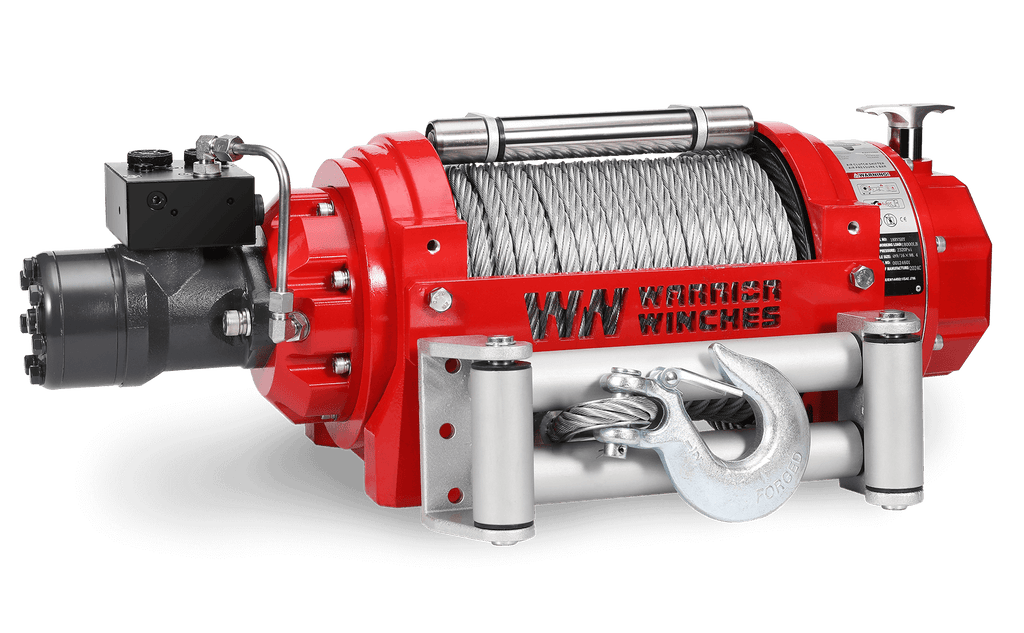

RV18 18,000lb (8.1 Ton) Industrial Hydraulic Winch - Steel Rope

Sale price$2,999.99
Sold out

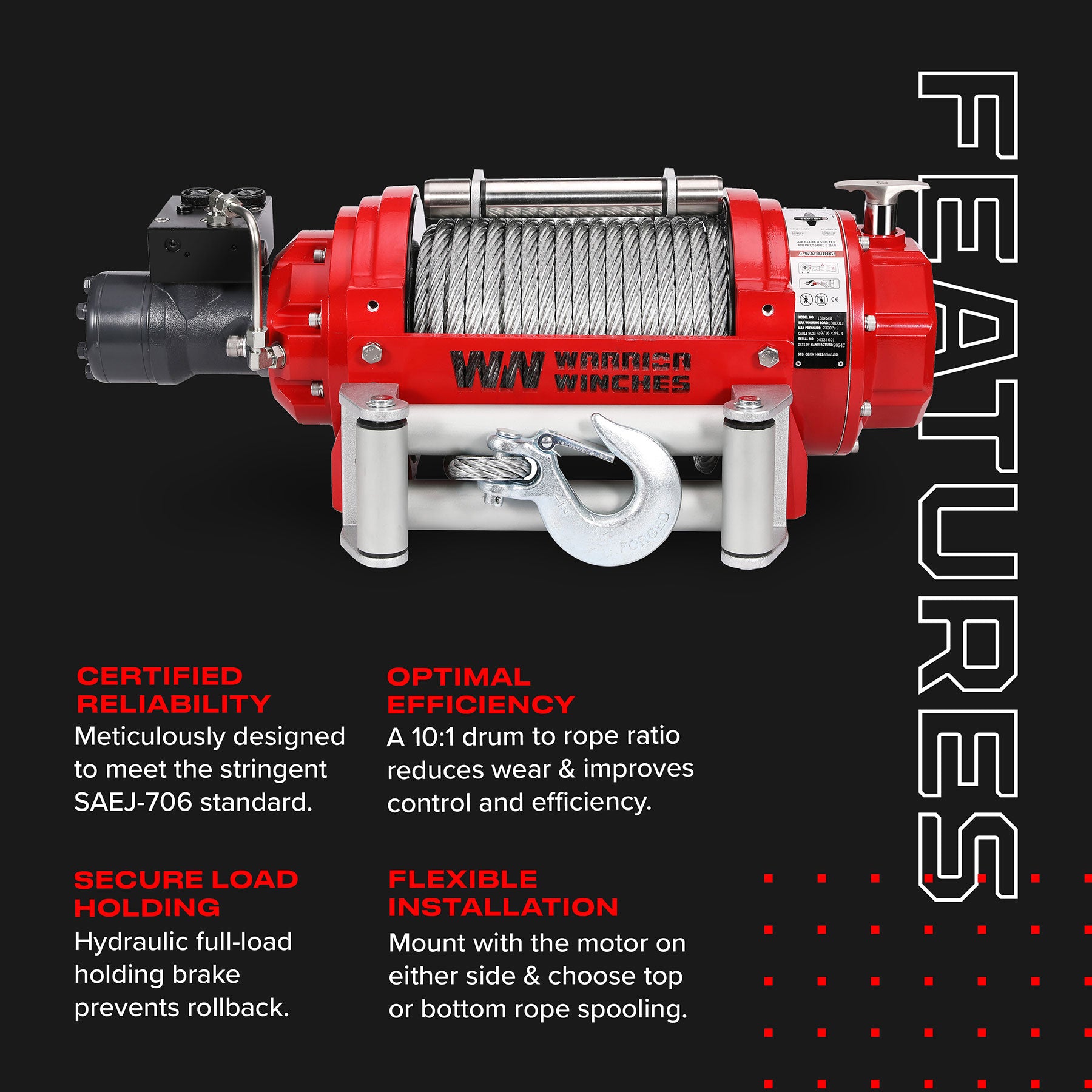

Features

  • SAEJ-706 Compliant – Meets industry standards for high safety, performance, and reliability.
  • Drum to Rope Ratio 10:1 – Reduces rope wear and enhances spooling efficiency.
  • Wire Rope 2:1 Safety Factor – Provides extra strength for safely handling heavy loads.
  • Hydraulic Full Load Holding Brake – Ensures precise load control and prevents unintended movement.
  • Rope Fixing 2.5x Rated Load & Reversible Orientation – Offers secure rope attachment and flexible mounting options for various installations.

RV Series Hydraulic Winches: Built for Power, Engineered for Reliability

When the job demands serious muscle and rock-solid dependability, the RV Series Hydraulic Winches rise to the challenge. Designed to meet the strict SAEJ-706 standard, these winches are built for heavy-duty industrial and commercial applications where failure is not an option.

With an impressive 10:1 Drum to Rope Ratio, the RV Series maximizes efficiency and ensures smooth, powerful pulling performance every time. Safety is at the core of our design, featuring a 2:1 Safety Factor on the Wire Rope and a Rope Fixing system rated at 2.5 times the load capacity, giving you unmatched security under extreme conditions.

The Hydraulic Full Load Holding Brake delivers precise handling and stability, keeping your operations safe and steady no matter the challenge.

Available in 10,000 lb to 18,000 lb capacities, the RV Series is tough enough to handle your heaviest, most demanding jobs—from intense industrial sites to high-stakes commercial projects.

If you’re looking for a hydraulic winch that doesn’t just meet industry standards but dominates them, the RV Series is the only choice.

Rated Line Pull18000 lbs
Motor TypeHydraulic
Max Flow (Gallons/Minutes)15.6 (59 L/Min)
Max Pressure (Bar)207.0 Bar
ClutchManual
Gearing17.3:1
Gearing SystemPlanetary
Braking ActionWet-type hydraulic brake
Drum Size (Diameter x Length)5 x 10.47 in
ControlsN/A
Cable MaterialSteel
Cable Size (Diameter x Length)65.62ft x 0.55 in
FairleadRoller
Mounting Pattern12.0 “×4.5 “ (303.5mm×114.3mm) 8-M12

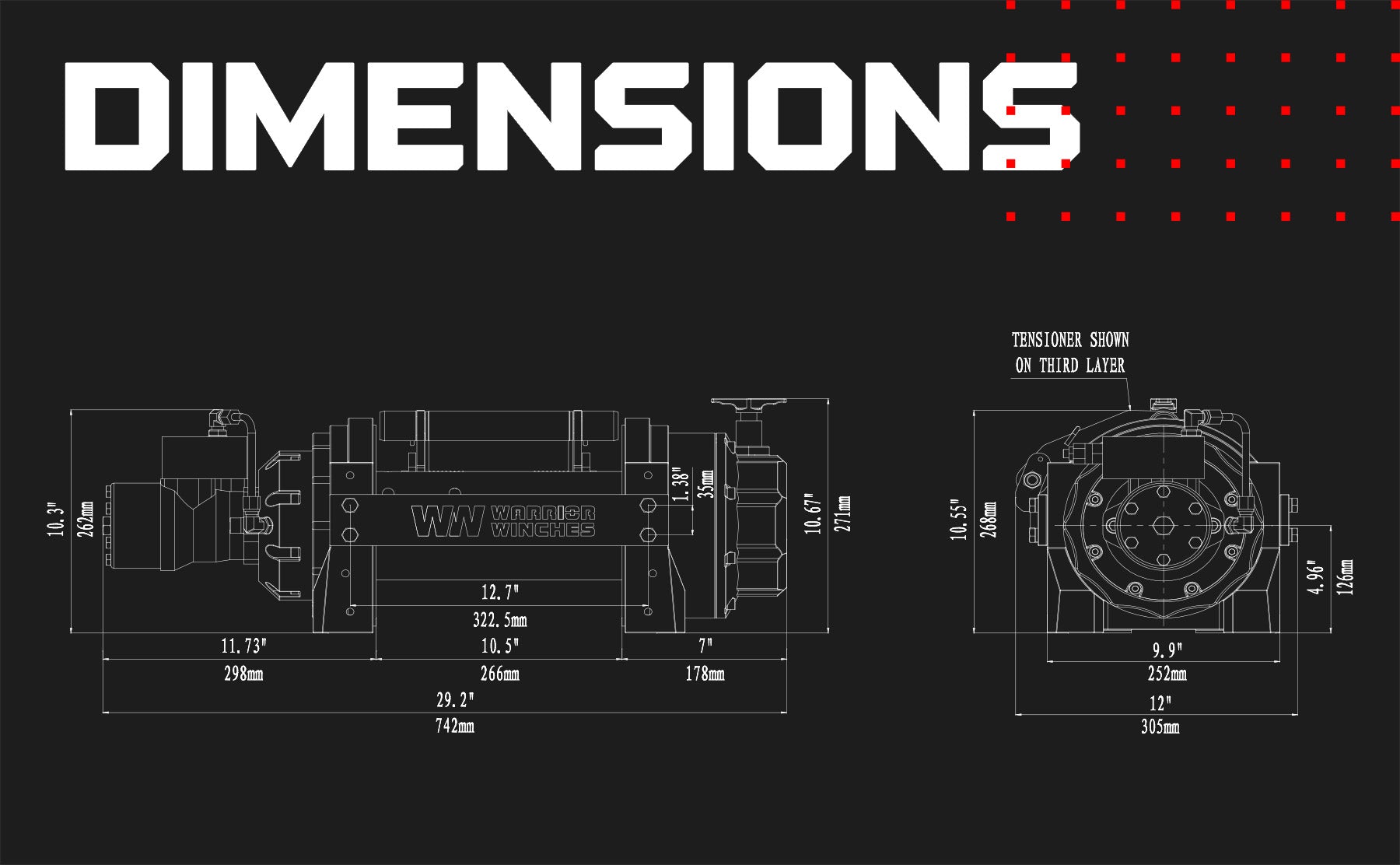

Dimensions29.21 x 11.81 x 10.91 in
Weight176 lbs
Waterproof Rating (IP)67
CertificationCE, SAEJ-706



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 18000(8165) 25.9(7.9)
2 15017(6811) 58.7(17.9)
3 12882(5843) 91.8(28.0)
Line Pull
lbs (kgs)
Line Speed
ft/min (m/min)
Flow G/min (L/min) Pressure
Mpa
0 24(7.3) 2.6(10) 2.0(290.1)
8000(3629) 17.4(5.3) 5.2(20) 5.8(841.2)
12000(5448) 13.1(4.0) 10.4(40) 9.2(1334.3)
15000(6810) 6.6(2.0) 13.2(50) 12.0(1740.5)
18000(8165) 4.6(1.4) 15.6(60) 16.0(2320.6)
  • RV Hydraulic Winch
  • Heavy Duty Roller Fairlead
  • Steel Rope
  • Heavy Duty Hook
  • Tensioner
User Manual Download
Technical Drawing Download
Brochure Download
Specifications Sheet  Download
Parts list  Download
Durability Test Download

Load Test

This winch has a 5 Year Warranty

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 5-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.
- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here



RV18 18,000lb (8.1 Ton) Industrial Hydraulic Winch - Steel Rope Parts Image

1 Hydraulic Motor HV1500100-2 Hydraulic Motor HV1500100-2 Translation missing: en.part.general.sale_price $279.99
2 Balance Valve BAL002 Balance Valve BAL002 Translation missing: en.part.general.sale_price $249.99
3 End Bearing HV1500032 End Bearing HV1500032 Translation missing: en.part.general.sale_price $171.99
4 Motor Bracket HV1500020 Motor Bracket HV1500020 Translation missing: en.part.general.sale_price $171.99
5 Cable Tensioner TEN15/18RV Cable Tensioner TEN15/18RV   View
6 Gearbox GBT18RVSHY Gearbox GBT18RVSHY Translation missing: en.part.general.sale_price $1,179.99
7 Clutch Assembly HV1000500 Clutch Assembly HV1000500   View
8 Roller Fairlead RF15/18RV Roller Fairlead RF15/18RV Translation missing: en.part.general.sale_price $115.63
9 9/16 9/16" x 91.8' Steel Cable with Hook Translation missing: en.part.general.sale_price $346.99
10 Winch Rope Hook GHK005T-CAD Winch Rope Hook GHK005T-CAD Translation missing: en.part.general.sale_price $89.99

Download complete parts list
