20JR02H-CAD

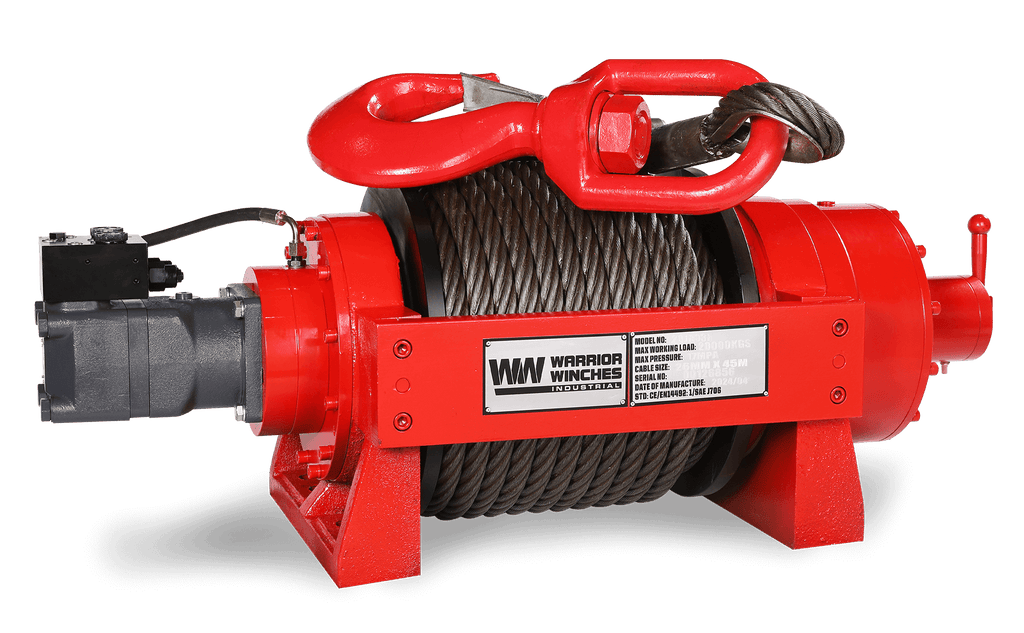

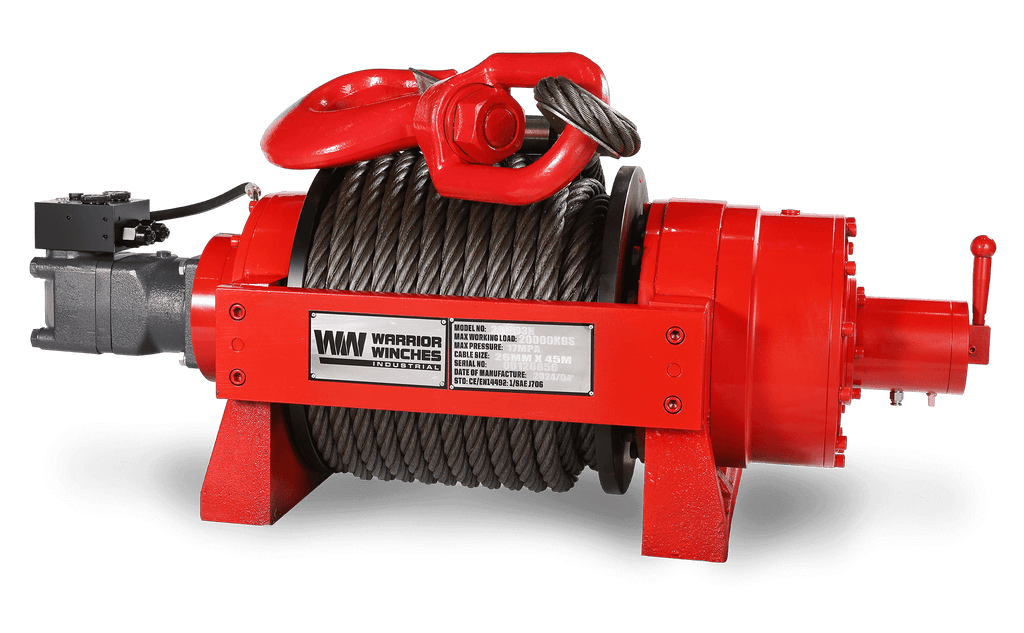

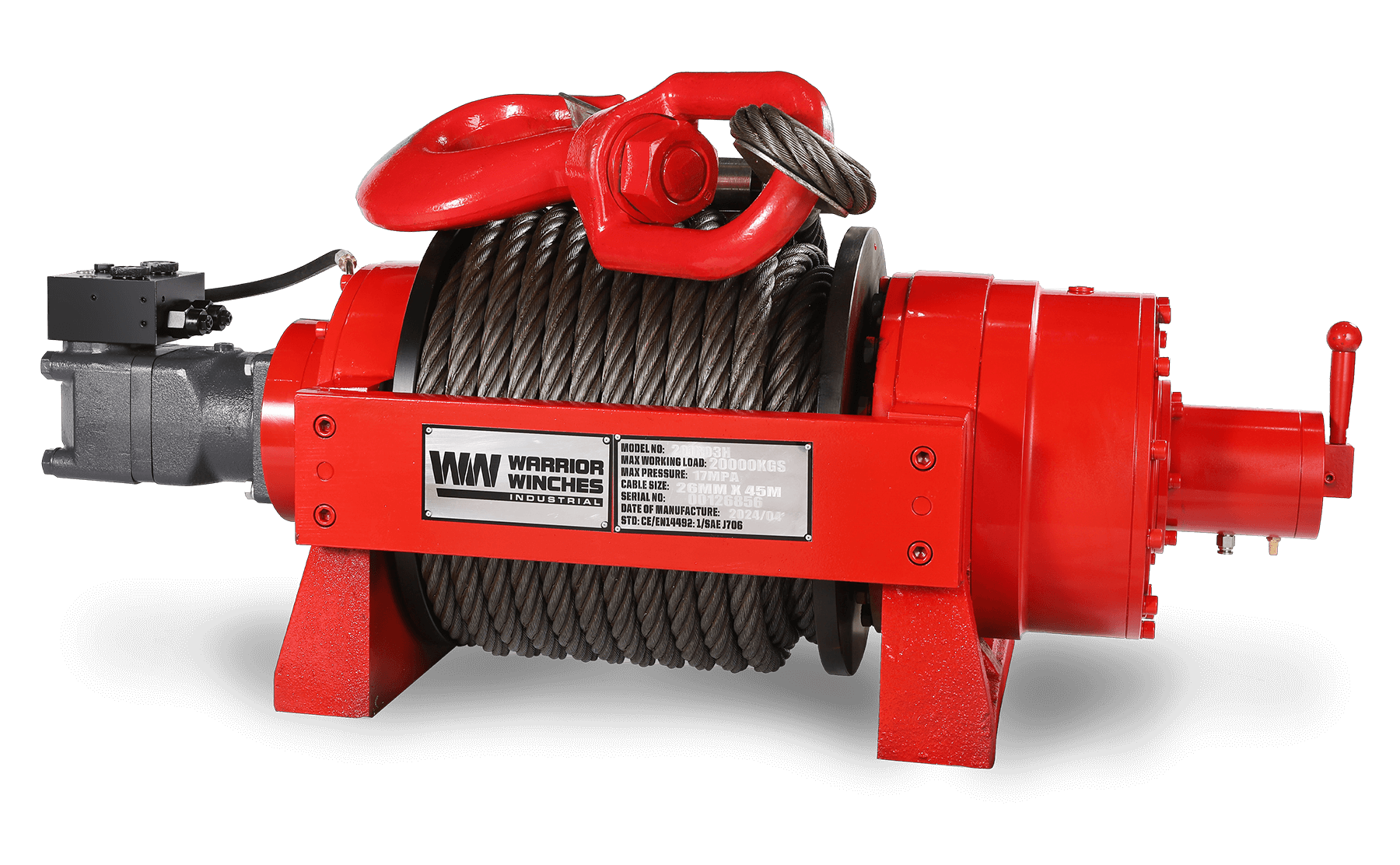

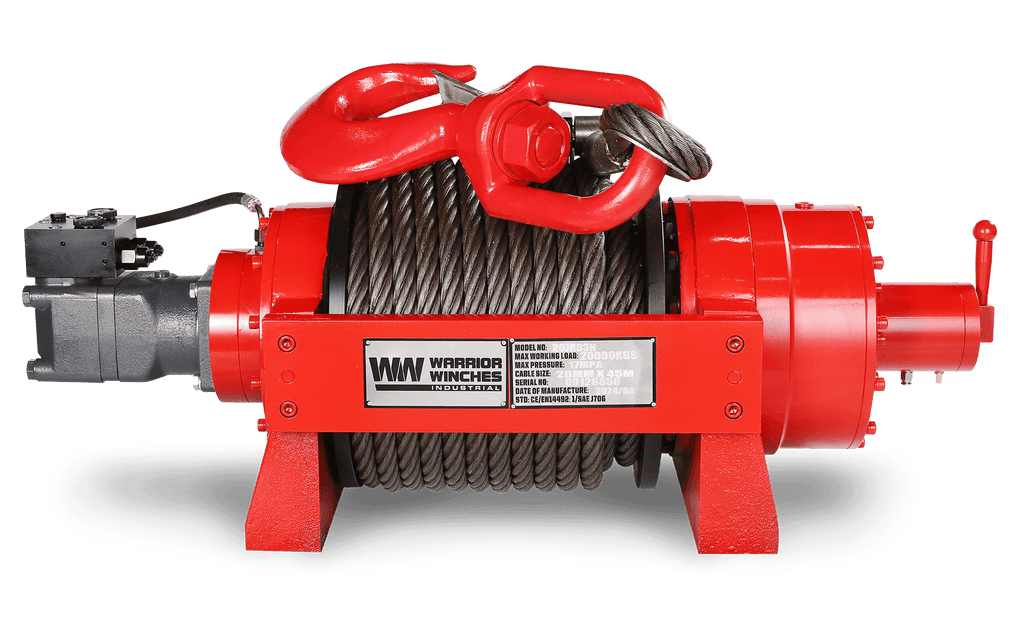

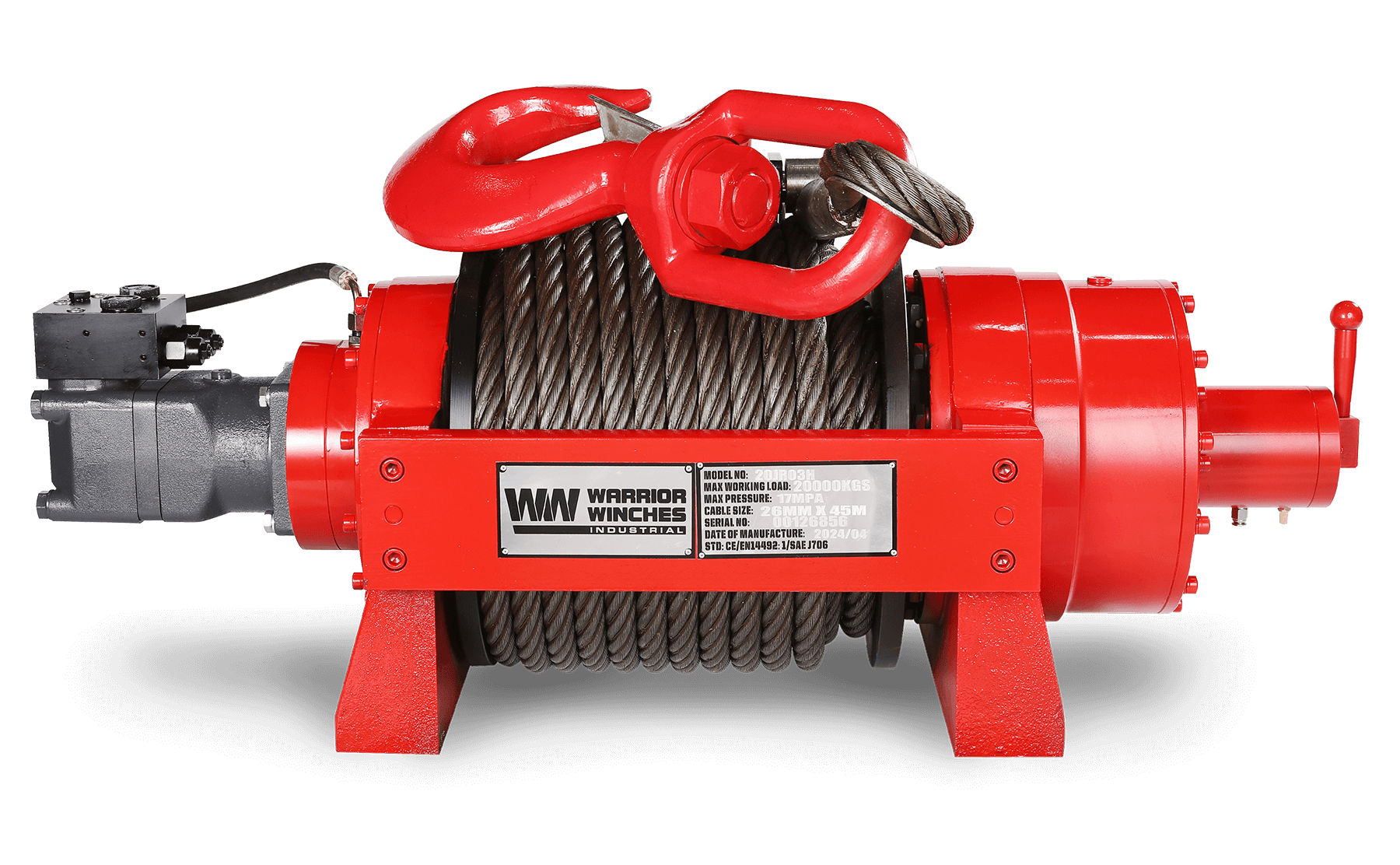

JR20 44,000lb (20 Ton) Industrial Hydraulic Winch - Steel Rope

Sale price$13,431.99
Delivery in 2-7 days

Features

  • Heavy-Duty Planetary Gearing & High-Torque Motor: Provides efficient torque transfer and reliable performance for demanding tasks.
  • Multi-Disc Friction Brake & Balance Valve: Ensures precise load control, smooth lowering, and enhanced safety during operation.
  • Air and Manual Clutch Operation: Offers flexibility for different operational environments and ease of use with both air-powered and manual options.
  • SAEJ-706 Standard Compliance: Meets industry standards for durability, performance, and safety, ensuring reliable and safe operation.
  • Reversible Orientation: Allows flexible installation with motor on the left or right and rope spooling from top or bottom, making it adaptable to various mounting configurations.

JR Series Hydraulic Winches: Compact, Powerful, Unstoppable

When the job demands serious strength and a compact design, the JR Series Hydraulic Winches deliver. Built for tough, real-world performance, these winches are engineered to handle the most demanding tasks with unmatched strength and reliability.

With capacities ranging from 29,000 to 66,000 lbs the JR Series is designed to tackle heavy loads with ease while maintaining a compact, efficient footprint. Every unit is designed to meet the rigorous SAEJ-706 standard, ensuring top-tier durability, precision, and safety in industrial and commercial applications.

If you need maximum power without wasting an inch of space, the JR Series is the solution. Built tough. Battle-tested. Ready to work.

Rated Line Pull44000 lbs
Motor TypeHydraulic Sauer Danfoss OMT 310
Max Flow (Gallons/Minutes)31.7 (120 L/Min)
Max Pressure (Bar)241.0 Bar
ClutchAir Clutch
Gearing36:1
Gearing SystemPlanetary
Braking ActionWet-type hydraulic brake
Drum Size (Diameter x Length)8.27 x 13.39 in
ControlsN/A
Cable MaterialSteel
Cable Size (Diameter x Length)147.64ft x 1.02 in
FairleadN/A
Mounting Pattern20.94"×6.3"×11.02" (532mm×160mm×280mm) 8-M24

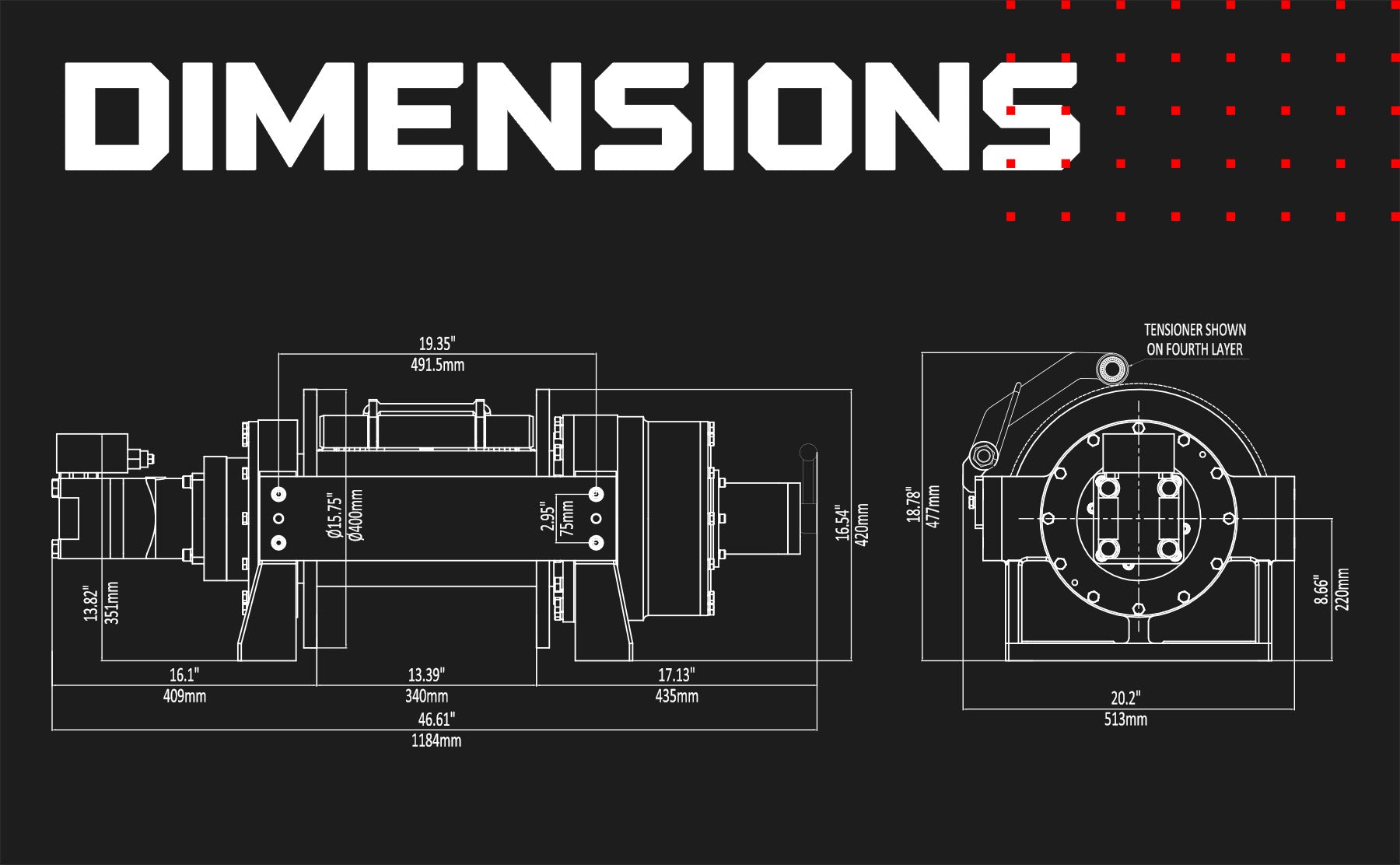

Dimensions46.61 x 20.2 x 16.54 in
Weight1135 lbs
Waterproof Rating (IP)68
CertificationCE, SAEJ-706



Line pull lbs (kgs) Pressure Mpa(Psi)
0 7.5 (1087.8)
22000(10000) 10 (1045.4)
33000(15000) 15 (2175.6)
44000(20000) 20 (2900.8)
Flow G/min (L/min) Line speed ft/min(m/min)
5.3 (20) 3.3 (1.0)
13.2 (50) 8.9 (2.7)
22.5 (85) 15.4 (4.7)
31.7 (120) 23.0 (7.0)
Layer of wire rope Rated line pull lbs(kgs) Total rope on drum ft (m)
1 44000 (20000) 28.9 (8.8)
2 36128 (16388) 64 (19.5)
3 30600 (13882) 105 (32.0)
4 26543 (12040) 147 (45.0)
  • JR Hydraulic Winch
  • Steel Rope and Heavy Duty Hook
  • Manual/Air Clutch
  • Balance Valve
  • Tensioner
  • Operating Manual
User Manual Download
Brochure Download
Specifications Sheet  Download
Parts list  Download
Durability Test Download

Load Test

This winch has a 5 Year Warranty

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 5-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.
- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here



JR20 44,000lb (20 Ton) Industrial Hydraulic Winch - Steel Rope Parts Image

1 Balance Valve 20JR0004 Balance Valve 20JR0004   View
2 Motor 20JR0100 Motor 20JR0100 Translation missing: en.part.general.sale_price $809.99
3 Motor Bearing 20JR0018 Motor Bearing 20JR0018 Translation missing: en.part.general.sale_price $734.99
4 1.02 1.02" × 147' Steel Cable with Hook Translation missing: en.part.general.sale_price $420.99
5 End Bearing 20JR0033 End Bearing 20JR0033 Translation missing: en.part.general.sale_price $927.99
6 Clutch 20JR0600 Clutch 20JR0600   View
7 Gearbox GBT20JR Gearbox GBT20JR Translation missing: en.part.general.sale_price $5,304.99
8 Cable Tensioner 20JR0700 Cable Tensioner 20JR0700   View
9 Hook HK20JR Hook HK20JR   View

Download complete parts list
