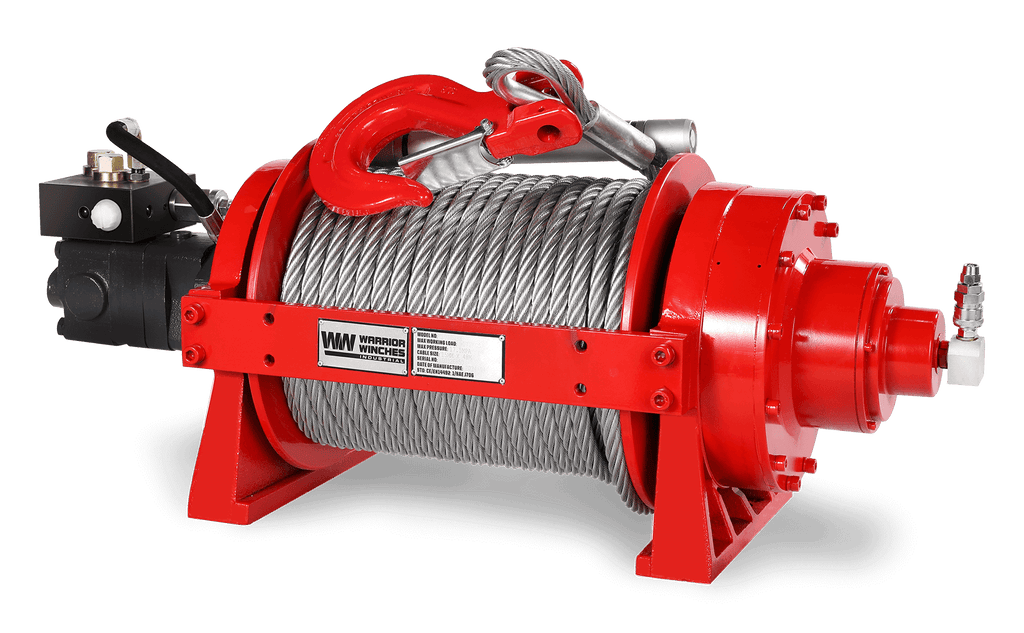

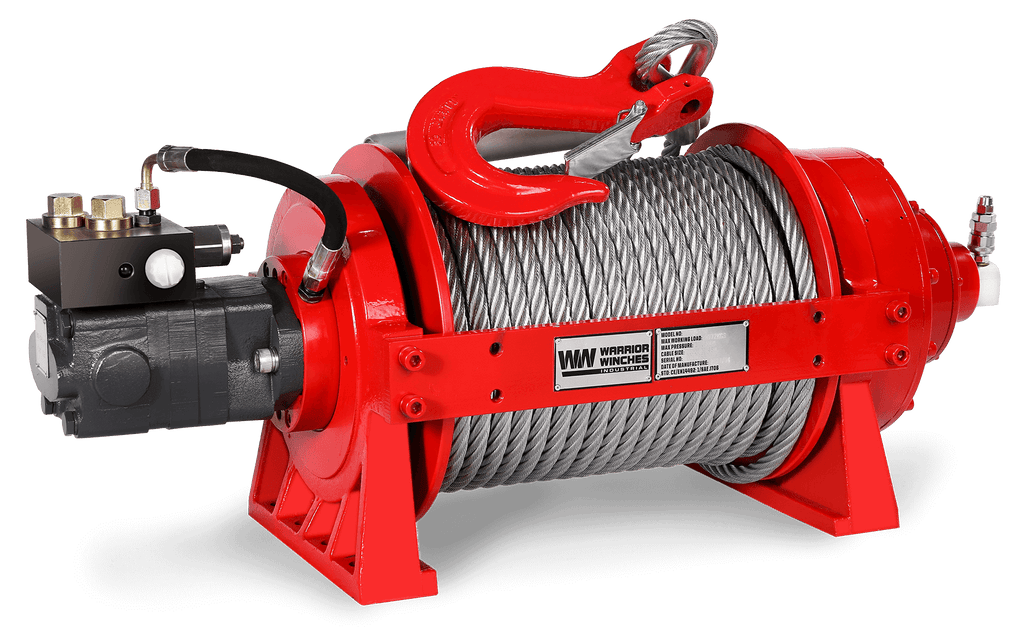

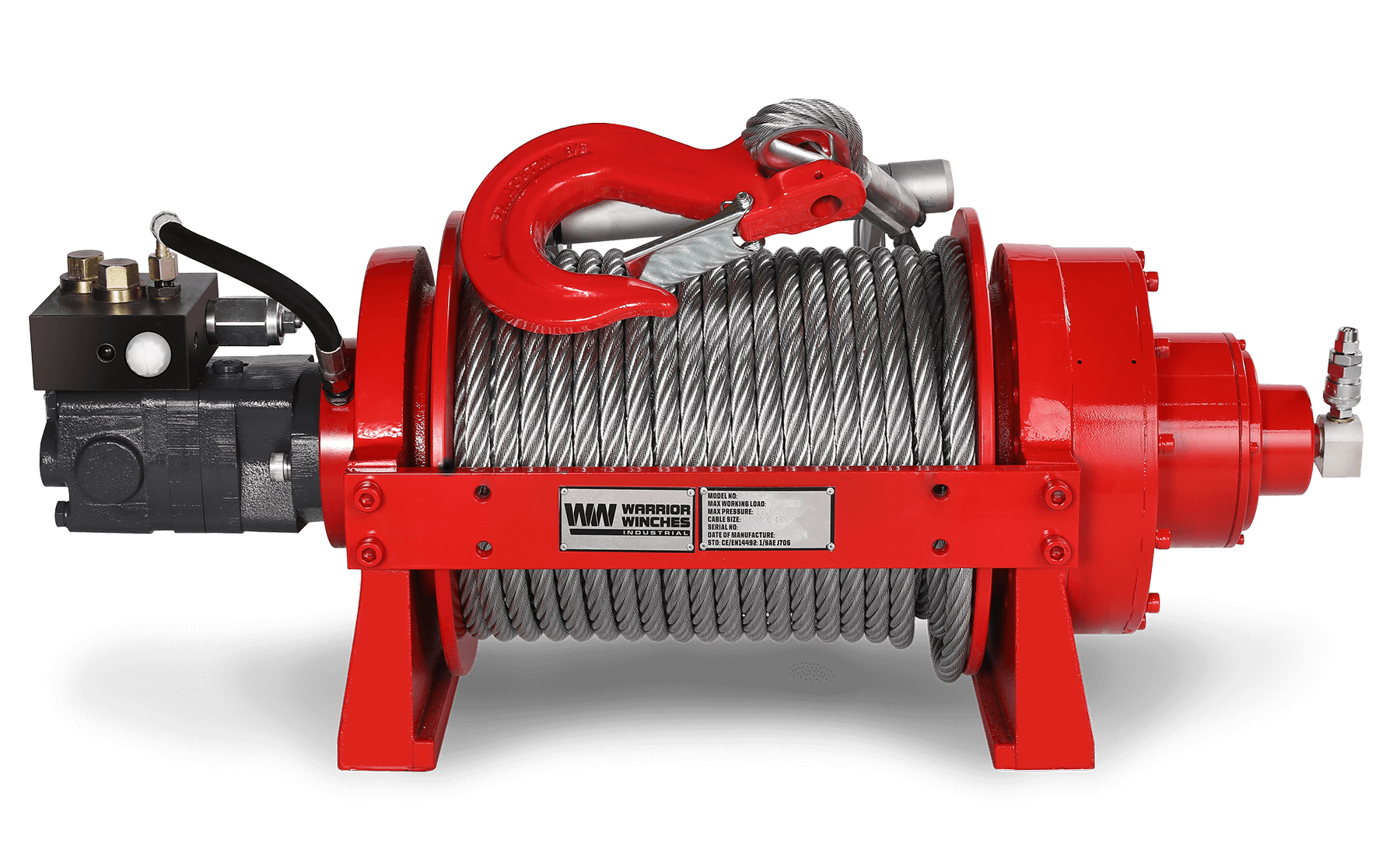

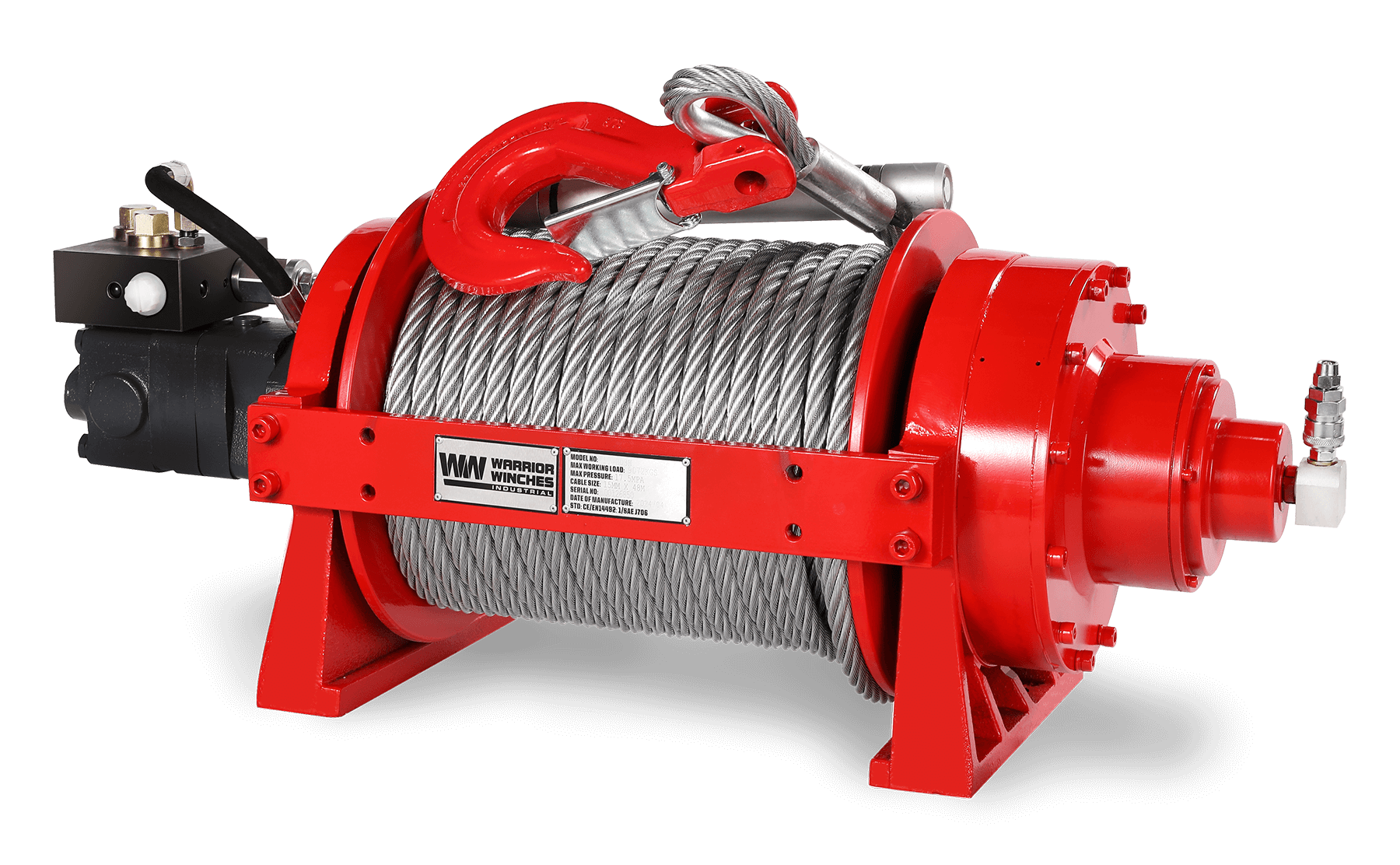

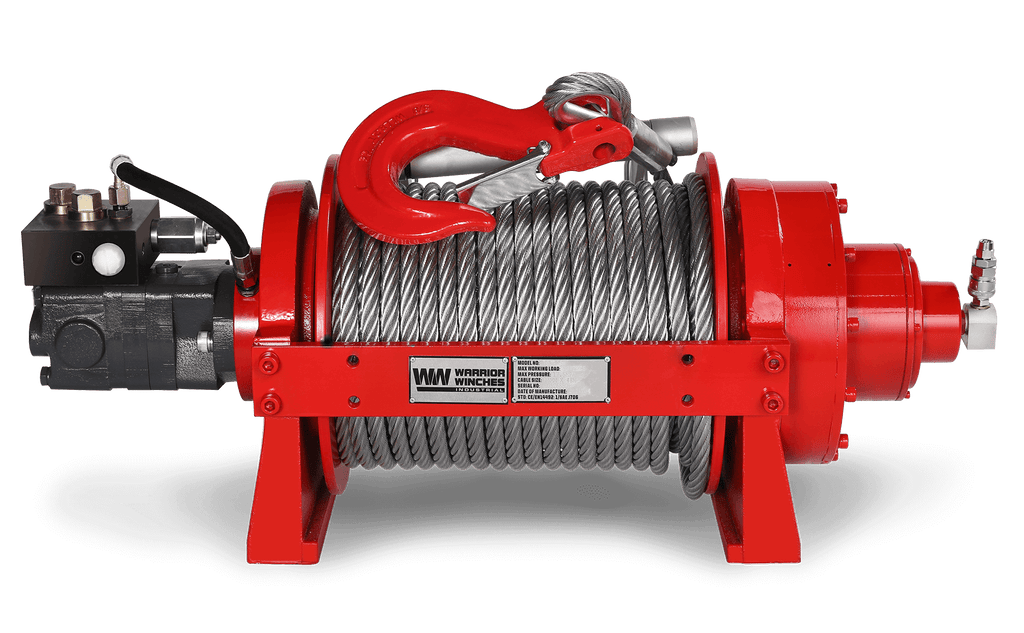

JR10 22,000lb (10 Ton) Industrial Hydraulic Winch - Steel Rope

 0 Reviews |  Ask a Question SKU: 10JR03H-CAD

Price:
Sale price$5,499.99
Sold out
You may also like:

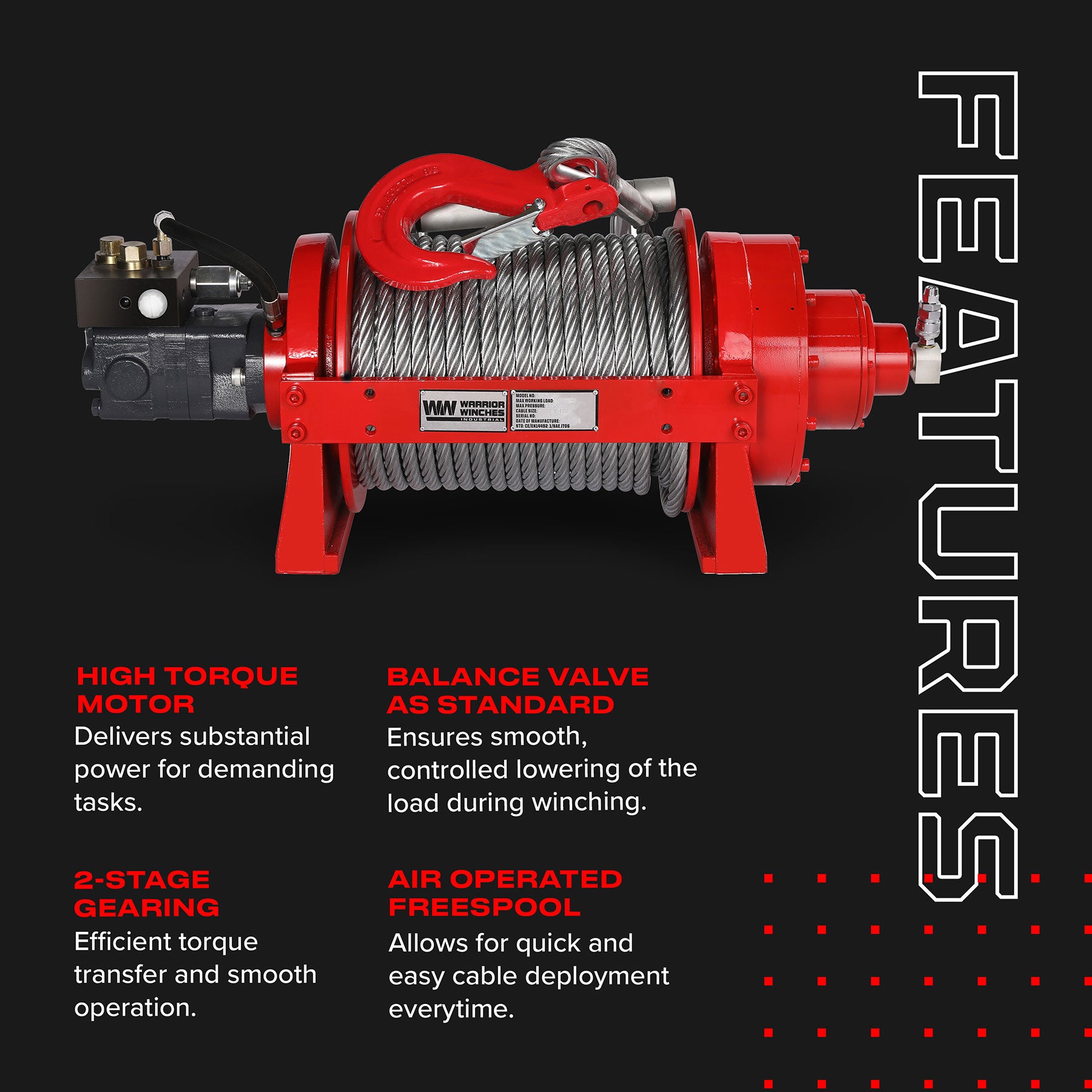

Features

  • Rugged High Torque Motor: Designed to handle heavy-duty tasks, ensuring consistent performance under load
  • 2-Stage Planetary Gearing: High-precision gearing system for efficient torque transfer and smooth operation.
  • Air Operated Freespool: Allows for quick and easy cable deployment, enhancing operational efficiency.
  • Heavy Duty Steel Cast Frame: Constructed to withstand the rigors of industrial environments, ensuring durability and longevity.
  • Complete with Balance Valve: Ensures smooth and controlled lowering of the load, enhancing safety during operations.

JR Series Hydraulic Winches: Compact, Powerful, Unstoppable

When the job demands serious strength and a compact design, the JR Series Hydraulic Winches deliver. Built for tough, real-world performance, these winches are engineered to handle the most demanding tasks with unmatched strength and reliability.

With capacities ranging from 29,000 to 66,000 lbs the JR Series is designed to tackle heavy loads with ease while maintaining a compact, efficient footprint. Every unit is designed to meet the rigorous SAEJ-706 standard, ensuring top-tier durability, precision, and safety in industrial and commercial applications.

If you need maximum power without wasting an inch of space, the JR Series is the solution. Built tough. Battle-tested. Ready to work.

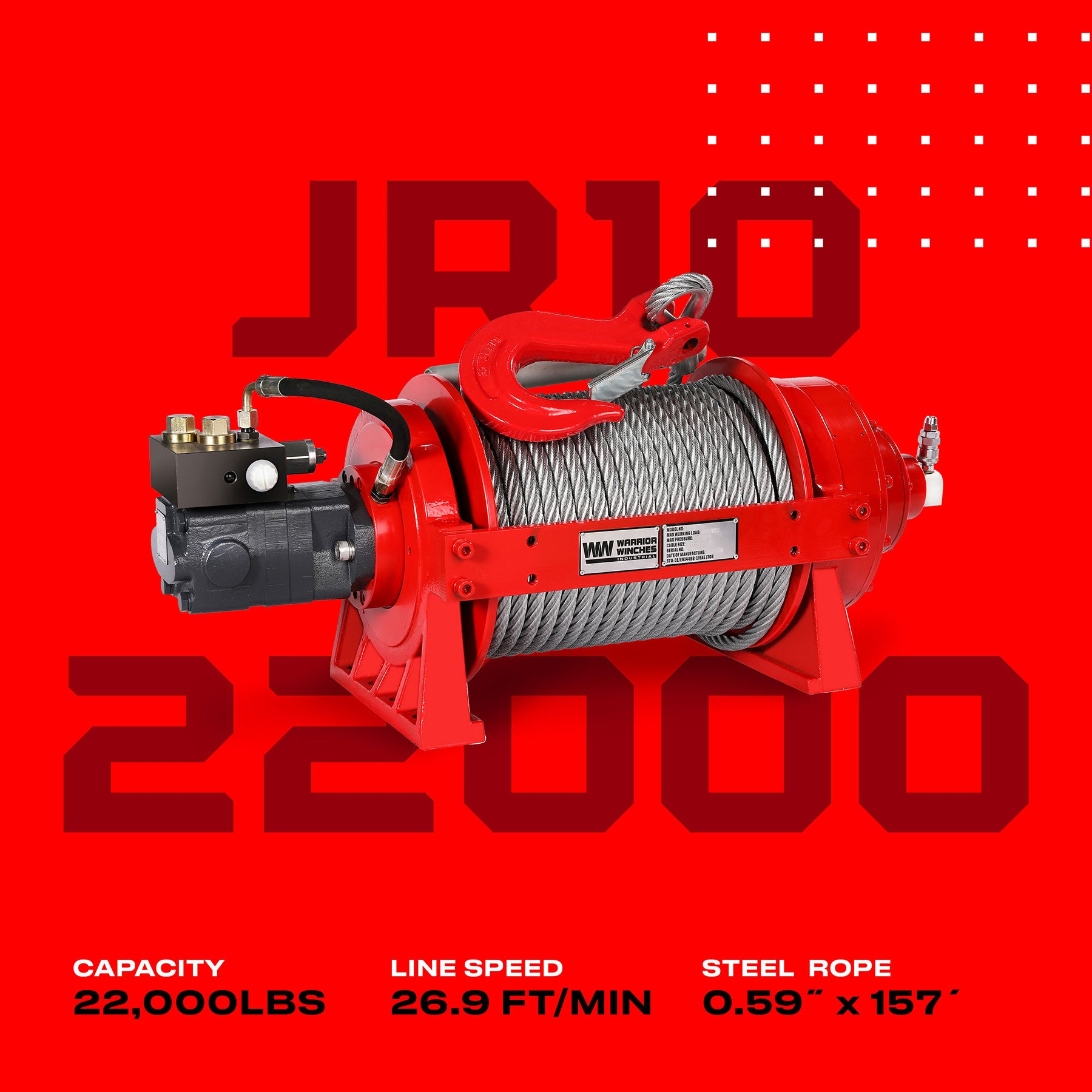

Rated Line Pull22000 lbs
Motor TypeHydraulic Sauer Danfoss OMS 100
Max Flow (Gallons/Minutes)19.8 (75 L/min)
Max Pressure (Bar)275.0 Bar
ClutchAir Clutch
Gearing39:1
Gearing SystemPlanetary
Braking ActionWet-type hydraulic brake
Drum Size (Diameter x Length)5.43 x 12.44 in
ControlsN/A
Cable MaterialSteel
Cable Size (Diameter x Length)157.49ft x 0.59 in
FairleadN/A

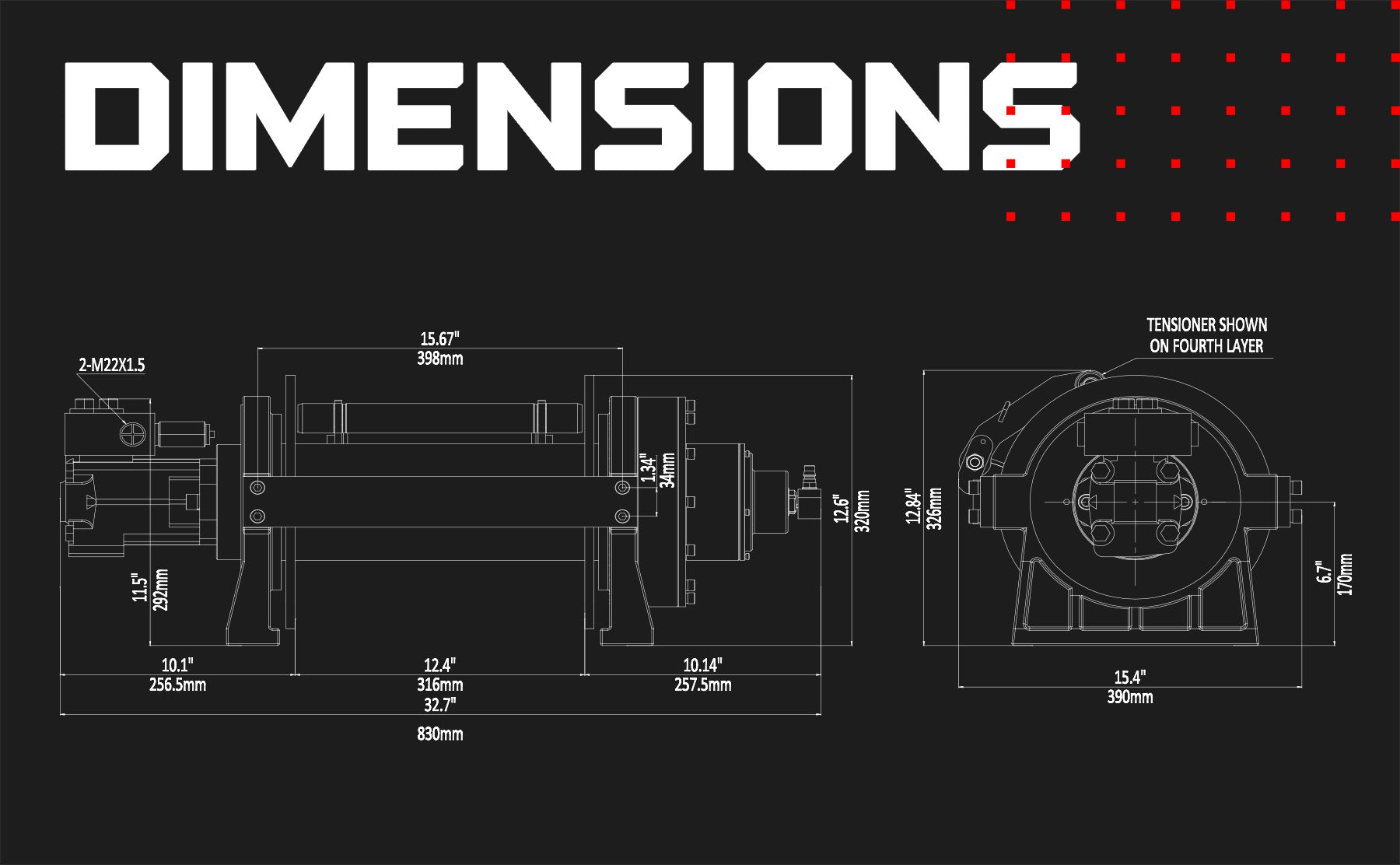

Mounting Pattern17.0 “×2.5 “ ×7.6 “ (431mm×64mm×192mm)
Dimensions32.68 x 15.35 x 12.6 in
Weight430 lbs
Waterproof Rating (IP)68
CertificationCE, SAEJ-706



Layer of Rope/Cable Line Pull: lbs(kgs)
1 22000(9979)
2 18393(8343)
3 15802(7168)
4 13852(6283)
Line Pull
lbs (kgs)
Line Speed
ft/min (m/min)
Flow G/min (L/min) Pressure Mpa(Psi)
0 5.9(1.8) 4.0(15) 2.5(362.6)
4000 (1814) 11.8(3.6) 7.9(30) 4.2(609.1)
8000 (3629) 19.7(6.0) 13.2(50) 8.5(1232.8)
15000 (6804) 23.6(7.2) 15.9(60) 14.0(2030.5)
22000(9979) 26.9(8.2) 19.9(75) 20(2900.7)
  • JR Hydraulic Winch
  • Steel Winch Rope
  • 22 Ton Hook
  • Balance Valve
  • Tensioner
User Manual Download
Brochure Download
Specifications Sheet  Download
Parts list  Download

Load Test

This winch has a 5 Year Warranty

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 5-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.
- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here



JR10 22,000lb (10 Ton) Industrial Hydraulic Winch - Steel Rope Parts Image

1 Balanced Valve Assembly C220NH0900 Balanced Valve Assembly C220NH0900 Translation missing: en.part.general.sale_price $490.99
2 Hydraulic Motor C220NH0100 Hydraulic Motor C220NH0100 Translation missing: en.part.general.sale_price $429.99
3 Motor Bearing C220NH0010 Motor Bearing C220NH0010 Translation missing: en.part.general.sale_price $323.99
4 End Bearing C220NH0018 End Bearing C220NH0018 Translation missing: en.part.general.sale_price $356.99
5 Clutch Assembly C220NH0700 Clutch Assembly C220NH0700 Translation missing: en.part.general.sale_price $235.99
6 Gearbox GBT10JP Gearbox GBT10JP Translation missing: en.part.general.sale_price $3,908.99
7 19/32”× 157‘ Steel Cable with Hook 19/32”× 157‘ Steel Cable with Hook   View
8 Cable Tensioner C220NH1100 Cable Tensioner C220NH1100 Translation missing: en.part.general.sale_price $148.00
9 Winch Rope Hook HK-5/8'' Winch Rope Hook HK-5/8''   View
10 Roller Fairlead - 10JP Winch Roller Fairlead - 10JP Winch   View

Download complete parts list
