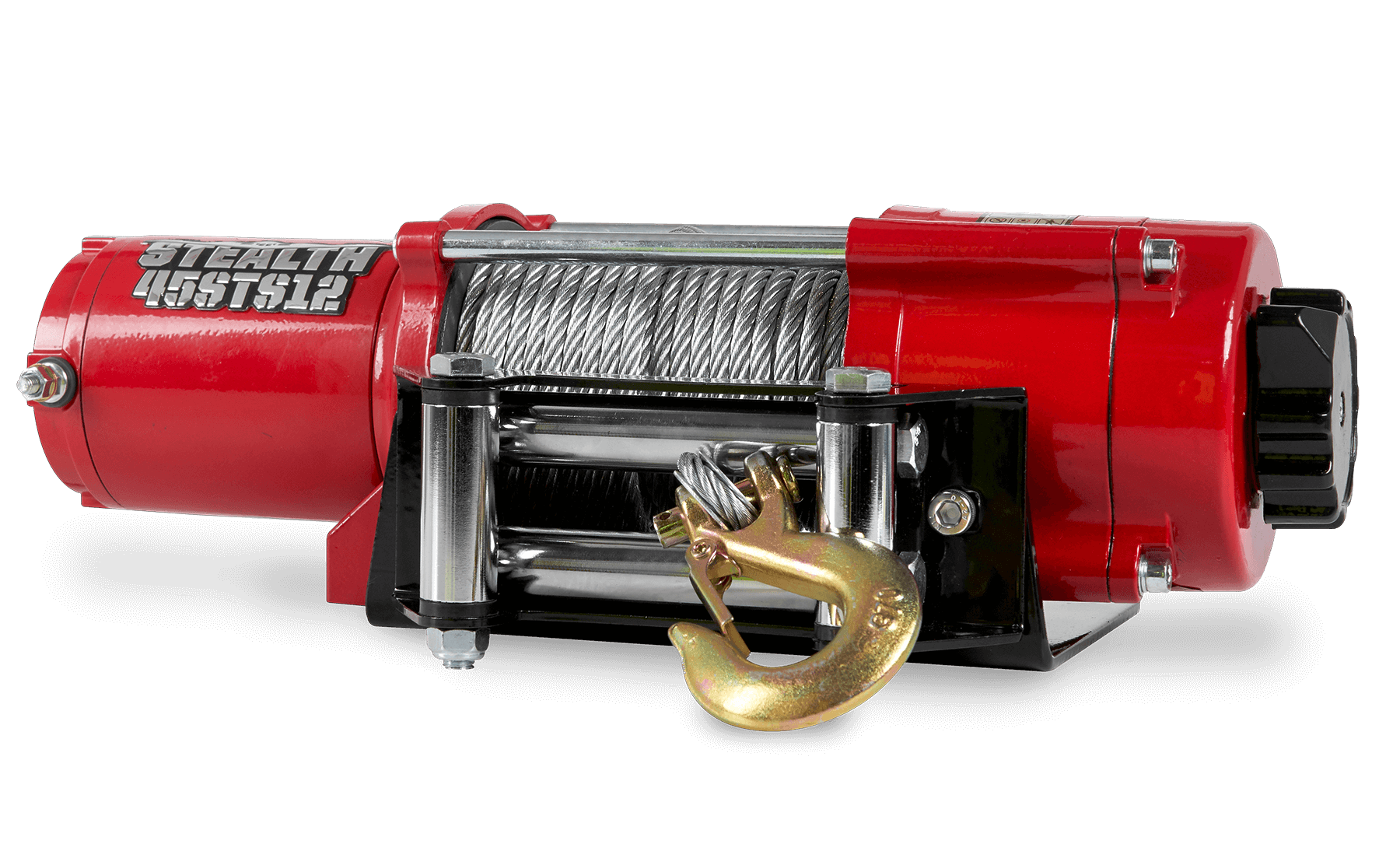

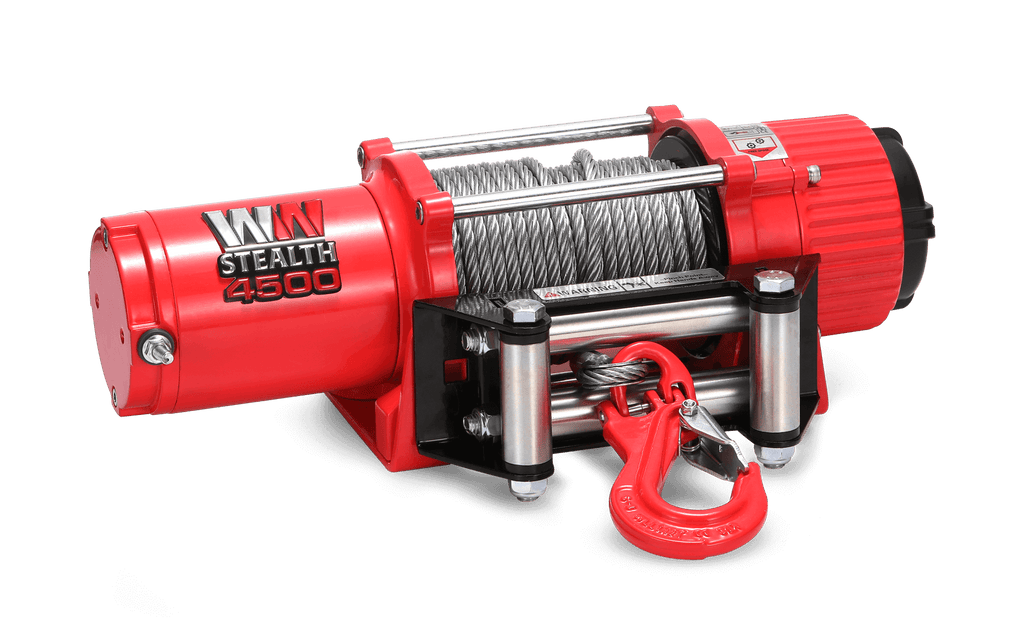

Stealth 4,500lb 12v Electric Winch - ATV

 0 Reviews |    Ask a Question
SKU: 45STS12-CAD

Voltage: 12v
Rope: Steel Rope
Price:
Sale price$169.99
In stock (Delivery in 2-7 days)

Or buy online from our approved partners:
Amazon Logo

Features

  • SUPER STRONG – Pulling power of 4500lb (2000kg)!
  • HARDWEARING – Built with full steel gearing and a sealed solenoid for durability.
  • SYNTHETIC OR STEEL ROPE – With your choice of a synthetic or steel rope.

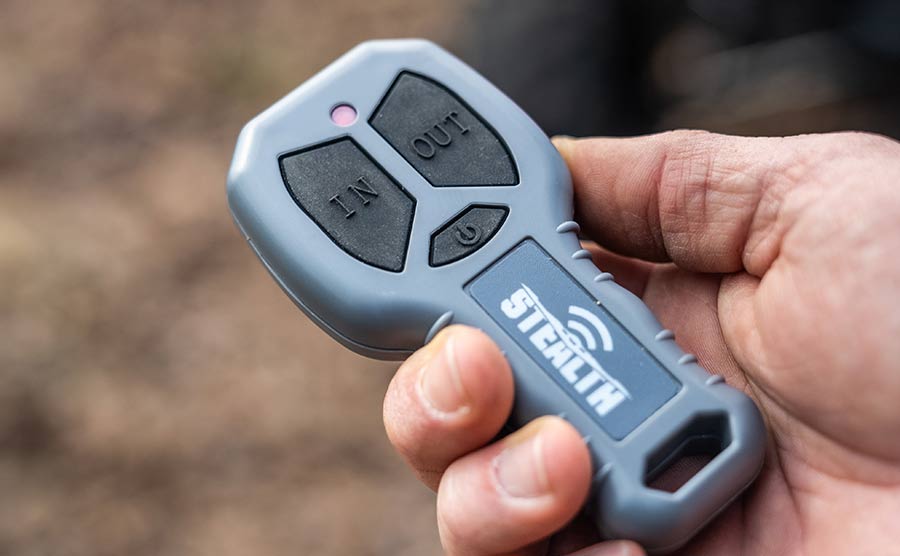

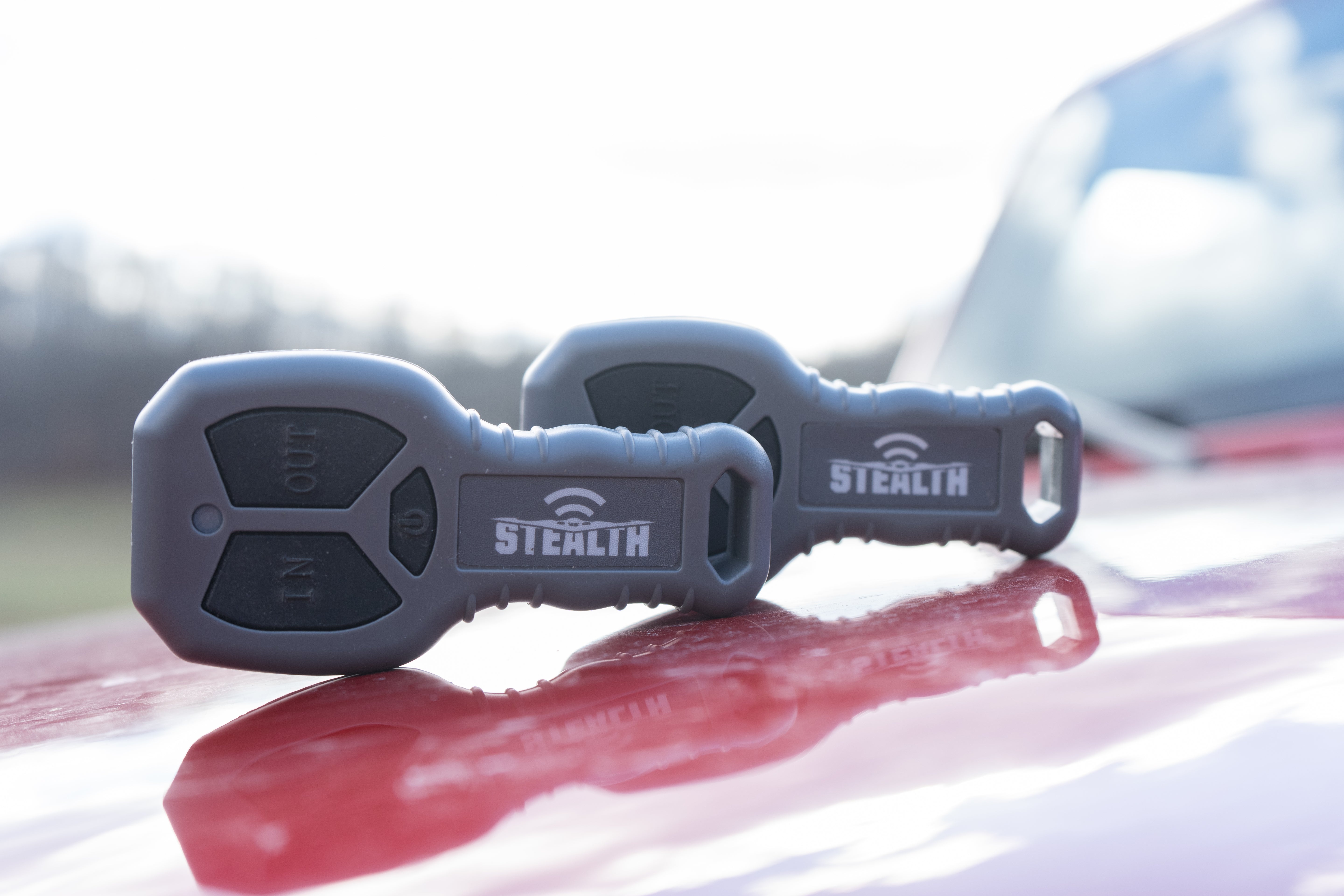

  • WIRELESS CONTROLS – Includes two wireless remote controls.
  • MOUNTING PLATE INCLUDED – Allows a more permanent instalment.

The Stealth 4500lb winch gives you all the power in a smaller package, ideas for a broader range of uses such as utility, ATV, boat trailers and beyond.

Designed for long-lasting power, the hard-wearing designed is reinforced with a sealed solenoid, full steel gearing and features a powerful coper wound motor. Including two wireless remotes, the heavy-duty design is matched by smart additions to get the job done easily.

With a line capacity of 4500lb (2041kg), the line pull of 4.6ft per minute at full load will have the work done in no time.

Rated Line Pull 4500 lbs (2041 kg)
Motor 12v : 1.4hp
Cable - Dia x L Steel: 0.23" x 47.5ft (6mm x 14.5m)
Synthetic: 0.22" x 49.2ft (5.6mm x 15m)

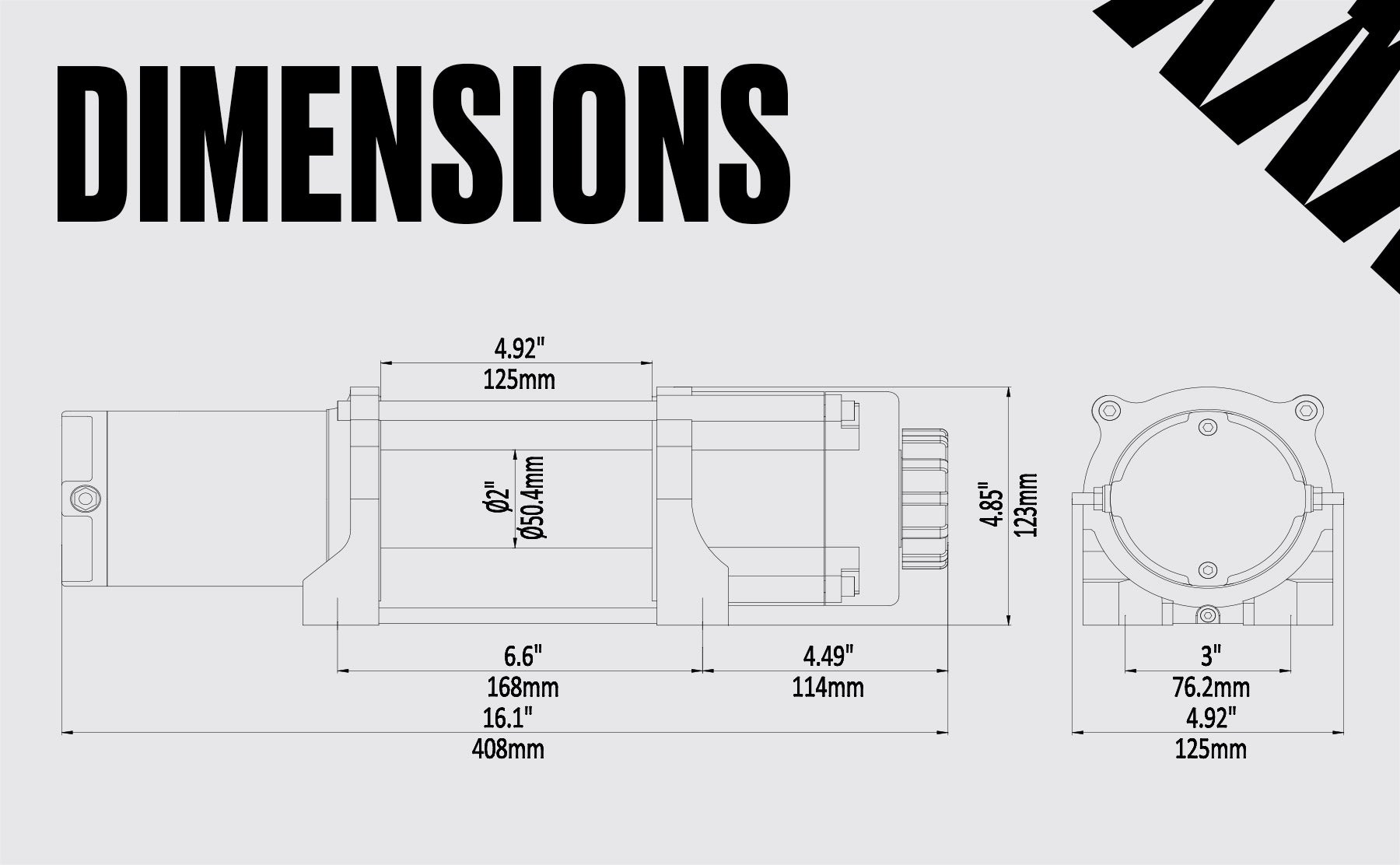

Dimensions 16 x 4.9 x 6.6" (408 x 125 x 168mm)
Mounting Pattern 6.6 x 3" (168 x 76.2mm)
Weight kg Steel: 35.2 lbs (16 kg)
Synthetic: 29.7lbs (13.5 kg)



Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 12.8 (3.9) 28
4500 (2041) 4.6 (1.4) 220

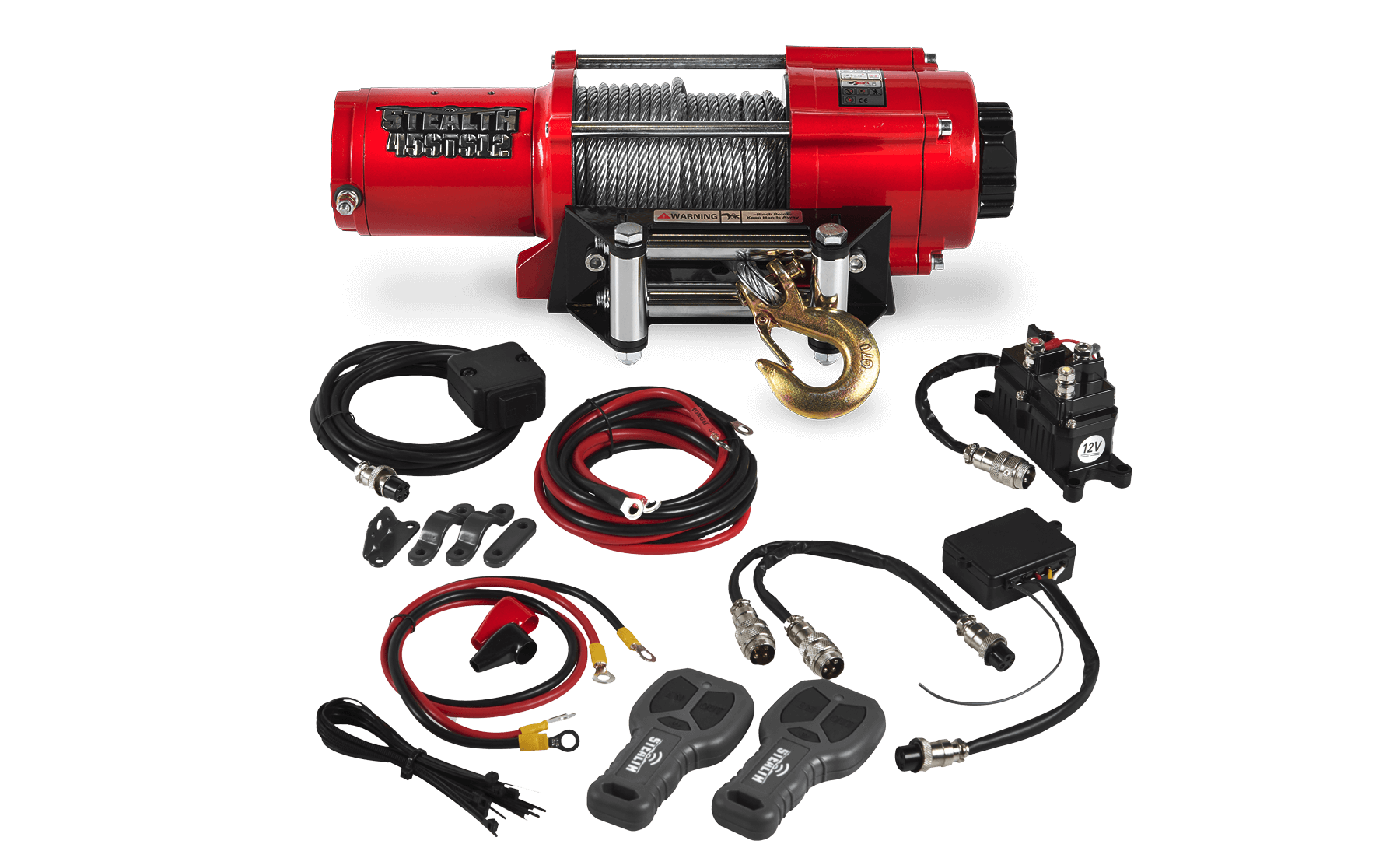

  • Stealth Winch
  • Wired Hand Control
  • Wireless Control: Included - with TWO Handsets
  • 51ft (15.5m) Steel Rope or 49ft (15m) Synthetic Rope
  • Mounting Plate: Included for flat mount applications
  • Fairlead: 4-Way Roller Fairlead OR Hawse Fairlead (for Synthetic Rope)
  • Mounting Bolts: Included for Standard installations
  • Heavy Duty Battery Cables (May need extending dependant on application)
  • Instruction Manual
User Manual Download
Specifications Sheet ( 45STS12-CAD ) Download
Specifications Sheet ( 45STA12-CAD ) Download
Parts list ( 45STS12-CAD ) Download
Parts list ( 45STA12-CAD ) Download

1 Year Warranty

BPE Solutions North America are the sole distributors of Stealth Winches

BPE Solutions North America (“seller” or BPE) warrants to the original retail buyer only (“Buyer”) that any mechanical component of this genuine winch (“product(s)”) are free of defects in material and workmanship for one (1) year from date of purchase.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of one (1) year from the original purchase provable date of purchase.

Any product BPE Solutions North America determines to be defective will be repaired or replaced at our (BPE Solutions North America) sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and(or) labour for repairs not covered by this Warranty. Non warrantable returns will be charged at BPE Solutions North America standard rates. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied. All product(s) are be covered by the standard One (1) year warranty.

If in the event your product becomes faulty within your warranty period

To obtain service or repair under this warranty, the Buyer shall mail, ship or otherwise deliver to the manufacturers address, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt or BPE Solutions North America can arrange a suitable collection method (Charges apply).

Warranty Exclusions

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective part(s). This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation, maintenance or subjecting the product to loads in excess of the loads written/listed in the owner’s manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the manufacturer, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) failure to correctly use the item according to the owner’s manual (7) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Other Exclusions

This Warranty does not cover steel cables, synthetic ropes, fairleads, wireless remotes or any exterior finishes outside thirty (30) Days from purchase.

BPE Solutions North America shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use, down time or damage to other person(s) equipment.

BPE Solutions North America reserves the right to change the Product design without notice. BPE Solutions North America reserves the right to replace any part or whole unit with a newer design of the same function.
